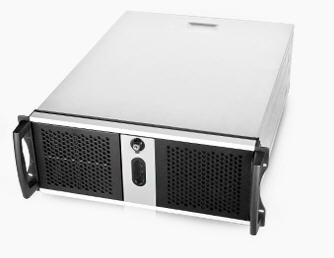

Chenbro RM42300 Black 4U Rackmount Case, No Psu, 2x USB 2.0, External 3x 5.25",Internal 4x 3.5", 1x Slim Odd Slot, 1x 120mm Fan RM42300H02
SKU
381322
Brand
MPN
RM42300H02
Warranty
Standard Manufacturer's Warranty
$404.00
Buy Now And Earn 404 Reward Points!
4U 17.5" Compact Industrial Server Chassis
With entire isolated anti-vibration cage, dust-proof filter, and compact size make it perfect for space-sensitive industrial applications.
Features & Benefits
-Supports M/B up to 12” x 9.6”
-Available for rackmount and stand-alone installation
-Dedicated 80 mm fan for HDD cooling
-Truly isolated anti-vibration design on internal HDD and drive cages
-Card retainer to hold low profile and full height add-on cards
-Front 120mm fan with filter for add-on card cooling
Specification
MB Form Factor
ATX (12” x 9.6”)
Dimension (D x W x H)
465.2 x 430.0 x 176.0 (mm)
Drive Bay
External 3.5"：1
External 5.25"：3
Internal 3.5"：4
Slim ODD：1
PSU Form Factor
PS/2 single
Indicator
1 x Power Status
2 x LAN Activity
1 x HDD Status
Front Control
1 x Power On/Off
1 x System Reset
2 x USB2.0/USB3.0 (Option)
Cooling Fan
Front: 1 x 120 mm (T=25 mm), PWM,
Rear: 2 x 80 mm (T=25 mm) (Option)
System Security
Intrusion Switch (Option)
Key Lock on Front Door
Expansion Slot Opening
7 x Full Height
Net Weight
9.5 kg/20.93 lb
Gross Weight
12.3 kg/27.09 lb
With entire isolated anti-vibration cage, dust-proof filter, and compact size make it perfect for space-sensitive industrial applications.
Features & Benefits
-Supports M/B up to 12” x 9.6”
-Available for rackmount and stand-alone installation
-Dedicated 80 mm fan for HDD cooling
-Truly isolated anti-vibration design on internal HDD and drive cages
-Card retainer to hold low profile and full height add-on cards
-Front 120mm fan with filter for add-on card cooling
Specification
MB Form Factor
ATX (12” x 9.6”)
Dimension (D x W x H)
465.2 x 430.0 x 176.0 (mm)
Drive Bay
External 3.5"：1
External 5.25"：3
Internal 3.5"：4
Slim ODD：1
PSU Form Factor
PS/2 single
Indicator
1 x Power Status
2 x LAN Activity
1 x HDD Status
Front Control
1 x Power On/Off
1 x System Reset
2 x USB2.0/USB3.0 (Option)
Cooling Fan
Front: 1 x 120 mm (T=25 mm), PWM,
Rear: 2 x 80 mm (T=25 mm) (Option)
System Security
Intrusion Switch (Option)
Key Lock on Front Door
Expansion Slot Opening
7 x Full Height
Net Weight
9.5 kg/20.93 lb
Gross Weight
12.3 kg/27.09 lb
| MB Form Factor | ATX (12��� x 9.6���) |
| Dimension (D x W x H) | 465.2 x 430.0 x 176.0 (mm) 18.32��� x 16.93��� x 6.93��� |
| Drive Bay | External 3.5"���1 External 5.25"���3 Internal 3.5"���4 Slim ODD���1 |
| Storage Backplane | N/A |
| PSU Form Factor | PS/2 Single or 1+1 Redundant |
| Indicator | 1 x Power Status 2 x LAN Activity 1 x HDD Status |
| Front Control | 1 x Power On/Off 1 x System Reset 2 x USB2.0/USB3.0 (Option) |
| Cooling Fan | Front: 1 x 120 mm (T=25 mm), PWM, Rear: 2 x 80 mm (T=25 mm) (Option) |
| System Security | Intrusion Switch (Option) Key Lock on Front Door |
| Expansion Slot Opening | 7 x Full Height |
| Net Weight | 9.5 kg/20.93 lb |
| Gross Weight | 12.3 kg/27.09 lb |
| Cubic Feet | 3.44 |
| Container Loading (Single Packing) | 20': 192 , 40': 432 , 40'H: 504 (Single + Pallet) |
CAC-RM42300
