Chenbro SK33502 5-bay 3.5" Hdd Enclosure With 12Gb/s Sas & Sata Backplane SK33502
SKU
392069
Brand
MPN
SK33502
Warranty
Standard Manufacturer's Warranty
$309.00
Buy Now And Earn 309 Reward Points!

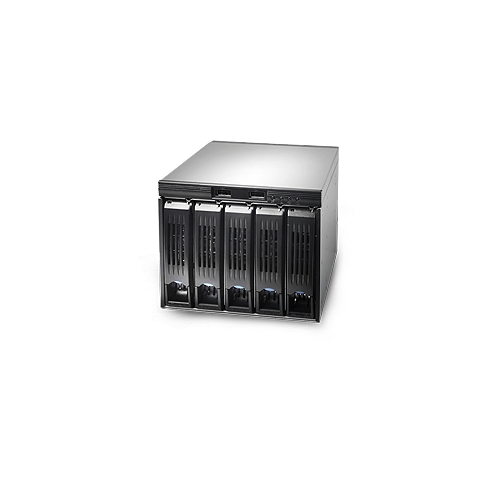

Chenbro SK33502 5-bay 3.5" HDD Enclosure with 12Gb/s SAS & SATA Backplane
SK33502 is designed with standard mounting holes for converting 3 x 5.25" drive bays into 5 x 3.5" SATA hot-swap hard drive bays.
Features & Benefits
Fits chassis with three 5.25" drive bays
Back-mounted 80mm fan to deliver optimized cooling performance
Two front access USB ports
HDD failure and activity indicators on each hot-swap drive carrier
Supports inrush current control for drive hot-swapping
Alternative HDD activity and failure single input sources
Built-in temperature sensor and overheat warning system
SK33502 is designed with standard mounting holes for converting 3 x 5.25" drive bays into 5 x 3.5" SATA hot-swap hard drive bays.
Features & Benefits
Fits chassis with three 5.25" drive bays
Back-mounted 80mm fan to deliver optimized cooling performance
Two front access USB ports
HDD failure and activity indicators on each hot-swap drive carrier
Supports inrush current control for drive hot-swapping
Alternative HDD activity and failure single input sources
Built-in temperature sensor and overheat warning system
| Dimensions (D x W x H) 218.5 x 146.0 x 127.3 (mm) | 8.61" x 5.75" x 5.01" |
| Drive Bay 5 x 3.5" HDD Tray | Indicator 1 x Power Status |
| 1 x HDD Status | System Security 1 x System Alarm |
| Front Control Alarm Mute | 2 x USB3.0 |
| Cooling Fan 80 x 32 (1) | Material SGCC |
| Net Weight 2.23 kg | Backplane 12Gbps SAS/SATA |
| Connector (To Drive) 5 x SFF8680 | Connector (To Host) 5 x SATA 7pin |
| Package Cotents 1 x SK33502 | 5 x 700 mm SATA Cable |
| 1 x 600 mm Signal Cable | Compatible Chassis |
| • RM31300 RM41300 RM42200 RM42300 | • SR105 SR107 SR209 SR105 Plus SR209 Plus SR107 Plus |
CAC-SK33502-10A-1
