DESCRIPTION

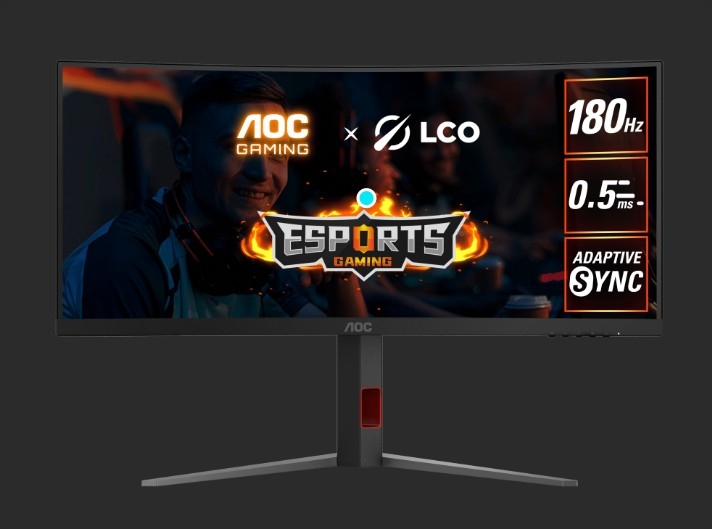

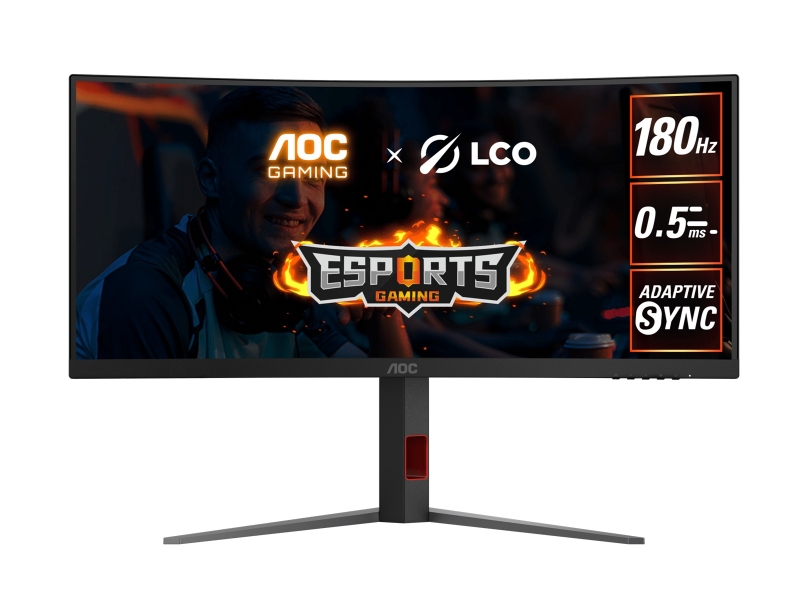

AOC CU34G4 34" WQHD VA,1500R,180Hz ,1ms GtG,HDR10, HAS

Specifications CU34G4
Picture / Display
LCD Panel Type Fast VA LCD 1500R
Backlight Type W-LED system
Panel Size 34"
Effective Viewing Area (mm) 797.22 (H) × 333.72 (V)
Aspect Ratio 21 : 9
Optimum Resolution "3440 × 1440 @ 180Hz – DisplayPort1.4 3440 × 1440 @ 100Hz – HDMI2.0 "
Scan Frequency "HDMI: 30K~160KHz (H) / 48~100Hz (V) DisplayPort: 30K~275KHz (H) /48~180Hz(V) "
Smart Response Time (typical) 0.5ms (MPRT) /1ms (GtG)
Response Time (typical) 5ms (GtG)
Brightness (Peak for HDR)
Brightness (typical) 300 cd/m²
Smart Contrast 80 Million : 1/ MEGA DCR
Contrast Ratio (typical) 3000 : 1
Pixel Pitch (mm) 0.23175 (H) × 0.23175 (V)
Viewing Angle 178° (H) / 178° (V) (CR > 10)
Display Colors 16.7 Million
Color Gamut NTSC 101% (CIE1976) / sRGB 120% (CIE1931) / DCI-P3 92% (CIE1976)
Color Accuracy : Delta E < 2
Low Input Lag Yes
PxP (PIP, PBP) Yes
HDR HDR10
HDR Mode Yes
Gaming Motion Technology AdaptiveSync
Connectivity
Signal Input "HDMI 2.0× 2 DisplayPort 1.4 × 1"
HDCP Version HDMI: 2.2 / DisplayPort: 2.2
MHL no
USB Hub no
Line In/Earphone Earphone
Other Dark boost , MBR, Sniper scope
Convenience
Built-in Speakers no
User Controls "Source / Exit Dial Point / Right Game Mode / Left Menu / Enter Power "
OSD Languages "Japanese Simplified Chinese Traditional Chinese Korean Russian Czech Polish Finnish Swedish Dutch Italian German Portuguese Spanish French English"
Plug & Play Compatibility DDC / CI
Software Certification Windows 11
Stand
Height Adjustment 130mm
Pivot no
Swivel —20° ~ 20°
Tilt —5° ~ 23°
Power
Smart Power Mode: Maximum 57W
Smart Power Mode: Typical 39W
Standby Mode 0.5W
Off Mode 0.3W
Power LED Indicator Operating: White
Standby: Orange
Power Supply 100 - 240V～1.5A, 50 / 60Hz
Dimensions
Product without Stand (mm) 368.4 (H) × 808.1 (W) × 109.0 (D)
Product with Stand (mm) 435.7~534.7 (H) × 808.1 (W) × 269.4 (D)
Packaging (mm) 553 (H) × 1070(W) × 188(D)
Wall Mount 100mm × 100mm
Weight
Product without Stand 5.82 kg
Product with Stand 8.08 kg
Product with Packaging 11.35 kg
Operating Conditions
Temperature Range (Operating) 0° ~ 40°
Relative Humidity (Operating) 10% ~ 85%
Altitude (Operating) 0 ~ 5000m (0 ~ 16404 ft)
MTBF —
Storage Conditions
Temperature Range (Storage) —20° ~ 55°
Relative Humidity (Storage) 5% ~ 93%
Altitude (Storage) 0 ~ 12192m (0 ~ 40000 ft)
Sustainability
Environmental and Energy RoHS
Recyclable Packaging Material —
Compliance and Standards
Regulatory Approvals "CE / CB FCC "
Cabinet
Color Black & Red
