DESCRIPTION

DESCRIPTION

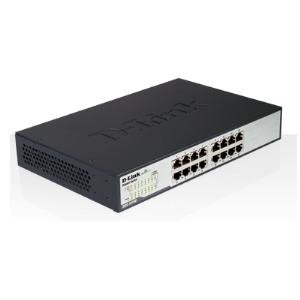

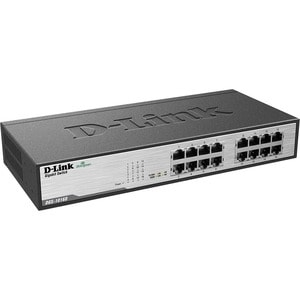

This 16-Port Unmanaged Gigabit switch features D-Link Green™ eco-friendly technology, which reduces power consumption and operating costs.The D-Link® 16-Port Gigabit Switch (DGS-1016D) delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Users in the office, workgroup, or creative production environment can now transfer large bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network without hesitation. The versatile and compact 1RU height design of the DGS-1016D enables the device to be rackmounted in a standard 19-inch rack while conserving valuable rack space.
POWER PACKED
Featuring non-blocking switching architecture, the DGS-1016D filters and forwards packets at wire speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x flow control for full-duplex mode, and back pressure flow control for half-duplex mode alleviate traffic congestion and ensure reliable data transmission. Designed using industry standards, the DGS-1016D is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices. The DGS-1016D protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.
EASY TO INSTALL AND MAINTAIN
This switch was designed for Plug-and-Play and hassle-free installation. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000Mbps) and intelligently adjusts for compatibility and optimal performance. It also features diagnostic LEDs that display status and activity, allowing you to quickly detect and correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable-related problems.
802.1P QUALITY OF SERVICE
The DGS-1016D supports 802.1p Quality of Service (QoS). When the switch receives a frame tagged with 802.1p priority, it automatically places it into one of four priority queues. Priority queuing is especially beneficial when streaming voice and video on your network.
THINK GREEN
D-Link Green™ technology implements power-saving features to help make your network environmentally friendly without compromising performance. The DGS-1016D automatically powers down ports that have no link and budgets power output for different Ethernet cable lengths. It also complies with the EU?s RoHS directive, restricting the use of certain hazardous materials.
FEATURES
D-Link Green Technology
32Gbps Switching Capacity
Desktop or Rack Mountable Design
Non-blocking Architecture
Brand
D-Link
Model
DGS-1016D

Spec
Format
Rackmount
Standards
802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control, 802.3ab Gigabit Ethernet, 802.1p QoS
Network Management Type
Unmanaged
Jumbo Frames
Yes
Ports
16 x RJ45
Speed
10/100/1000Mbps
MAC Address Table
8K
Buffer Memory
512Kbytes Buffer Memory per Device(Packet)
Switching Method
Store and Forward
PoE
No
Stackable
No
SNMP
No
QoS
Yes, 802.1p (4 Queues)
LACP
No
Layer
1
Port Mirroring
No
Module Support
No
LEDs
Per Unit: Power
Per Port: Activity/Link, Speed
VLAN Support
No
Power
100-240VAC, 50/60 Hz Internal Universal Power.

Maximum Power Consumption: 13.4W
Dimensions
11.0" x 7.1" x 1.7"
Weight
3.64 lbs.
Temperature
0? to 40?C
Humidity
5% - 95%, Non-condensing

Features
Features
Switch Fabric: 32Gbps Forwarding Capacity

Acoustics: 0db

Emissions: FCC Class A, CE Class A

Environmental: RoHS Compliant

Safety: CSA + NRTL/C

D-Link Green Technology

Desktop or Rack Mountable Design

Non-blocking Architecture

Packaging
Package Contents
DGS-1016D
User Manual
Rack Mount Kit
Power Cord
