Features
Ultra-Quiet, Compact Design for Home and Office Use
4 ports provide PoE up to 15.4W for a total PoE budget of 52W
No Special Networking Cables Required
Quick, Simple Plug-and-Play Installation
Description

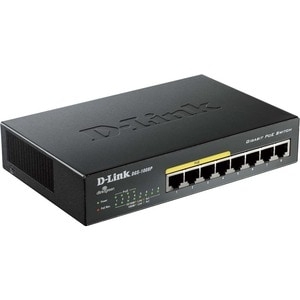

The D-Link 8-Port Gigabit Ethernet PoE Switch (DGS-1008P) enables office users the ability to easily connect and supply power to Power over Ethernet (PoE) devices such as IP cameras, IP phones, and wireless access points (APs) to a network.
Gigabit Connection for Small Business
The D-Link 8-Port Gigabit Ethernet PoE Switch (DGS-1008P) enables office users the ability to easily connect and supply power to Power over Ethernet (PoE) devices such as IP cameras, IP phones, and wireless access points (APs) to a network. The 8 Gigabit ports provide connectivity for devices and applications that require high speed network access and reduce bottlenecks that can interrupt communication. The DGS-1008P also provides the opportunity to add additional Ethernet devices like computers, printers, and Network Attached Storage (NAS) onto a network. This compact PoE switch operates quietly, making it ideal for use in virtually any room or office.
Power Over Ethernet (PoE)
The first four ports of the DGS-1008P supports the IEEE 802.3af PoE protocol. Each of these four ports can supply up to 15.4 watts for a total PoE budget of 52 watts, allowing users to attach an IEEE 802.3af compliant device to the DGS-1008P that requires no additional power. Use PoE for applications that are far from power outlets or when you want to minimize the clutter of extra cables.
Auto MDI/MDIX Crossover
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
Easy Installation, no Additional Setup
The DGS-1008P 8-Port Gigabit Ethernet Switch is plug-and-play and requires no additional configuration. Its compact size and fan-less design allow for installation anywhere data or power is required. In addition, the switch supports IEEE 802.1p QoS, which automatically classifies and prioritizes compliant device traffic to ensure time sensitive data such as VoIP is forwarded without delay.
Conserves Energy
The DGS-1008P 8-Port Gigabit Switch makes use of D-Link Green eco-friendly technology, providing energy savings, reduced power consumption, and a longer product life without sacrificing operational performance or functionality. This switch helps to conserve energy through methods such as Link Status and Cable Length Detection. The Link Status feature automatically powers down ports that have no link, allowing the switch to save substantial amounts of energy by cutting power for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjust power usage accordingly, helping you save energy without affecting networking performance. In addition, the fan-less design extends the products life and also reduces noise.
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package. See inside package for warranty details. This product is designed for the use in the USA and Canada. Use of this product in other countries might violate local laws.
Specifications
Specifications
Switching Capacity
16 Gbps
Standards
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
ANSI/IEEE 802.3 NWay Auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
POE Features
Supports IEEE 802.3af
Supplies power to PD: up to 15.4 Watts
Total PoE budget: 52 Watts
PoE port count/Average PoE watts per port: 4 (Port 1 - 4) / 13 Watts
Data Transfer Rates
Ethernet
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet
2000 Mbps (full duplex)
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
Network Cables
10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Led Indicators
Per port: Link/Activity/Speed/PoE Status
Per device: Power/PoE Max
Transmission Method
Store-and-forward
MAC Address Table
4K Entries per device
MAC Address Learning
Automatic update
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
192 KBytes per device
Power Consumption
Power On (Standby):
DC input: 0.48 Watts
AC input: 2.1 Watts
Maximum (PoE Off)
DC input: 4.48 Watts
AC input: 6.2 Watts
Maximum (PoE On)
DC input: 57.83 Watts
AC input: 63.2 Watts
Power Adapter
AC input: 100 to 240 VAC, 50/60 Hz
DC output: DC 48 V/1.25 A (60 Watts)
Operating Temperature
Device:
0 to 50 C (32 to 122 F)
External Power Adapter:
0 to 40 C (32 to 104 F)
Storage Temperature
40 to 70 C (104 to 158 F)
Operating Humidity
0% to 95% RH non-condensing
Storage Humidity
0% to 95% RH non-condensing
Device Dimensions
7.5 x 4.7 x 1.5 inches (190 x120 x 38 mm)
Certifications
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
LVD
Warranty
Limited Lifetime Warranty1
