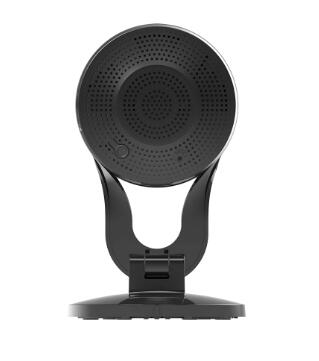

D-link Dcs-2530l Full Hd 180-degree Wi-fi Camera Dcs-2530l
No Longer Available
The DCS-2530L Full HD 180° Panoramic Camera boasts a horizon-wide 180° lens that easily captures your entire room, in high-quality 1080P.
Its rotatable head makes installations easy, and the built-in night vision, motion and sound detection, and handy mobile app empower you with knowing exactly what is happening, day or night.
Peace of mind with 24/7 complete coverage
- Ultra-wide view lens to give you a full 180° field of view, letting you cover an entire room with a single camera
- Forget about pan and tilt cameras, view everything instantly in real-time. Built-in de-warping technology gives you a distortion-free image and the 1080p Full HD sensor captures fine details with ease
- Receive push notification and/or e-mail with snapshots or video clips whenever motion or sound is detected
- Set volume limits to detect when a loud sound is picked up by the camera
- Built-in infrared LEDs allow for viewing of up to 5 metres
Place it anywhere in your home
Wi-Fi Signal Locator
Helps you find the best Wi-Fi
spot for your camera
mydlink: The easiest way to set up your camera and monitor your home
mydlink makes it easy to access your camera from wherever you are, whenever it's convenient for you. Using the free mydlink Lite app for iOS and Android smartphones and tablets, you can connect and setup your mydlink camera without even turning on a computer.
Through the mydlink Lite app, you can set up a free mydlink account which allows you to view and manage your camera from any Internet connected computer. If you have more than one camera, you can add it to your existing mydlink account and watch all your cameras from a single location.
If you have a mydlink-enabled Cloud Router, setting up and configuring your DCS-2530L is as easy as 1, 2, 3, thanks to Zero Configuration. Simply connect your camera to its power adapter and then connect your camera to your Cloud Router with an Ethernet cable - the camera will automatically be added to your account.
* MicroSD card not included. Supports microSDXC cards up to a maximum capacity of 128 GB.Technical Specifications
Camera
Camera Hardware Profile
- 1/3” 2 Megapixel progressive CMOS sensor
- Minimum illumination:
- Color mode: 0.5 lux
- B/W mode (LEDs off): 0.1 lux
- B/W mode (LEDs on): 0 lux
- Minimum object distance 30 cm
- Lens focal length: 1.7 mm
- Aperture: F2.5
- Angle of view (16:9):
- (H) 180°
- (V) 86°
- (D) 180°
- Stand angle: -15° to 90°
Image Features
- Configurable image size, quality, frame rate, and bit rate
- Wide Dynamic Range (WDR)
- 3D filtering
- Time stamp and text overlays
- Configurable motion detection windows
- Configurable privacy mask zones
- Configurable exposure time, brightness, saturation, contrast, sharpness.
Video Compression
- Simultaneous H.264/MJPEG format compression
- H.264 multicast streaming
- JPEG for still images
Video Resolution
- 16:9
- 1920 x 1080 at up to 15 fps
- 1280 x 720, 800 x 448, 640 x 360 at up to 30 fps
Audio Support
- G.711 128 Kbps
- AAC 32 Kbps
Connectivity
- 802.11n/g/b wireless with WPA/WPA2 encryption
- Operates on 2.4 GHz band
- micro SD/SDHC/SDXC card Slot, accepts cards up to 128 GB*
Network
Network Protocols
- IPv6, IPv4, ARP, TCP, UDP, ICMP
- DHCP client
- NTP client (D-Link)
- DNS client
- DDNS client (D-Link)
- SMTP client
- HTTP server
- UPnP port forwarding
- RTP/RTSP/RTCP
- HTTPS (for configuration)
- ONVIF
- Bonjour
Security
- Administrator and user group protection
- Password authentication
- HTTP and RTSP digest encryption
System Integration
System Requirements for Web Interface
- Operating System: Windows 10/8/7 or Mac OS X 10.7 or higher
- Browser: Internet Explorer 8, Firefox 12, Chrome 202, or Safari 6 or higher
Event Management
- Motion detection
- Sound level detection
- Scheduled recording
- Event notification and uploading of snapshots/video clips via e-mail
Remote Management
- Configuration interface accessible via web browser
Mobile Support
- mydlink Lite app for iPhone, iPod Touch, Android, and Windows smartphones.
- mydlink+ app for iPad and Android tablets
General
Dimensions
- 109.6 x 66.0 x 66.0 mm (4.3 x 2.4 x 2.4 inches) ± 5%
Weight
- 105 grams (3.7 ounces) ± 5%
Power Adapter
- Input: 100 to 240 V AC, 50/60 Hz
- Output: 5 V DC 1.2 A
Power Consumption
- 4.5 watts ± 5%
Temperature
- Operating: 0 to 40 °C (32 to 104 °F)
- Storage: -20 to 70 °C (-4 to 158 °F)
Humidity
- Operating: 20% to 80% non-condensing
- Storage: 5% to 95% non-condensing
Certifications
- CE
- CE LVD
- FCC
- ICES
