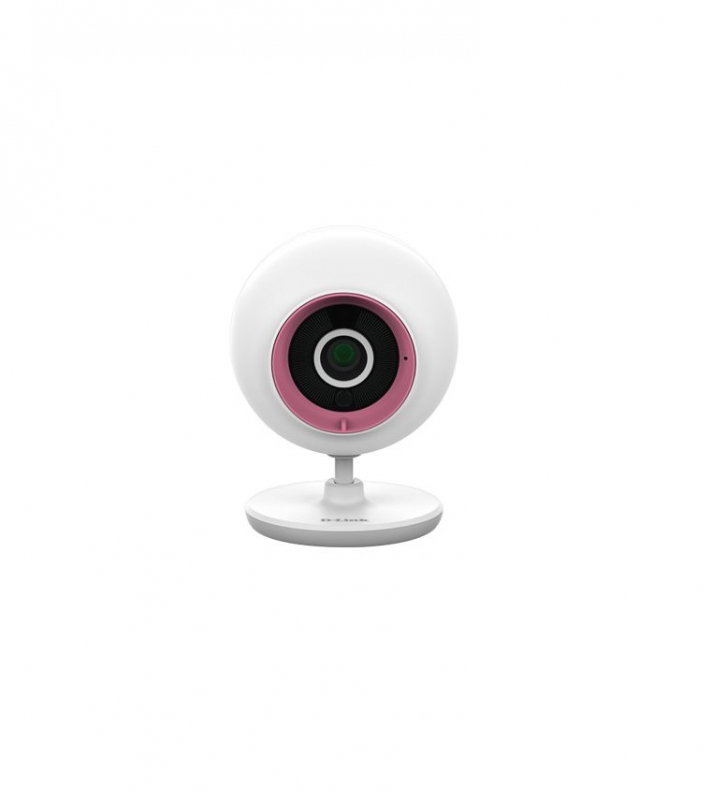

Wi-Fi Baby Camera Jr.

DCS-700L

Night Vision - Infrared LEDs turn on automatically when it gets dark
Sound & Motion Detection - Alerts you of detected motion or loud noises, such as your baby crying
Push-to-Talk - Speak and then listen as your child responds to the sound of your voice
5 Classic Lullabies - Soothe your baby with any of 5 gentle lullabies
Interchangeable Accent Color Ring - Includes pink and blue accent ring
Monitor Anytime, From Anywhere - Check in from your mobile device using the free mydlink™ Baby app

Overview













Specifications

Functions and Features
Camera
VGA resolution (640 x 480)
Night vision with infrared LEDs that turn on automatically when it gets dark
802.11n wireless lets you place the camera anywhere
Can be powered by an external USB battery1
5 gentle lullabies built-in
Interchangeable pink and blue accent color ring
Intelligent Baby Monitoring
Sound detection alerts you to loud noises, such as your baby crying
Built-in motion detection lets you know if the camera detects movement
Notifications can be sent to your mobile device for detected events
Two-way audio lets you listen and then respond to your child
Convenient Control from your Mobile Deviceand Computer
Uses the free mydlink Baby app for iPhone, iPad, and Android devices
The mydlink Baby app helps you set up your device and gives you easy access to all functions
Also compatible with the free mydlink Lite app, available for iPhone, iPad, Android and select Windows Phone devices
View and control through the secure mydlink web portal
Technical Specifications
Camera Hardware Profile
1/5 VGA megapixel progressive CMOS sensor
16 ft night vision with infrared LEDs
Minimum illumination: 0 lux with IR LEDs on
Built-in microphone and speaker
4x digital zoom
Focal length: 2.44 mm
Aperture: F2.4
Angle of view:
(H) 57
(V) 42
(D) 68
External Device Interfaces
802.11n wireless
Reset button
Direct button
Power port (Micro-USB)
Power LED
Cloud LED
Image Features
Pinch & zoom in image size
Time stamp overlay
Video Compression
H.264 format video compression
JPEG for still images
Video Resolution
640 x 480
320 x 240
Audio Support
PCM
Baby Monitoring Features
Sound detection with adjustable sensitivity
Motion detection with adjustable sensitivity
Sends notifications when sound or motion is detected
2-way audio (push to talk)
Mobile App
Free mydlink Baby Camera Monitor app available on the Apple App Store and Google Play
Free mydlink Lite app available on the Apple App Store and Google Play
Compatible with iPhone and iPad using iOS 5.1.1 or higher
Compatible with Android smartphones and tablets using Android 4.01 or higher
Network Protocols
IPv4
ARP
TCP/IP
UDP
ICMP
DHCP client
HTTP
HTTPS (for configuration)
UPnP port forwarding
Security
Administrator protection
Password authentication
HTTP authentication
Dimensions (L x W x H)
2.8 x 3.0 x 3.9 inches
Weight
Device: 3.8 oz
Power Input
5V DC / 1.2A, 50/60 Hz through power adapter
Can be powered by an external USB battery with at least 2A output (not included)
Temperature
Operating: 32 to 104 F(0 to 40 C)
Storage: -4 to 158 F(-20 to 70 C)
Humidity
Operating: 20% to 80% non-condensing
Storage: 5% to 95% non-condensing
Certifications
CE
CE LVD
IC
FCC
C-Tick
1USB battery not included, requires at least 2A output.
