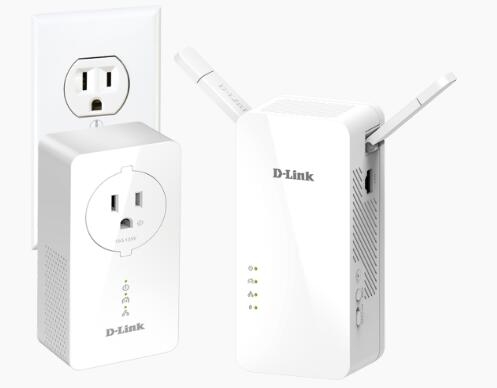

D-link Dhp-w611av Powerline Av2 1000 Wireless Ac1200 Starter Kit Dhp-w611av

Rated 5/5 based on 2 customer reviews

SKU: 267362

Brand: D-Link

Manufacturer Link

MPN: DHP-W611AV

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: Preorder 2-3 weeks

Freight Estimate:

$283.00
Buy Now And Earn Reward Points!
Qty:

Wi-Fi with a backbone

Wi-Fi sends signals through the air. Powerline sends signals through the electrical wiring in your walls. Together they create Power-Fi™, a hybrid technology that creates the most robust home network possible. By turning the two technologies into one, dead spots are eliminated and range and throughput are extended.
Power-Fi gives you the power to stream content and media to every corner of your home like never before.



AC1200 speeds up to 300Mbps (2.4GHz) + 867Mbps (5GHz).1 Powerline speeds up to 1000 Mbps2 using HomePlug AV2 technology make it ideal for activities like HD media 10/100/1000 Gigabit Ethernet port for high-speed connection to wired device Plug-and-Play feature means creating a PowerLine network is simple and easy
dhp-w6011av_passthrough

Pass through noise filter

The integrated passthrough socket ensures no power outlet is going to waste and the built-in noise filter eliminates electrical signal noise for powerful transmission performance.



How it works



With the PowerLine Wireless AC1200 Gigabit Starter Kit, getting whole-home coverage is fast and easy.

Simply connect the PowerLine adapter to your router's Ethernet port and plug it into a power outlet to turn every other outlet in your home into a possible network connection.

Plug the wireless extender into an outlet in a different part of your home to extend your Wi-Fi or wired network to the hard-to-reach areas of your home like upstairs bedrooms, basements and outdoor patios.

dhp-w6011av-av2tech



Advanced HomePlug AV2Technology



The D-Link PowerLine Wireless AC1200 Gigabit Starter Kit (DHP-W611AV) delivers the ultimate in wired connectivity for the hard-to-reach areas of your home. Utilizing your home's existing electrical wiring as a reliable high-speed network, the DHP-W611AV makes it easy to connect computers, gaming consoles, and media players to your network without additional cables. The DHP-W611AV is the ideal solution for getting connected in spaces like offices, bedrooms and other areas of your home that are remotely located from your router.



Easy setup



Simply plug and play. No need to configure or to remember passwords.
A simple push of a button will get your network secured in minutes.

Extend your wired network

Extend your Powerline network by adding up to 6 adapters in total. Backward compatible with PowerLine AV, AV+.3

Technical Specifications (DHP-P610AV PowerLine AV1000 Gigabit Passthrough Adapter)

General

Powerline Interface

  • One PLC interface compatible with HomePlug AV2.1 specification up to 1000 Mbps

Network Interface

  • 10/100/1000 Ethernet port with auto MDI/MDIX

Other Interface

  • Simple Connect Button
  • Reset Button

Functionality

Standards

  • IEEE 802.3
  • IEEE 802.3x
  • HomePlug AV2.1
  • IEEE 1901

Security

  • 128-bit AES encryption

LEDs

  • Power
  • Ethernet
  • Powerline

Advanced Features

  • Power-saving mode
  • Compliant with European Energy Using Product Directive

Powerline Modulation Scheme

  • OFDM Symbol Modulation

Powerline Frequency Band

  • 2 to 86 MHz

Data Rate

  • Powerline: Up to 1000 Mbps (PHY rate)2
  • Ethernet: 10/100/1000 Mbps (auto negotiation)

Physical

Dimensions

  • 114 x 59 x 38 mm (4.49 x 2.32 x 1.50 inches)

Weight

  • EU Type: 188 g (6.63 ounces)

Passthrough Power Socket

  • EU Type: 250 V/16 A Maximum

Power Input

  • EU Type: 100 to 250 V AC, 50/60 Hz, 16 A

Power

  • Input: 100 to 240 V AC, 50/60 Hz

Power Consumption

  • Normal: 2.62 W
  • Network Standby: 2.23 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE/LVD
  • FCC/IC
  • UL

Technical Specifications (DHP-W610AV PowerLine AV1000 Wi-Fi AC Adapter)

General

Powerline Interface

  • One PLC interface compatible with HomePlug AV2.1 specification up to 1000 Mbps2

Network Interfaces

  • 10/100/1000 Ethernet LAN port with auto MDI/MDIX
  • 802.11ac WLAN

Other Interface

  • Simple Connect button
  • WPS
  • Reset button

Wireless LAN

  • 802.11ac/n/g/a standards
  • Wireless speed3:
    • 5 GHz - up to 867 Mbps
    • 2.4 GHz - up to 300 Mbps
  • WPA/WPA2 (Wi-Fi Protected Access)

Functionality

Standards

  • IEEE 802.3
  • IEEE 802.3x
  • HomePlug AV2.1
  • IEEE 1901
  • IEEE 802.11ac/n/g/a

Security

  • Powerline: 128-bit AES Encryption
  • Wireless: Wi-Fi Protected Access (WPA/WPA2)

LEDs

  • Power
  • Ethernet
  • Powerline
  • Wi-Fi

Advanced Features

  • IPv6 support
  • Power-saving mode
  • PLC Quality of Service (QoS)

Physical

Dimensions

  • 140 x 68 x 50 mm (5.51 x 2.68 x 1.97 inches)

Weight

  • EU Type: 315.2 g

Power

  • Input: 100 V to 240 V AC, 50/60 Hz

Power Consumption

  • Normal: 9.22 W
  • Network Standby: 6.15 W
  • Off: 0.1 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE/LVD
  • FCC/IC
  • UL
  • RoHS
The DHP-W611AV PowerLine AV2 1000 Wi-Fi AC1200 Starter Kit allows you to set up and startenjoying the convenience and reliability of a high-speed wireless and Powerline networkin your home right away. The DHP-W611AV features the DHP-W610AV PowerLine AV2 1000Wi-Fi AC1200 Adapter and the DHP-P610AV PowerLine AV2 1000 Gigabit Passthrough Adapter,giving you everything you need to create a high-speed Powerline network in your home.Simply plug the devices into electrical outlets in your home and you’ll be able to use yourexisting wiring to expand your Internet access and wireless network.FeaturesConnectivity• 10/100/1000 Mbps Gigabit Ethernet LAN port forhigh-speed streaming• New HomePlug AV2.1 Powerline standardcompatible with IEEE 1901 and HomePlug AV2devices• IEEE 802.11ac, backward compatible with802.11n/g/a (DHP-W610AV)Security Features• Simple Connect Button to activate WPS andPowerline encryption• WPA/WPA2 encryption to secure your wirelesstraffic (DHP-W610AV)• 128-bit AES encryptionAdvanced Features (DHP-W610AV)• Quality of Service (QoS) maximizes performanceby prioritizing data types• UPnP support lets you connect devices easily• IPv6 support ensures new devices arecompatible• Web browser setup and configuration• Power-saving mode cuts down on energy usage• Clone My Wi-Fi lets you copy your existingnetwork settings to your extended network
