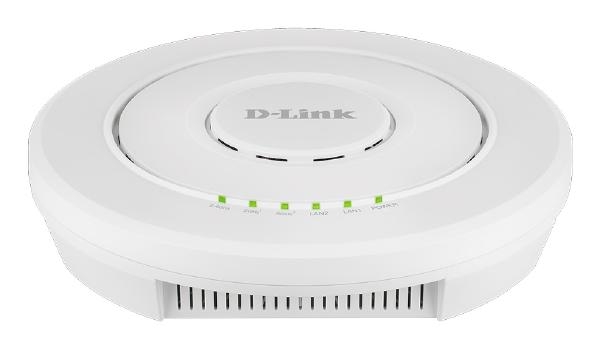

D-link Unified Wireless Ac2200 Wave 2 Tri-band Poe Access Point Dwl-7620ap

Name: D-link Unified Wireless Ac2200 Wave 2 Tri-band Poe Access Point Dwl-7620ap
Brand: D-link
SKU: 266395
Price: 854 AUD
Availability: InStock

SKU

266395

Brand

D-link

Manufacturer Link

MPN

DWL-7620AP

Manufacturer Product Link

Warranty

Standard Manufacturer's Warranty

Availability

In stock

Freight Estimate

Special Price $854.00 Regular Price $982.00

Buy Now And Earn 854 Reward Points!

AC2200 Wave 2 Wi-Fi

802.11ac Wave 2 wireless with combined speeds of up to 2.2 Gbps*

Tri-Band Wi-Fi

Improved throughput and coverage with three bands. Reduces co-channel interference, bringing more reliability in high-density areas.

802.11k Fast Roaming¹

Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.

Automatic Radio Frequency (RF) Management

Greatly reduces RF interference and enables denser AP deployments.

Centrally Managed

Used as a standalone wireless access point, self-configuring cluster or managed centrally via a D-Link Wireless Controller.

Limited Lifetime Warranty

Faster Business with Wave 2 Tri‑Band Wi‑Fi

The Wireless AC2200 Wave 2 Tri‑Band Unified Access Point delivers great bandwidth and flexibility for medium to large Wi‑Fi networks. Its fast Tri‑Band speeds, 2x2 MU‑MIMO, band steering, and Airtime Fairness upgrades your business to the best.

Advanced Wireless Features

802.11k Fast Roaming¹ allows wireless clients to move seamlessly between access points. 802.1p Quality of Service (QoS) provides enhanced throughput and better performance of time‑sensitive traffic like VoIP and streaming DSCP. It also supports Wi‑Fi Multimedia (WMM), so in the event of network congestion, time‑sensitive traffic can be prioritised. Airtime Fairness ensures that equal airtime is given to each client, preventing slower devices from monopolising the wireless connection.

Upgrade to Tri‑Band WiFi

The DWL-7620AP features one 2.4 GHz and two 5 GHz wireless bands for the growing number of devices connecting to a single access point.

Allows older 802.11b/g/n devices to connect to the 2.4 GHz while two 5 GHz bands can be dedicated to newer, faster wireless AC devices to enjoy seamless bandwidth-intensive applications like HD video conferencing, VoIP and file collaboration.

Band steering technology efficiently load balances the clients and traffic between the three wireless bands to ensure your wireless clients have a superior user experience even in high-density environments.

Greater Speed and Connectivity

Combined wireless speeds of up to 2,200 Mbps* over 3 wireless bands for improved business network speeds.

Wired link aggregation² allows two Gigabit Ethernet ports to be linked together and act as a single port doubling the access point’s available bandwidth and maximising the overall throughput.

MU‑MIMO Efficiency

With support for MU-MIMO (Multi-User Multiple Input Multiple Output), the DWL-7620AP simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity. The 2 x 2 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance.

Flexible Deployment

It can be ceiling mounted or wall mounted to provide the best wireless coverage. Integrated Power over Ethernet (PoE) makes deployments faster and means it can be installed in areas without power outlets.

Effective Management

D‑Link Unified Wireless Controllers enable centralised management of multiple access points. Used as a standalone wireless access point, self‑configuring cluster or managed centrally via a D‑Link Wireless Controller. The AP includes a Console port for debugging and configuration.

Centrally Managed

When working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple units of DWL-7620AP can be centrally managed. This allows for a large number of access points to be deployed and managed easily and efficiently.

Automatic Radio Frequency (RF) Management

When the DWL-7620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel. This greatly reduces RF interference and allows access points to be deployed more densely.

To further minimise interference, when a nearby AP is on the same channel, the DWL-7620AP will automatically lower its transmission power. If the nearby access point fails, then this access point will increase its transmission power to expand coverage.

Guaranteed round‑the‑cloud tech response, even on weekends & bank holidays

Protect your network uptime with optional rapid-response tech support, designed to ensure businesses get the best fit solution for their unique environment. Our warranties and extended service packages reduce downtime, extend the lives of the products, and maximise your up-time by solving technical problems quickly and effectively.

Full technical details

General

Wireless Interface
IEEE 802.11b/g/n 2.4 GHz wireless
IEEE 802.11/a/n/ac Wave 2 5 GHz wireless

MIMO
2x2

Antennas
Internal omnidirectional antennas
2.4 GHz: 3 dBi
5 GHz: 4 dBi

Operating Frequency
2400 to 2483.5 MHz
5150 to 5850 MHz

Operating Channels
1 to 13 channels for 2.4 GHz band (per country code)
36 to 165 channels for 5 GHz band per country code

Ethernet Interface
2 x 10/100/1000BASE‑T LAN port

Console Port
RJ‑45

Data Rate²
2.4 GHz ‑ Up to 400 Mbps
5 GHz (1) ‑ Up to 867 Mbps
5 GHz (2) ‑ Up to 867 Mbps

Functionality

Advanced Features
Auto Channel selection
802.1p Quality of Service (QoS)
Wireless Multimedia (WMM)
Wireless Distribution System (WDS)
Band steering
Airtime Fairness
Link Aggregation¹
IEEE 802.11k Fast Roaming^*

Management

Operating Mode
Standalone mode
Managed mode ‑ Centrally managed by D‑Link Wireless Controller

Management Interfaces
Web‑based User Interface (Web UI)
Telnet/SSH
Command Line Interface (CLI)
SNMP v1/v2c/v3

Security

SSID Security
Up to 32 SSIDs, 16 per radio
802.1Q VLAN
Station Isolation

Wireless Security
WPA/WPA2 Personal/Enterprise
AES and TKIP

Detection and Prevention
Rogue and valid AP classification

Authentication
MAC address filtering

Physical

Power Adaptor
External power adapter: 12 V DC 2.5 A (not included)
Supports 802.3at PoE PD on LAN 1 Port

Power over Ethernet (PoE)
IEEE 802.3at

Power Consumption
Maximum 20 W

Enclosure
Bottom cover – plastic
Top cover – plastic
UL2043‑certified chassis

Temperature
Operating: 0 to 40°C (32 to 104°F)
Storage: ‑20 to 65 °C (‑4 to 149 °F)

Humidity
Operating: 10% to 90% non‑condensing
Storage: 5% to 95% non‑condensing

Meantime Between Failure (MTBF)
753,019 hours

Certifications
CE
FCC
IC
cUL+UL
CB
RCM
NCC
BSMI
UL2043
EN55032
EN55024
EN61000‑3‑2
EN61000‑3‑3
EN60601‑1‑2 (Medical electrical equipment)
EN301489‑1
EN301489‑17
EN300328
EN301893

Dimensions
Ø205 x 39 mm (Ø8.07 x 1.54 in)

Weight
0.57 kg (1.26 lbs) w/o bracket
0.62 kg (1.37 lbs) w bracket

Antenna Patterns

Orientations
Please see full datasheet below

The D-Link DWL-7620AP Unifed AC Wave 2 Wireless Access Point is specially designed for small to medium businesses or enterprises, providing unparalleled bandwidth and ?exibility for administrators looking to deploy a medium to large scale Wi-Fi network with manageable dual-band wireless LAN options and utilizing the cutting-edge speed of Wireless AC Wave 2. Not only can it operate in standalone mode, the DWL-7620AP can also be centrally managed by D-Link Unifed Wireless Controllers.
⚫" The Latest Wireless Technology Wave 2 802.11ac
⚫" Concurrent 2.4GHz and 2x 5GHz Tri-band
⚫" Up to 2.2 Gbps aggregated wireless speed1
⚫" Two Gigabit LAN ports with Link Aggregation
⚫" PoE+ support (802.3at)
⚫" MU-MIMO and Bandsteering technologies
⚫" Standalone and controller managed operation
