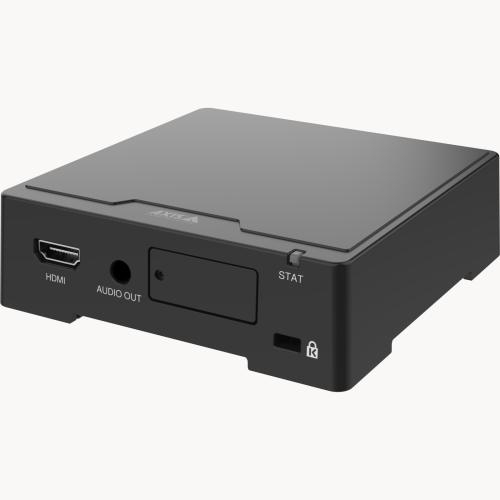

AXIS D1110 VIDEO DECODER 4K, 8 STREAMS IN MULTIVIEW
AXIS D1110 Video Decoder 4K can be used to display live video in sequence view, and up to 8 video streams in multiview. It offers a cost-effective solution for video monitoring where live video can be displayed with no PC. It can be used with monitors that supports HDMI, plus, it can display advertisement or general information with or without audio. Thanks to its audio-out port, you can also connect external speakers. Furthermore, this 4K decoder supports both PoE and DC power for fast and easy installation.
Supply chain
TAA compliant
EMC
CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KS C 9835, KS C 9832 Class A
USA: FCC Part 15 Subpart B Class A
Safety
IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3
Environment
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP30
Network
NIST SP500-267
Edge security
Software: Signed firmware, brute force delay protection, digest authentication, password protection
Hardware: cryptographic compute module cybersecurity platform
Secure element (CC EAL 6+), Manufacturer's device ID, secure keystore, secure boot
Network security
IEEE 802.1X (EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering
Casing
IP30-rated
Aluminum casing
Color: NCS S 9000-N
Security slot
Mounting
manufacturer T91A03 DIN Rail Clip A, mounting bracket, compatible with VESA mounting hole patterns
Power
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 2 Class 4
10–28 V DC, max 17 W
Connectors
Network: RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
Audio: 3.5 mm line out, stereo
Power: DC input, terminal block
2x USB type A
SD-card slot (Highspeed/UHS-1)
HDMI type A, CEC supported
Storage
Support for microSD/microSDHC/microSD UHS-1 card
Operating conditions
0 °C to 40 °C (32 °F to 104 °F)
Humidity 10–85% RH (non-condensing)
Storage conditions
-20 °C to 65 °C (-4 °F to 149 °F)
Humidity 5–95% RH (non-condensing)
Dimensions
For the overall product dimensions, see the dimension drawing in this datasheet
Weight
500 g (1.10 lb)
Box content
Video decoder, installation guide, terminal block connector
Languages
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Warranty
5-year warranty
Substance control
RoHS in accordance with EU RoHS Directive 2011/65/EU/ and EN 63000:2018
REACH in accordance with (EC) No 1907/2006. For SCIP UUID, see echa.europa.eu
Materials
Screened for conflict minerals in accordance with OECD guidelines
Environmental responsibility
The manufacturer is a signatory of the UN Global Compact, read more at unglobalcompact.org
