AXIS D3110 CONNECTIVITY HUB
SKU
404239
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!

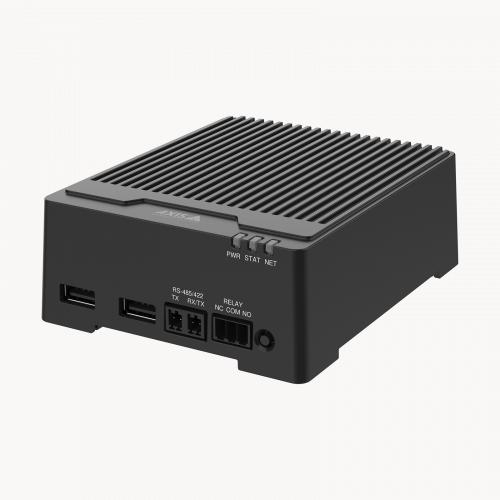

Axis D3110 Connectivity Hub enables sensor and audio integration into network video systems.
Features
Eight supervised configurable I/Os
Two audio-in ports, one audio-out port
VAPIX®, MQTT, SIP integration
ACAP and container support
Built-in cybersecurity features
| System on chip (SoC) | i.MX 6ULL |
| Memory | 512MB RAM, 512 MB flash |
| Audio Streaming | Two-Way, full duplex |
| Audio Encoding | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Audio Input/Output | Input: 2 x 5V Unbalanced microphone / 12V Balanced Phantom power Microphone Input / 12V digital audio input/ Line in Output: Line out |
| Casing | Aluminum casing Color: black NCS S 9000-N |
| Mounting | T91A03 DIN Clip A Mounting bracket |
| Weight | 392g (0.9lb) |
| Dimensions | 42.2mm (1.7in) x 117.8mm (4.6in) x 99mm (3.9in) |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 4 W, max 12.95 W or 10–28 V DC, typical 5 W, max 13.5 W |
