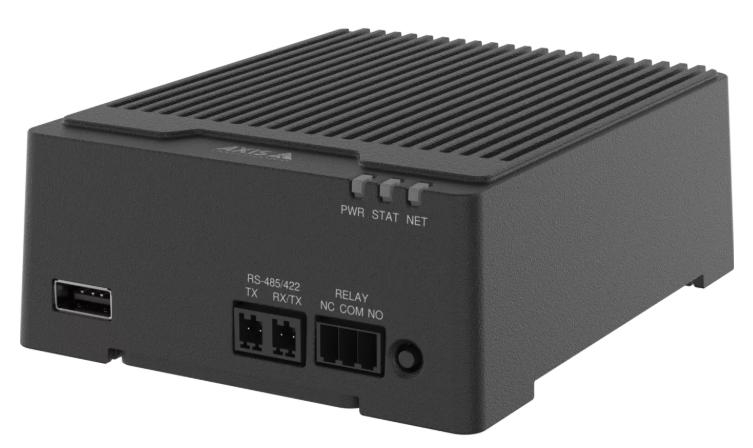

AXIS D3110 MKII CONNECTIVITY HUB 03037-001
SKU
433778
Brand
MPN
D3110 MKII
Warranty
Standard Manufacturer's Warranty
$830.00
Buy Now And Earn 830 Reward Points!
Axis D3110 MKII Connectivity Hub Secure Sensor and Audio Integration enables sensor and audio integration into network video systems that don’t have such capabilities or need additional ones. Ideal in an Axis end-to-end solution, it helps you increase scene awareness without compromising network security.
- Eight supervised configurable I/Os
- Two audio-in ports, one audio-out port
- VAPIX®, MQTT, SIP integration
- AXIS Audio Analytics preinstalled
- Built-in cybersecurity with Axis Edge Vault
| Memory | 1024 MB RAM, 1024 MB Flash |
| Audio Features | Automatic gain control 10-band graphic equalizer for audio input Voice enhancer |
| Audio Streaming | Two-way, full duplex Simplex – speaker only Simplex – microphone only |
| Audio Input | Input 1: External microphone input or line input (balanced or unbalanced), digital audio input with optional 12 V ring power Input 2: External microphone input or line input (balanced or unbalanced) Microphone power 5 V on tip, phantom power 12 V on tip/ring, ring power 12 V for digital input on ring |
| Audio Output | Line output |
| Audio encoding | AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, Opus 8/16/48 kHz |
| Configurable I/Os | 2 x 6 pin connectors, each with ground, 12 V at max 50 mA and 4 supervised configurable I/Os |
| Relays | 1 x SPDT relay, terminal block, max 1 A, max 30 V DC |
| Weight | 445g (0.98 lb) |
| Warranty | 5 Year |
AXIS D3110 MKII CONNECTIVITY HUB
