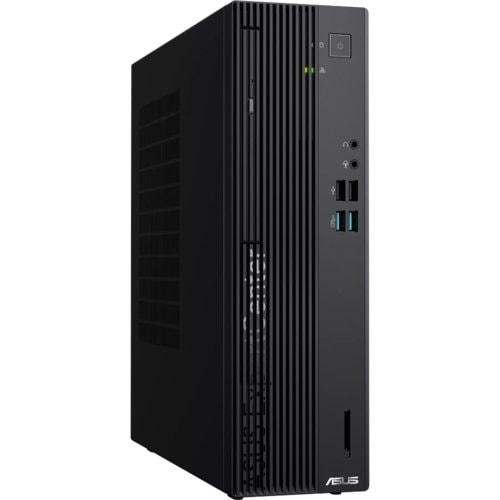

Asus ExpertCenter D5 SFF D501SERES - i7-14700 - B760 - 16GB DDR5 U-DIMM 8GBx2 - 512G M.2 NVMe 4.0 SSD - WiFi6E - Black - Windows 11 Pro - 3Y Warranty OnSite D501SERES-714700020X
Outstanding Value for business at any sizes
Engineered for the specific demands of small business, ASUS ExpertCenter D5 SFF is a desktop with AI-driven Microsoft Copilot that delivers powerful, trustworthy and expandable performance. Its modern, ultra-compact, and flexible design caters to diverse workspaces and usage scenarios - and allows businesses to take advantage of ASUS-exclusive small-business support services to minimize both downtime and total cost of ownership and maximize the value of your investment.
Secure manageability
ExpertCenter D5 SFF prioritizes security through TPM 2.0, providing advanced protection with two options: a software-based firmware TPM solution running on the CPU; or discrete TPM (dTPM), a dedicated chip offering an additional layer of defense against sophisticated threats.
Efficient expandability
The perfect balance of performance and size with remarkable expandability that provides space for essential hardware to support diverse productivity needs.
- Intel UHD Graphics 770 shared graphic card for lag-free and smooth performance
- Intel Core i7 2.10 GHz processor provides lightning fast speed and peak performance even for toughest tasks and intensive games
- 16 GB memory will run the heaviest applications swiftly. Capable of handling software of any genre including complex graphic tools, construction apps, and HD audio/video content.
- 512 GB SSD is enough to store your favourite songs, movies, pictures, and essential documents
- It's Windows 11 Pro operating system offers powerful platform to efficiently run routine applications
Power Description | |
Maximum Power Supply Wattage | 330 W |
Software | |
Software Included | One-Month Membership of Adobe Creative Cloud All Apps. |
Chipset | |
Chipset Manufacturer | Intel |
Chipset Model | B760 |
Input Devices | |
Keyboard | Yes |
Pointing Device Type | Mouse |
Operating System | |
Operating System | Windows 11 Pro |
Operating System Platform | Windows |
Warranty | |
Additional Warranty Information | 3Y OnSite Service |
Limited Warranty Duration | 3 Year |
Display & Graphics | |
Graphics Controller Manufacturer | Intel |
Graphics Controller Model | UHD Graphics 770 |
Graphics Memory Accessibility | Shared |
Storage | |
Drive Type | SSD |
Total Solid State Drive Capacity | 512 GB |
SSD Form Factor | NVMe M.2 PCI Express |
Miscellaneous | |
Package Contents | Wired keyboard (USB), Wired optical mouse (USB) |
Environmentally Friendly | Yes |
Environmental Certification | EPEAT Silver,ENERGY STAR 8.0,REACH,RoHS 2 |
Energy Star | Yes |
I/O Expansions | |
"Number of Internal 2.5"" Bays" | 1 |
Number of PCI Express x1 Slots | 2 |
"Number of 3.5"" Bays" | 1 |
Number of PCI Express x16 Slots | 1 |
Number of M.2 Interfaces | 3 |
Network & Communication | |
Bluetooth | Yes |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11ax |
Bluetooth Standard | Bluetooth 5.4 |
Ethernet Technology | Gigabit Ethernet |
Physical Characteristics | |
Weight (Approximate) | 6 kg |
Form Factor | Small Form Factor |
Height | 30.9 cm |
Width | 9.3 cm |
Depth | 29.6 cm |
Product Color | Black |
Color Family | Black |
Processor | |
Cache | 33 MB |
Processor Type | Core i7 |
Processor Model | i7-14700 |
Processor Core | Icosa-core (20 Core) |
Processor Manufacturer | Intel |
Maximum Turbo Speed | 5.4 GHz |
Processor Threads | 28 |
General Information | |
Product Type | Desktop Computer |
Manufacturer Part Number | 90PF05M1-M01V60 |
Manufacturer Website Address | https://www.asus.com/ |
Packaged Quantity | 1 |
Manufacturer | ASUSTeK Computer Inc. |
Product Model | D501SERES-714700020X |
Product Name | ASUS ExpertCenter D5 SFF (D501SER) |
Product Line | ExpertCenter D5 |
Brand Name | ASUS |
Interfaces/Ports | |
HDMI | Yes |
VGA | Yes |
Network (RJ-45) | Yes |
Number of HDMI Outputs | 1 |
Number of USB 2.0 Ports | 4 |
Headphone/Microphone Combo Port | Yes |
USB Type-C | No |
Number of USB 3.2 Gen 1 Type-A Ports | 2 |
Number of USB 3.2 Gen 2 Type-A Ports | 2 |
Memory | |
Maximum Memory Supported | 64 GB |
Standard Memory | 16 GB |
Memory Speed | 5600 MHz |
Memory Technology | DDR5 SDRAM |
Memory Card Reader | Yes |
Memory Form Factor | DIMM |
Number of Occupied Memory Slots | 2 |
Memory Configuration | 2 x 8GB |
Total Number of Memory Slots | 2 |
