IDIS SFP MODULE (500M) 3YR FTLF8519P3BNL DA-SPFTLF8519P3BNL
SKU
403294
Brand
MPN
DA-SPFTLF8519P3BNL
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$75.00
Buy Now And Earn 75 Reward Points!

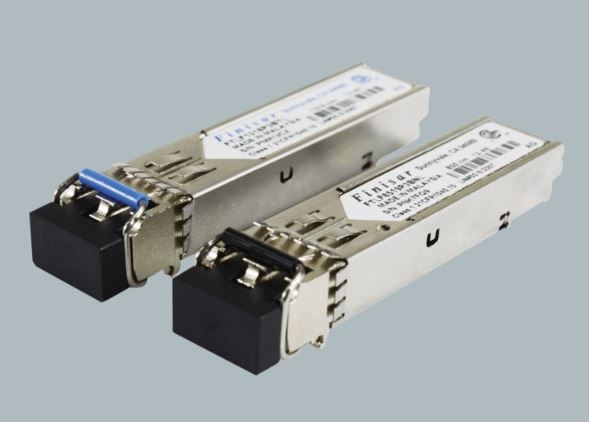

SFP Transceiver
- Up to 500m on 50/125μm MMF, 300m on 62.5/125μm MMF
- Up to 2.125 Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- 850nm Oxide VCSEL laser transmitter
- Compatibility with DH Series and DA-MC1101
| SFP TRANSCEIVER | |
| Optical Center Wavelength | 830 to 860nm |
| Output Pot.Power | -9 to -2.5 dBm |
| Average RX Sensitivity @ 2.125Gbs | -17 |
| Data Rate | 1.062Gb/s, 1.25Gb/s, 2.125Gb/s |
| General | |
| Diemensions(W x H x D) | 13.7mm x 12.4mm x 56.6mm (0.5" x 0.5" x 2.2") |
| Weight | 17.5g (0.04lb) |
| Operation Temperature | 0°C to 85°C |
| Approvals | FCC, CE, KC |
IDIS SFP MODULE (500M) 3YR FTLF8519P3BNL
