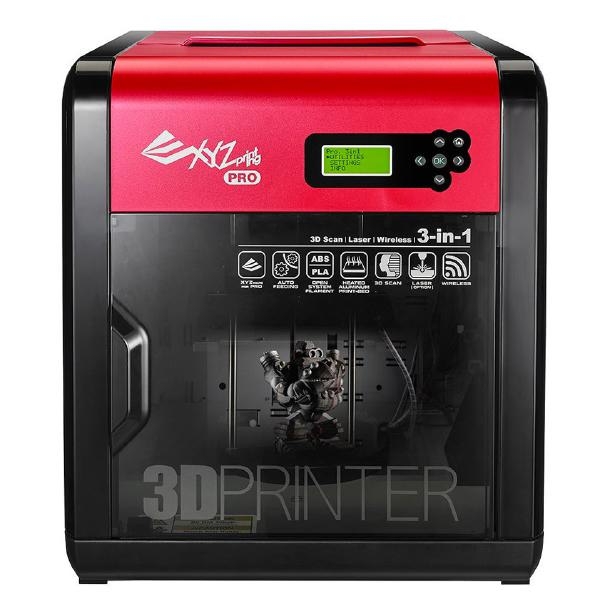

Da Vinci 1.0 Pro Professional 3-in-1 3d Printer & Scanner By Xyz Printing (laser Engraving Optional)
No Longer Available
QUICK OVERVIEW
- 3D Scanning with 360-degree automatic rotating platform, Dual-laser scanning technology for distortion-free capture of every single detail
- Aluminum print bed allows for an even distribution of heat
- Extruder design allows you to quickly release it from its container for easy cleaning and replacement
- Capable of using third party 1.75mm ABS and PLA filament
- New and intuitive calibration system that uses specially designed knobs and detection software which guide you in the right direction.
- 20 x 20 x 19 cm build size (200mm x 200mm x 190mm)
- The da Vinci Pro 3-in-1 has built in wireless local area network (Wireless LAN) connectivity
- XYZware Pro: More Precise Control
Product Specification
Dimensions
.
Product Dimension (WxHxD)
46.8 x 51 x 55.8 cm (18.4 x 20 x 22 inch)
Package Dimension
56 x 59 x 70 cm (22.1 x 23.3 x 27.6 inch)
Gross Weight
27.5kg
Print
.
Print Technology
Fused Filament Fabrication (FFF)
Print Dimension (L x W x H)
200 x 200 x 190 mm
Layer thickness
Fine 0.1 mm (100 microns)
Standard 0.2 mm (200 microns)
Speed 0.3 mm (300 microns)
Ultra Fast 0.4 mm (400 microns)
Print Head
Single Nozzle
Nozzle Diameter
0.4 mm
Print Material
ABS/PLA
Display
.
Display Screen
2.6” FSTN LCM
Language
Multi Language
Connectivity
USB 2.0 / WiFi
Printing Temperature Range
.
Printed Extruder: 170°C ~ 240°C (338°F ~ 464°F)
Printed Bed:41°C ~ 90°C (105°F ~ 194°F)
Software
.
Print Software
XYZware Pro
File Format
.stl , XYZ Format (.3w), G-code
Operating System
Win7 / Win8 / Mac OS X 10.8 and above
Hardware
.
Hardware Requirements
X86 32/64-bit compatible & i3 Intel CPU or above PCs
with 4GB+ DRAM (for PC)
64-bit compatible Macs with 4GB+ DRAM (for Mac)
Scan
.
Scan Technology
Slit Laser Triangulation
Scan Resolution
(Diameter x H)
3 x 3 cm – 15 x 15 cm/
1.18 x 1.18”- 5.9 x 5.9”
Scan Resolution
2140 points/cm2
(13900 points/inch2)
Turntable payload
≦ 3 Kg/6.6lbs
Scan Accuracy
0.25mm
Scan Software
XYZscan
Laser engraver module
.
(Select module)
Engraving area
20 cm x20 cm
Laser Wavelength
350mW ± 10%
Laser Wavelength
450nm+5nm/-10nm InGaN
File Types
JPG / PNG / GIF / BM
Laser Software
XYZware Pro
⚫3D Scanning with 360-degree automatic rotating platform, Dual-laser scanning technology for distortion-free capture of every single detail
⚫Aluminum print bed allows for an even distribution of heat
⚫Extruder design allows you to quickly release it from its container for easy cleaning and replacement
⚫Capable of using third party 1.75mm ABS and PLA filament
⚫New and intuitive calibration system that uses specially designed knobs and detection software which guide you in the right direction.
⚫20 x 20 x 19 cm build size (200mm x 200mm x 190mm)
⚫The da Vinci Pro 3-in-1 has built in wireless local area network (Wireless LAN) connectivity
⚫XYZware Pro: More Precise Control
