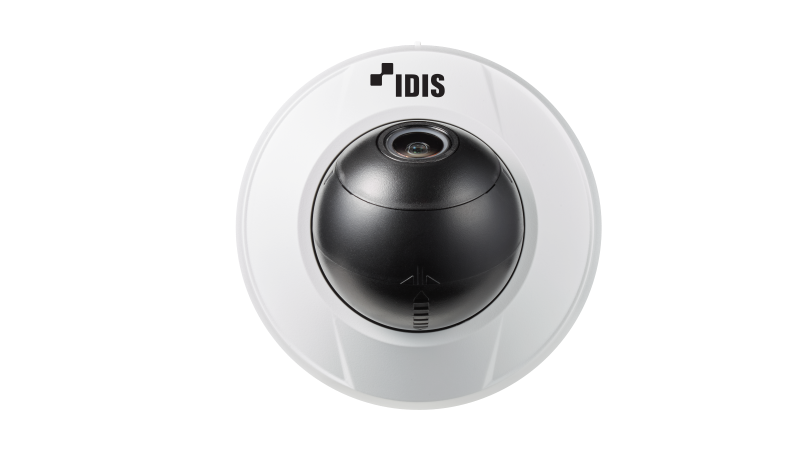

IDIS 2MP INDOOR MINI DOME 2.8MM UPTO 5YR DC-D4211CRX
SKU
407223
Brand
MPN
DC-D4211CRX
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$254.00
Buy Now And Earn 254 Reward Points!
- Full HD (1080p) resolution
- Fixed-focal lens (f=2.8mm)
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (15m / 49.2 ft (1 ea))
- PoE IEEE 802.3af (Class 2)
- 3-axis mechanical design for installation
- Easy installation with DirectIP NVR
- Supports ONVIF
| Video | |
| Image Sensor | 1/2.8” CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f=2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 113.74°(H), 61.5°(V), 134.5°(D) |
| Pan/Tilt/Rotate Range | Pan: -170° ~ 170°, Tilt: 0° ~ 65°, Rotate: -90° ~ 90° |
| Min. Illumination | COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 15m / 49.2 ft (1 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | - |
| Two-way Audio | - |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supports Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Pre-recorderd Voice Alert-IDIS protocol | - |
| Audio In/ Out | - |
| Alarm In / Out | - |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ 50°C ( 14°F ~ 122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE IEEE 802.3af (Class 2) |
| Power Consumption | PoE, IEEE 802.3af(Class 2), 3.6W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø86mm x 59mm (Ø3.39” x 2.32”) |
| Weight | 0.10kg (0.1lb) |
IDIS 2MP INDOOR MINI DOME 2.8MM UPTO 5YR
