IDIS 5MP MZ 2.7-12MM ONVIF NDAA TURRET 3YR ONVIF SETUP IS REQUIRED DC-D4531WERX
SKU
403317
Brand
MPN
DC-D4531WERX
Warranty
Standard Manufacturer's Warranty
$266.00
Buy Now And Earn 266 Reward Points!

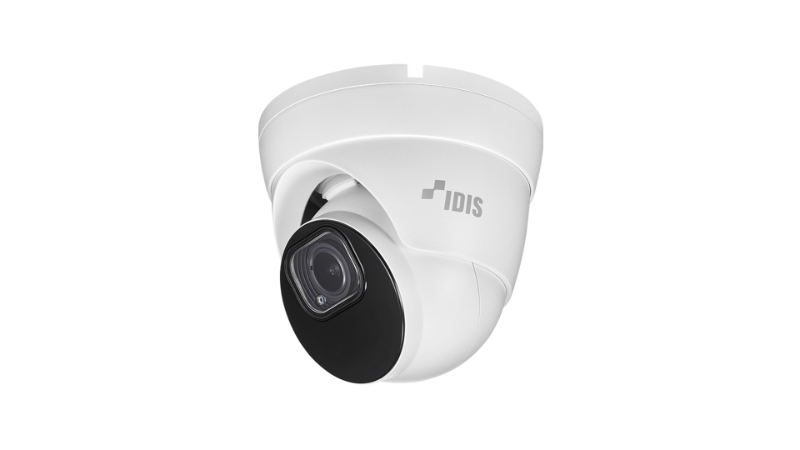

5MP MFZ IR Turret Camera
/ NDAA Compliant
- 5MP (2592x1944) resolution
- Motorized Vari-focal f=2.7 -12mm
- Micro SD/SDHC/SDXC
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (Distance : 45m)
- ONVIF Protocol
| Video | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens type | Motorized Vari-focal |
| Focal Length | f=2.7 - 12mm |
| Aperture | F 1.83 (Wide) ~ 3.32(Tele) |
| Iris Control | DC Iris |
| Angular Field of View Wide | 99°(H), 72°(V), 131°(D) |
| Min. Illumination | Color 0.05lux @ F1.2 (AGC ON) , B/W 0 lux @ IR ON |
| Dynamic Range | 120dB, True WDR |
| Electronic Shutter Speed | 1/5 ~ 1/20000s, Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15) |
| Day & Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 45 m (4 ea) |
| Pan/Tilt Range | Bracket: Pan 0-360°; Lens: Pan 0-360°, Tilt: 0-80° |
| Network | |
| Video Compression | H.265, H.264(MP) |
| Bit rate Control | CBR / VBR |
| Max. Frame Rate | 30ips : 2592×1944 (WDR) |
| Audio Compression | G711A (G.711 a-Law), G711U (G.711 u-Law), ADPCM 16K, G726 |
| Supported Resolution | 2592×1944, 2592x1520, 2304x1296, 1920x1080, 1280x960, 1280x720 |
| Multi-Video Streaming | Triple |
| Ethernet | RJ45(10/100BASE-T) |
| Edge Storage* (Optional) | Micro SD/SDHC/SDXC memory card (class 6 or higher, max. 256GB) |
| Audio and Alarm | |
| Audio In/Out | RCA 1ea / RCA 1ea |
| Alarm In | 1 switch input |
| Alarm Out | 0.5 A at 125 VAC/ 2A at 30 VDC |
| Environmental | |
| Operating Temperature | -30°C ~ +55°C (-22°F ~ +131°F) |
| Operrating Humidity | 0% ~ 90% |
| Power Source | DC 12V, POE (IEEE 802.3af Class 3) |
| Power Consumption | Max. 9W |
| Approval | FCC, CE, IP66 |
| External Dimensions(Ø x H) | Ø135.6mm x 127mm (Ø5.3” x 4.95”) |
| Weight(Main Unit) | 0.84kg (1.85lb) |
IDIS 5MP MZ 2.7-12MM ONVIF NDAA TURRET 3YR ONVIF SETUP IS REQUIRED
