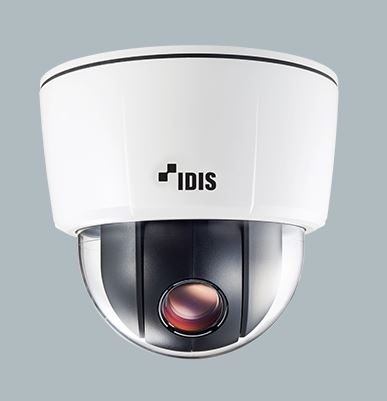

IDIS 2MP 30X PTZ H.265 NDAA WDR IP67 HEATER 5YR DC-S6281HX
SKU
403328
Brand
MPN
DC-S6281HX
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$769.00
Buy Now And Earn 769 Reward Points!
2M 30X Speed Dome Camera (WDR, IP67, Heater)
/ NDAA Compliant
- Easy installation with DirectIP NVR
- 2MP (1920x1080) resolution
- AF optical zoom lens (f=5.2 - 156mm), 30x zoom
- micro SD/SDHC/SDXC, Smart Failover
- Two-way audio
- Alarm in / out
- IK10 / IP67 supports
- Built-in heater
- PoE IEEE 802.3at (Class 4)
- Day and night (ICR)
- True wide dynamic range (WDR)
- Image Stabilizer (EIS)
- Supports ONVIF
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 5.2 ~ 156mm |
| Aperture | F1.33 ~ F4.95 |
| Iris Control | DC Iris (Hall Sensor) |
| Angular Field of View | Wide : 58.9°(H), 34.4°(V), 66.3°(D) Tele : 2.7°(H), 1.5°(V), 3.1°(D) |
| Min. Illumination | Color : 0.1 lux @ F1.33 B/W : 0.01 lux @ F1.33 |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | - |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~180°/sec (preset 420°/sec) |
| Tilt Range | 100° (-10~90°) |
| Tilt Speed | 0.02~180°/sec (preset 420°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips: 1920 x 1080(WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 4 / 2 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 24VAC, PoE IEEE 802.3at (Class 4) |
| Power Consumption | HEATER OFF 24V~, 0.8A, 13.8W, 50/60Hz PoE, IEEE 802.3at(Class 4), 13.6W HEATER ON 24V~, 1.0A, 17.6W, 50/60Hz PoE, IEEE 802.3at(Class 4), 17.2W |
| Approval | FCC, CE(50130-4), KC |
| Mechanical | |
| Dimensions | Ø200mm x 201mm (Ø7.88" x 7.91") |
| Weight | 2.54 kg (5.60 lb) |
