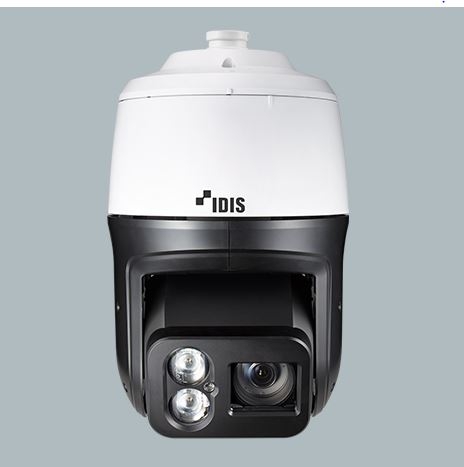

IDIS 2MP IR PTZ 36X ZOOM LOWLIGHT NDAA 5YR DC-S6286HRXL
SKU
403329
Brand
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$2,949.00
Buy Now And Earn 2949 Reward Points!
2MP 36x Lightmaster IR PTZ Camera
/ NDAA Compliant
- Easy installation with DirectIP NVR
- Full HD (1080p) resolution
- AF optical zoom lens (f=6 - 216mm), 36x zoom
- Two-way audio
- Alarm in / out
- IK10 / IP66 supports
- Built-in heater
- High-PoE, 24V AC
- Day and night (ICR)
- True wide dynamic range (WDR)
- Digital image stabilization (DIS)
- 350 m / 1,148.2ft (2ea)
- Supports ONVIF
| Video | |
| Image Sensor | 1/2" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 6 ~ 216mm |
| Aperture | F1.36 ~ F4.6 |
| Iris Control | DC Iris (Hall Sensor) |
| Angular Field of View | Wide : 57.4°(H), 33.1°(V), 65.2°(D) Tele : 1.9°(H), 1.1°(V), 2.2°(D) |
| Min. Illumination | Color : 0.02 lux @ F1.36 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 350 m / 1,148.2ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~180°/sec (preset 240°/sec) |
| Tilt Range | 200° (-10~190°) |
| Tilt Speed | 0.02~180°/sec (preset 240°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 30ips :1920 x 1080(WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 8 / 2 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -40°C ~ +55°C |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 24VAC, High-PoE (75W) |
| Power Consumption | Max 39.6W(Heater/IR on) HEATER/IR OFF 24V~, 1.6A, 26.2W, 50/60Hz High-PoE, 50-57V, 23.6W HEATER/IR ON 24V~, 2.3A, 39.6W, 50/60Hz High-PoE, 50-57V, 35.6W |
| Approval | FCC, CE(50130-4), KC |
| Mechanical | |
| Dimensions | Ø242mm x 401.8mm (Ø9.52" x 15.82") |
| Weight | 6.7kg (14.77 lb) |
IDIS 2MP IR PTZ 36X ZOOM LOWLIGHT NDAA 5YR
