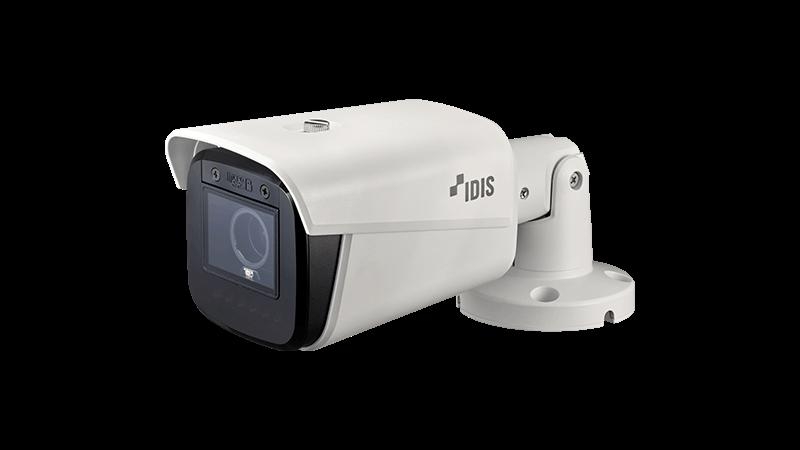

IDIS DIRECTIP 5MP OUTDOOR BULLET, 2.7-13.5MM MZ, IR, AI, LIGHTMASTER, IP67, IK10, NDAA, UP DC-T4538WRA
SKU
432451
Brand
MPN
DC-T4538WRA
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$796.00
Buy Now And Earn 796 Reward Points!
H.265 5MP Bullet Camera (LightMaster NIR) / NDAA Compliant
Easy installation with DirectIP NVR
H.265 and Intelligent Codec
PoE (IEEE 802.3af Class 3)
IR LED (40m / 131.2 ft (6ea))
IDIS Deep-Learning Analytics (IDLA)
| Image Sensor | 1/2.8" CMOS |
| Max Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Aperture | F1.4 ~ F3.2 |
| Iris Control | DC Iris |
| Angular Field of View | [4:3 mode] |
| Wide : 101 2º(H) 72 6º(V) 137 4º(D) | Wide : 101.2º(H) 72.6º(V) 137.4º(D) |
| Tele : 30 4º(H) 22 8º(V) 38º(D) | Tele : 30.4º(H) 22.8º(V) 38º(D) |
| [16:9 mode] | [16:9 mode] |
| Wide : 101 7º(H) 53 3º(V) 121 6º(D) | Wide : 101.7º(H) 53.3º(V) 121.6º(D) |
| Tele : 30 2º(H) 17º(V) 34 7º(D) | Tele : 30.2º(H) 17º(V) 34.7º(D) |
| Min Illumination | COLOR : 0.13 lux @ F1.4 |
| B/W : 0 lux (IR LED ON) | B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 40m / 131.2 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Video Out | - |
| Network | Network |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) |
| 16:9 mode : 30ips : 2592 x 1456(WDR) | 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592x1944, 1920x1440, 1280x960, 640x480 |
| 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360 | 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, |
| RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 | RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | Alarm and Event |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | Environmental |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) |
| *Starting up at above -20°C (-4°F) | *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | Electrical |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1A, 12W |
| PoE, IEEE 802 3af(Class 3), 9 7W | PoE, IEEE 802.3af(Class 3), 9.7W |
| Approval | FCC, CE, KC |
| Mechanical | Mechanical |
| Dimensions | 89.3mm X 89.3mm X 277.6mm (3.52" x 3.52" x 10.93") |
| Weight | 1.293kg (2.85lb) |
IDIS DIRECTIP 5MP OUTDOOR BULLET, 2.7-13.5MM MZ, IR, AI, LIGHTMASTER, IP67, IK10, NDAA, UP
