WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 1-3 Bedroom Houses (1-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity High
Dual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Silmultaneously communicates with multiple MU-MIMO clients

OFDMA
Silmultaneously communicates with multiple WiFi 6 clients

4 Streams
More than enough bandwidth for connected devices
Working Modes DSL, Router, Access Point

*Main Router
Supports WAN/LAN auto-sensing
Buttons RESET Button
Power 12 V ⎓ 1.2 A
Ports and Connections 1 DSL Port

Compatibility
VDSL2 / ADSL2+ / ADSL2 / ADSL

PHYSICAL
Dimensions (W×D×H) 4.13 × 4.13 × 6.57 in
(105 × 105 × 167mm)

Package Contents 1-pack
1 Deco X20-DSL Unit
1 RJ45 Ethernet Cable
2 RJ11 DSL Cables
1 External DSL Splitter

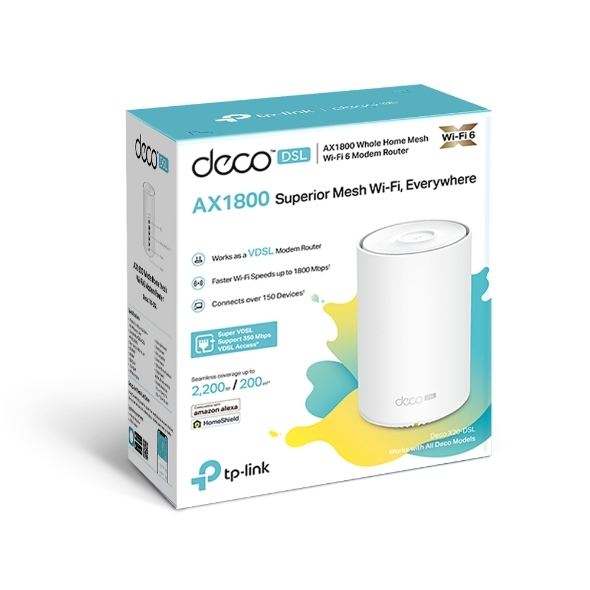

TP-Link Deco X20-DSL AX1800 VDSL Whole Home Mesh WiFi 6 Router, Up To 200 Square Meter Coverage, Dual Band, MU-MIMO, OFDMA
