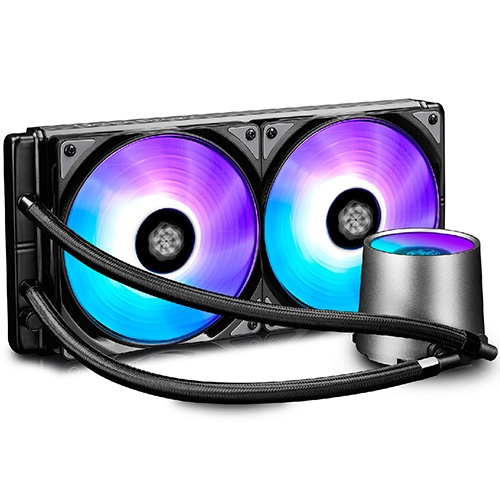

Deepcool Castle 280rgb Gamer Storm Cpu Liquid Cooler Castle 280 Rgb
No Longer Available



























Double window panes and immersive ambient lighting are designed to provide a perfect display of aesthetic illumination.
The 16.7 M true color RGB flowing light system with 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) has 36 interchangeable lighting modes.
Motherboards are supported with synchronized lighting control via addressable RGB function*
Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
An optimized E-shaped micro water channel is designed to effectively enhance heat circulation efficiency and to enlarge heat contact areas.
The ceramic axle bearings and axle cores guarantee an ultra-long service life.
It supports mainstream INTEL and AMD socket mounting, including TR4/AM4.
*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, MSI, Gigabyte.
LGA20XX/LGA1366/LGA115X
High End Desktop i9/i7
Core i7/i5/i3
Pentium G
Celeron G
TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Ryzen
APU A12/A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon X4
Technical Spec
Pump Dimensions | 91×79×71mm(L×W×H) |
Radiator Dimensions | 323×146×27mm(L×W×H) |
Radiator Material | Aluminum |
Fan Dimensions | 140×140×26mm(2pcs) |
Fan Speed | 500±200~1800±10%RPM |
Fan Air Flow | 96.7CFM |
Fan Air Pressure | 2.83mmH2O |
Fan Life Expectancy | 40000 hours |
Fan Noise Level | 19.8~35.4dB(A) |
Fan Bearing Type | Hydro Bearing |
Fan Connector | 4Pin |
Fan Rated Voltage | 12VDC |
Fan Rated Current | 0.02±15%A(20%)-0.32±10%A |
Fan Power Consumption | 3.84W |
Pump Life Expectancy | 120000 hours |
Pump Connector | 3Pin |
Pump Operating Voltage | 10.8~13.2VDC |
Pump Rated Voltage | 12VDC |
Pump Speed | 2550±10%RPM |
Pump Load Current | 0.21±10%A |
Pump Power Consumption | 2.52W |
Net Weight | 1559±10g |
LED Type | Addressable RGB LED |
LED Rated Voltage | 5VDC |
LED Rated Current | 0.48±10%A |
LED Rated Power | 2.4W |
LED Connector | 3pin(+5V-D-G) |
LED Control | M/B with 5V ADD-RGB Header |
EAN | 6933412726494 |
P/N | DP-GS-H12L-CSL280RGB |
Product Dimension
