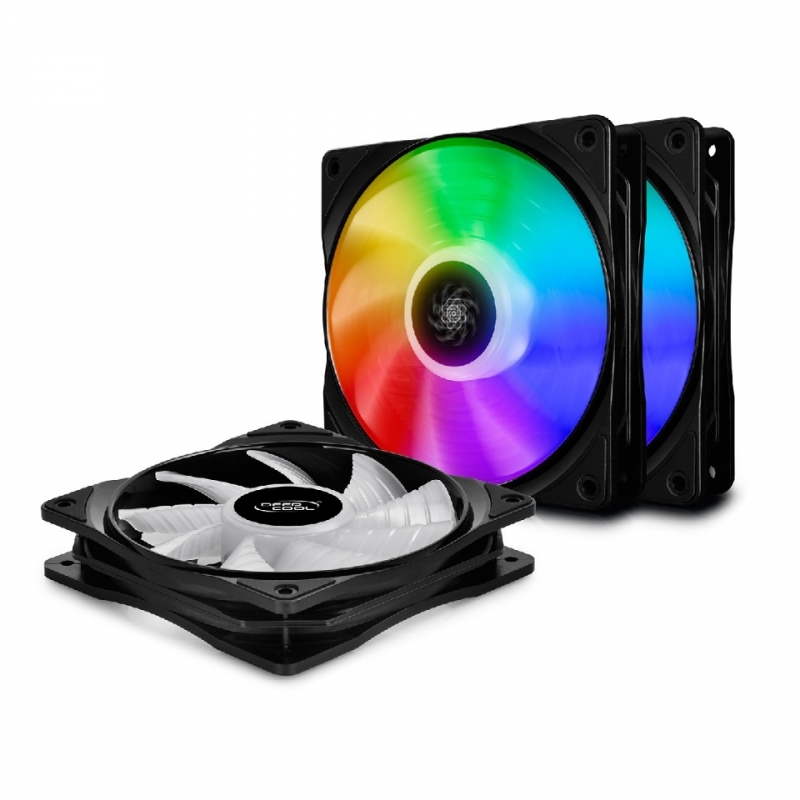

Deepcool Cf 120-3 In 1 Customizable Addressable Rgb Led Lighting Dp-Fa-Rgb-Cf120-3
SKU
272000
Brand
Warranty
1 Year Manufacturer's return to base
No Longer Available
$55.00
Buy Now And Earn 55 Reward Points!
Customizable Addressable RGB LED Lighting
Utilize 12pcs of independently programmable RGB LED lights, CF120 provides full lighting for your build, achieving magical lighting effects with MB controls include 3 dynamic modes(waves, cycles and breathing) and 3 monochrome modes (constant light, breathing and meteor), up to 8 different colors to choose from
Synchronized Control via 5V A-RGB Header on MB
Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices
Control by Using the Included A-RGB Controller
Use the included A-RGB Controller to control multiple Deepcool RGB devices, up to 6pcs
Mode
Power on/off
(brightness)
(brightness)
Speed
Better Balance on Performance & Low Noise
Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan
PWM Control
Super Silent
RGB Fan
PWM Intelligent Control
Fan speed can be intelligently controlled by MB in accordance with temperature
Technical Spec
| Fan Dimension | 120×120×25mm |
| Net Weight | 510g |
| FAN Speed | 500±200～1500±10%RPM |
| Fan Air Flow | 56.5CFM |
| Fan Air Pressure | 1.63mmH2O |
| Fan Noise Level | 17.8~27dB(A) |
| Fan Connector | 4Pin |
| FAN Rated Voltage | 12VDC |
| FAN Operating Voltage | 10.8～13.2VDC |
| FAN Starting Voltage | 7VDC |
| FAN Rated Current | 0.11A |
| FAN Power Input | 1.32W |
| Bearing Type | Hydro Bearing |
| LED Type | Addressable RGB LED |
| LED Rated Voltage | 5VDC |
| LED Rated Current | 0.48A |
| LED Rated Power | 2.4W |
| LED Connector | 3pin（+5V-D-G） |
| LED Control | M/B with 5V ADD-RGB Header |
| EAN | 6933412710332 |
| P/N | DP-FA-RGB-CF120-3 |
Product Dimension
Utilize 12pcs of independently programmable RGB LEDs for amazing display effects
*Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices
Use the included A-RGB Controller to control multiple devices
Fan speed can be intelligently controlled by MB in accordance with temperature
Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan
*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, Gigabyte
