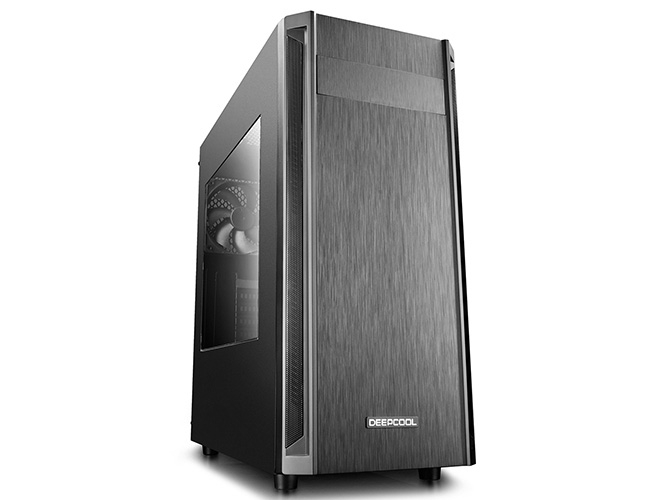

Deepcool D-shield V2 Atx Pc Case Houses Vga Card Up To 370mm D-shield V2
SKU
268913
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$65.00
Buy Now And Earn 65 Reward Points!
D-Shield V2 is perfect for gamers looking to build a small gaming PC but still wanting full compatibility with an ATX motherboard. In addition, it delivers great compatibility with VGA card up to 370 mm
D-Shield V2 supports cooling for enthusiast-level components with provision for mounting radiators and an unobstructed airflow path
Compatibility with Liquid Cooling systems
Top: 120/140/240mm(240mm without CD-ROM)
Front: 120/140/240/280/360mm(360mm radiator without CD-ROM installed)
Rear: 120mm
Front: 120/140/240/280/360mm(360mm radiator without CD-ROM installed)
Rear: 120mm

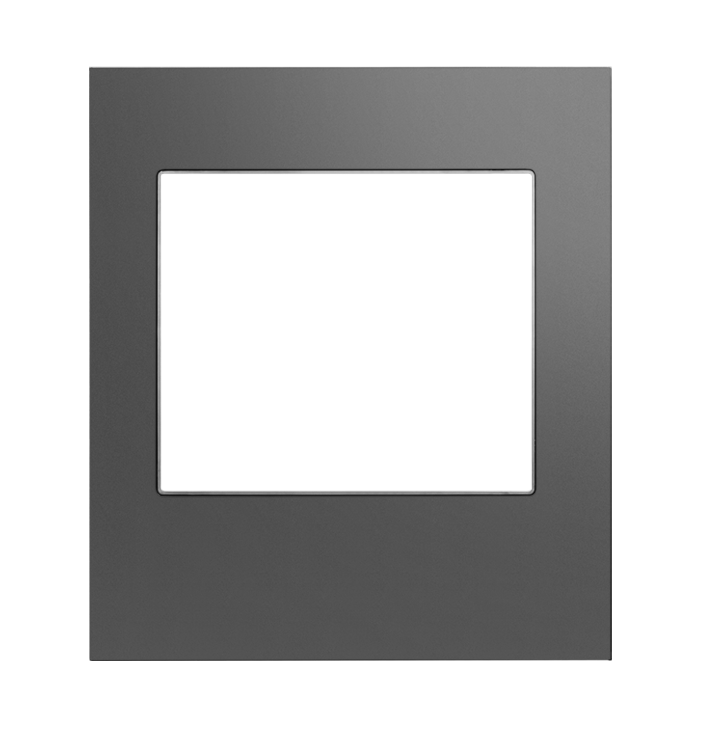

Side window perfectly reveals system interior. Spacious configuration and rationalized port and hole layout enhance cable management
At the top of the case a Magnet-mounted dust filter provides users with easy access for removal and cleaning
A compact ATX computer case
Supports installation of 120/140/240/280/360mm radiator liquid cooling system at front (360mm radiator without CD-ROM installed)
Supports installation of 120/140/240mm radiator liquid cooling system at top (240mm without CD-ROM)
Supports installation of 120mm radiator liquid cooling system at rear
Supports 370mm (MAX) long Graphic Card installation
Magnetic dust filter at top, easy for cleaning
User-friendly internal design for easy installation and cable management
Technical Spec

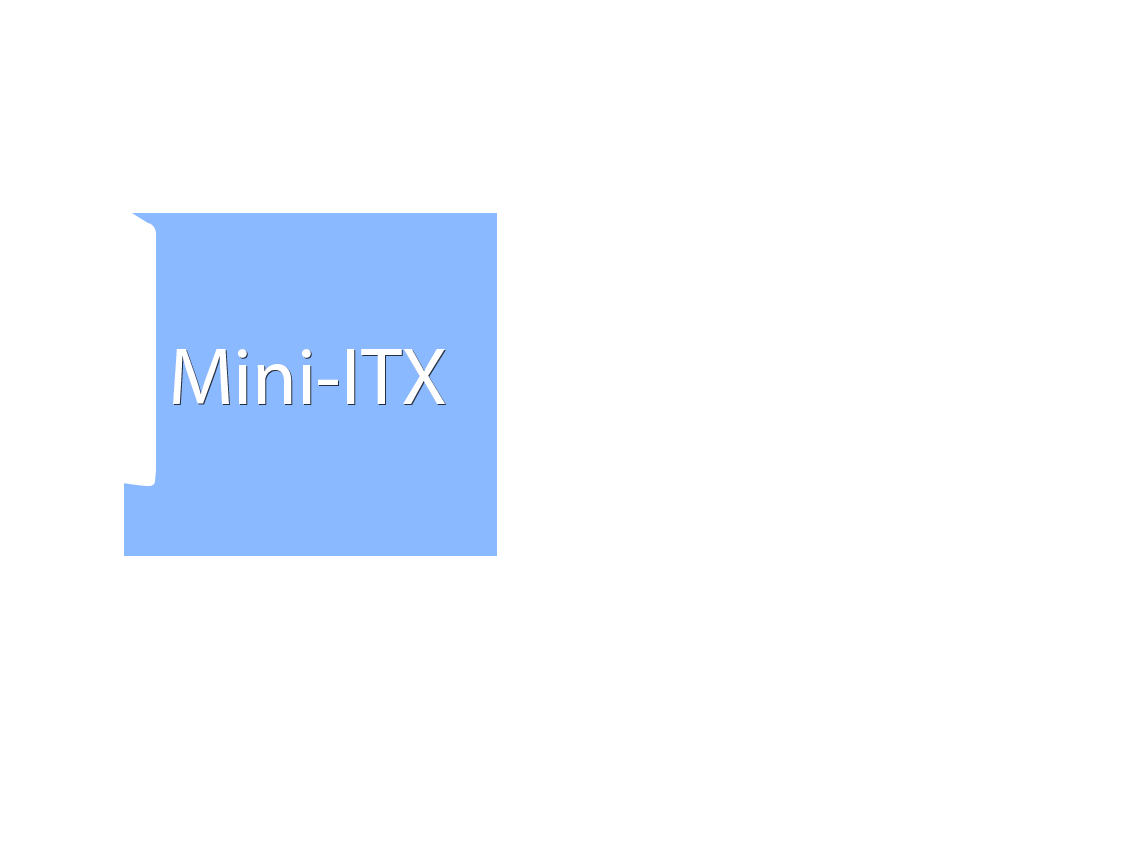

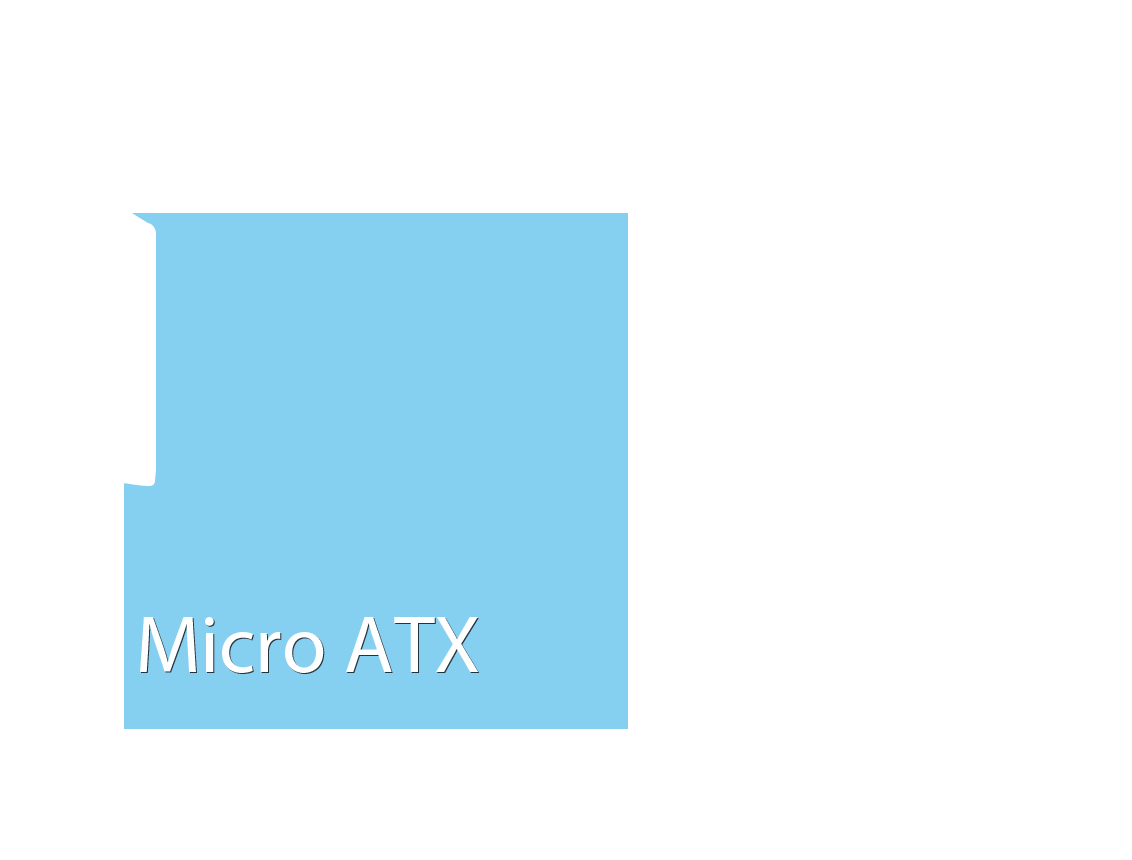

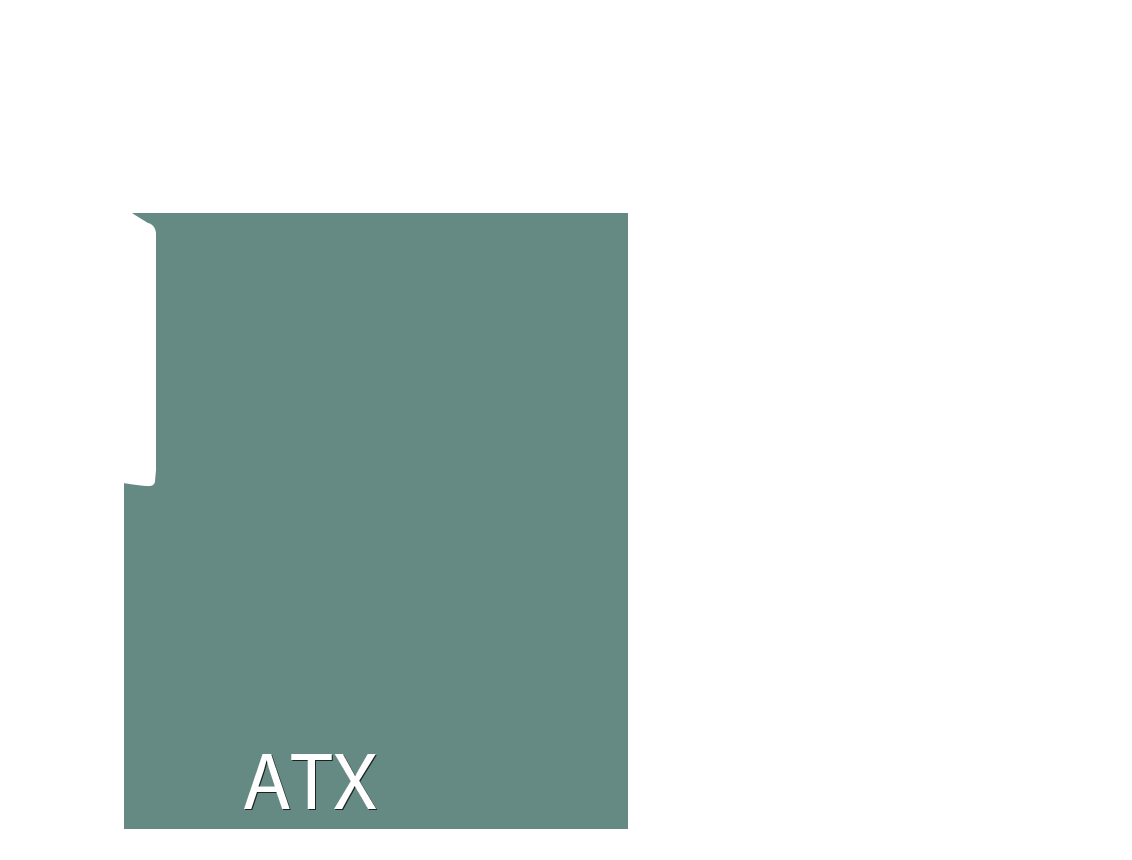

| Motherboards | ATX/Micro ATX/Mini-ITX |
| Materials | ABS+SPCC (Panel thickness: 0.6mm) |
| Case Type | Middle Tower |
| Product Dimension (LxWxH) | 438×210×477mm |
| Carton Dimension (LxWxH) | 532×285×520mm |
| Net Weight | 5.00 KG |
| 5.25" Drive Bays | 1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+2 |
| I/O Panel | 1×USB3.0/2×USB2.0/1xAudio(HD)/1xMic |
| Expansion Slots | 7 |

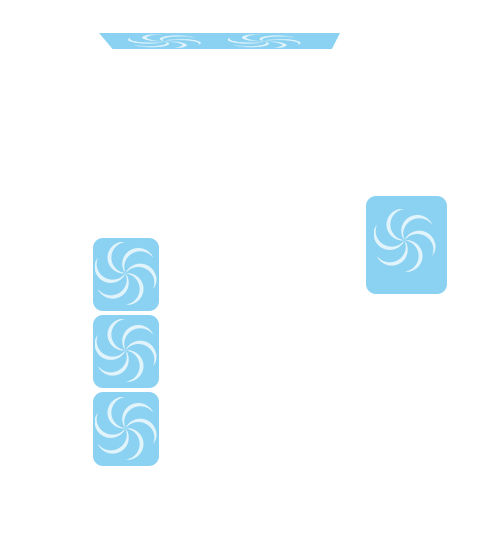

| Cooling Fans | Pre-installed: Rear: 1×120mm fan; Optional: Front: 3×120mm or 3×140mm(Without CD-ROM installed), 2×120mm or 2×140mm(With CD-ROM installed), Top: 2×120/140mm |
| Liquid Cooler Support | Front: 120/140/240/280/360mm(360mm without CD-ROM); Top: 120/140/240mm(240mm without CD-ROM); Rear: 120mm |
| CPU Cooler Height Limit | 168mm |
| VGA Length Limit | 370mm |
| Power Supply Type | ATX PS2 (Length less than 170mm) |
| Cable Management | 25mm |
| EAN | 6933412713487 |
| P/N | DP-ATX-DSHIELD-V2 |
Product Dimension
