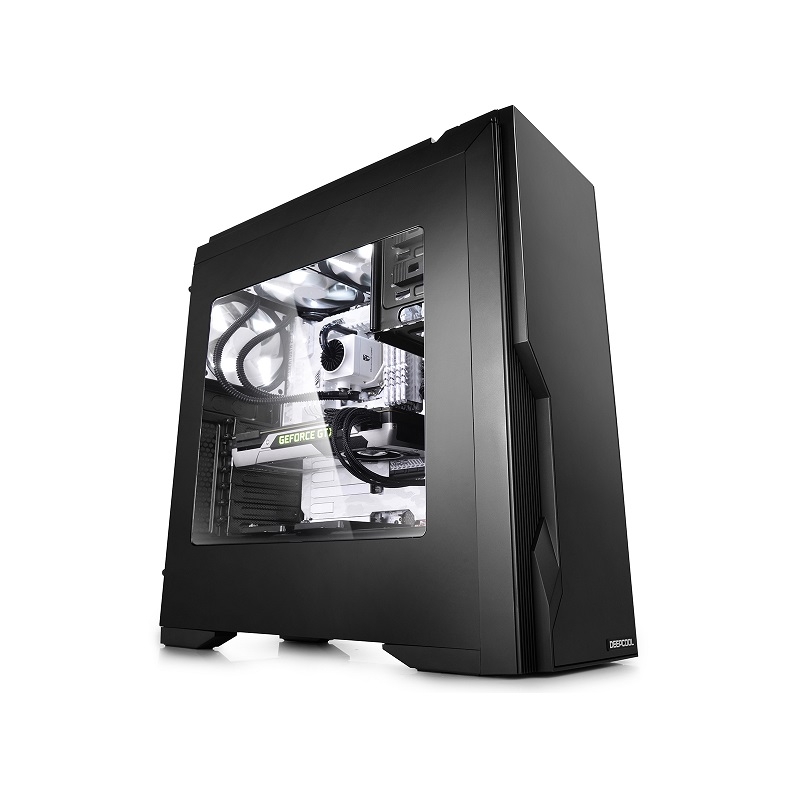

Deepcool Dukase V3 Case Dukase V3
No Longer Available
Easily-removable suspended top panel for easy cleaning and enhanced cooling.
Support top mounting of a 120/240/140/280 mm Liquid Cooler (max dimension: L310 × W140 × H56 mm).
Compatible with split Liquid Cooling System. Movable water pump & tank mounting holes have been provided.
One fan-speed adjustment switch capable of controlling 3 fans at once;
High-quality electrostatic powder biomimetic coating provides superior texture.
100% visibility side window perfectly reveals system interiors.
Spacious configuration and rationalized port and hole layout enhance cable management.
ODD-free metallic front panel provides a sleek vibe while providing improved ventilation for the entire chassis.
Independent mounting positions for 2.5-inch SSD.
1 extra set of 2.5-inch drive mounting holes.
3.5-inch HDD bays constructed using novel metallic materials.
Specialized LED strip mounting slots to light up your rig.
Wider opening to facilitate CPU cooler installation.
PSU rubber buffer and dust filters.
1x USB 3.0 + 1x USB 2.0 ports.
1x 120 mm blue LED fan and 1x 120 mm black fan (pre-installed)
NOTE: The top panel must be first removed to remove the front panel











120/240/140/280 mm liquid cooler
L×W×H within 310 x 140 x 56 mm




















Technical Spec
Motherboards | ATX/MICRO ATX/MINI-ITX |
Materials | SPCC+PLASTIC (ABS)(Panel thickness: 0.7mm) |
Product Dimension | L482.7×W202×H504mm |
Weight | Net.: 7.03kg Gross: 8.27kg |
5.25" Drive Bays | 2 |
3.5" Drive Bays | 1 External (for floppy drive or 3.5" card-reader) |
3.5"/2.5"Drive Bays | 2 |
2.5" Drive Bays | 3 |
I/O Panel | 1×USB3.0/1×USB2.0/Audio(HD)×1/Mic×1 |
Expansion Slots | 7 (slot covers fixed by screws for easy removing and reuse) |
Cooling Fans | Pre-installed: Rear: 1×120mm blue LED fan, Front: 1×120mm black fan; Optional: Front: 1×120mm or 1×140mm Top: 2×120/140mm |
Power Supply Type | ATX PS2(Length less than 170mm) |
CPU Cooler Compatibility | 160mm height Liquid Cooler: 120/240/140/280mm at top, 120mm at rear |
VGA Compatibility | 390mm |
EAN | 6933412713197 |
P/N | DP-ATX-DUKBK-V3 |
Product Dimension
