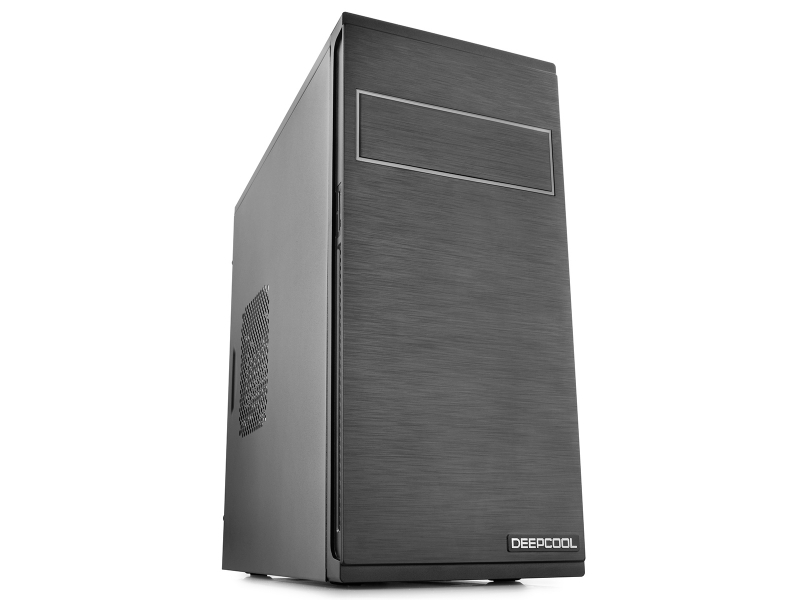

Deepcool Frame Micro Atx Case L392 X W175 X H353.5mm Frame
No Longer Available
New front panel with special effect of metal-like wire-drawing
1*USB 3.0 + 2*USB 2.0 Ports
With Card-reader (TF/SD)
Titanium color frame, extra red color frame available as option
Fully black painted interior with 0.5mm panel thickness
Support 320mm (MAX) long Graphic Card installation
- Motherboards: MATX/MINI-ITX
- Materials: SPCC+PLASTIC (ABS) (Panel thickness: 0.5mm)
- Dimension: Product: L392*W175*H353.5mm (Package: 390*217*435mm)
- Net Weight: 2.9KG (Gross Weight: 4 KG)
- 5.25" Drive Bays: 1 (External)
- 3.5" Drive Bays: 3 (Internal)
- 2.5" Drive Bays: 3 (Internal)
- I/O Panel: 1×USB3.0/2×USB2.0/Audio×1/Mic×1
- Expansion Slots: 4
- Cooling Fans All Optional:
- Front: 1×120mm, side: 1×120mm, Rear: 1×80/90mm
- Power Supply Type: ATX PS2
- CPU Cooler Compatibility: 145mm height /Liquid Cooler: 120mm at front
- VGA Compatibility: 320mm length
Details:
Frame is micro ATX case with high compatibility. Its small form factor design combine with various drive bays, USB ports and additional card-reader has made frame an ideal choice for users who are seeking for computer case with powerful functions but still can fit in limited space.
Cool-looking Front Panel
The unique surface treatment makes frame a cool case with wire-drawing effect that can not only satisfy your demand for a good appearance, but also bring you a nice touch sensation.
An addition red color frame is included to give you one more color choice.
Space Contracted Design
Classical small case management L392xW175xH353.5mmm case dimensions support graphics card installation up to 320mm length
Good Heat Ventilation Performance
Optimized airflow design & cooling system
Fan mounting holes: Front: 1x120mm, Side: 1x120mm, Rear: 1x80/90mm
Detailed Designs
One card-reader (TF/SD)
Attachable 5.25', 3.5' and 2.5' drive bays
One USB 3.0 + two USB 2.0 ports
Specifications:
- Motherboards: MATX/MINI-ITX
- Materials: SPCC+PLASTIC (ABS) (Panel thickness: 0.5mm)
- Dimension: Product: L392*W175*H353.5mm (Package: 390*217*435mm)
- Net Weight: 2.9KG (Gross Weight: 4 KG)
- 5.25" Drive Bays: 1 (External)
- 3.5" Drive Bays: 3 (Internal)
- 2.5" Drive Bays: 3 (Internal)
- I/O Panel: 1×USB3.0/2×USB2.0/Audio×1/Mic×1
- Expansion Slots: 4
- Cooling Fans All Optional:
- Front: 1×120mm, side: 1×120mm, Rear: 1×80/90mm
- Power Supply Type: ATX PS2
- CPU Cooler Compatibility: 145mm height /Liquid Cooler: 120mm at front
- VGA Compatibility: 320mm length
