Deepcool Gamer Storm Captain 360ex Aio Liquid Cooling Am4 Captain 360ex A4
No Longer Available
Features
- Enhanced high-density water micro-channels with powerful autonomous circulation system provides 10% more efficient heat dissipation.
- Amazing glass design &patented visual external-circulation system.
- Updated tool-free installation solution with 100% metal clips for solid and secure attachments.
- Unique TF 120 double-blade fans offer a higher air pressure for the radiator and achieves more efficient heat dissipation.
- Upgraded anti-explosion rubber tube manufactured using an anti-corrosion, crush resistant & thermostable material.
- Closed impeller driven by powerful three-phase induction motor delivering stronger liquid flow & pressure.
- Ceramic bearing with a long service life of MTBF 120,000 hours.
- Insanely awesome steam punk appearance & unique reactor-style pump housing.
- Bionic red LED lighting that breathes in life during operations.
Overview
CAPTAIN EX Series has preserved the essential key features from the previous CAPTAIN series: Steam Punk appearance with visible in-built liquid flow and LED lighting elements. CAPTAIN EX Series is constructed using an upgraded anti-explosion rubber material and is furnished with high-density water micro-channels, zero-noise TF 120 double-blade fan, and all-new tooling free installation to dramatically enhance heat dissipation performance in terms of stability, silence, efficiency, and convenience.

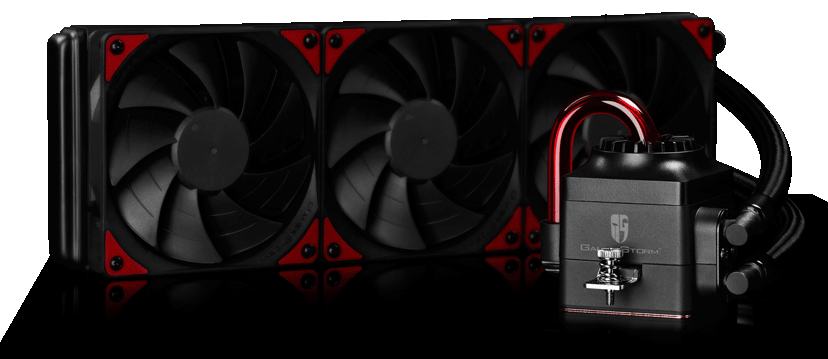

Insanely Awesome Steam Punk Appearance
Unique reactor-style pump housing. Ceramic bearing with a long service life of MTTF 120,000 hours. Updated tool-free installation with 100% metal clip for solid and secure attachment.
Perfect Aesthetics
Classic black-red version provides shock & awe visuals CPU cooling while fulfilling your aesthetic demands.

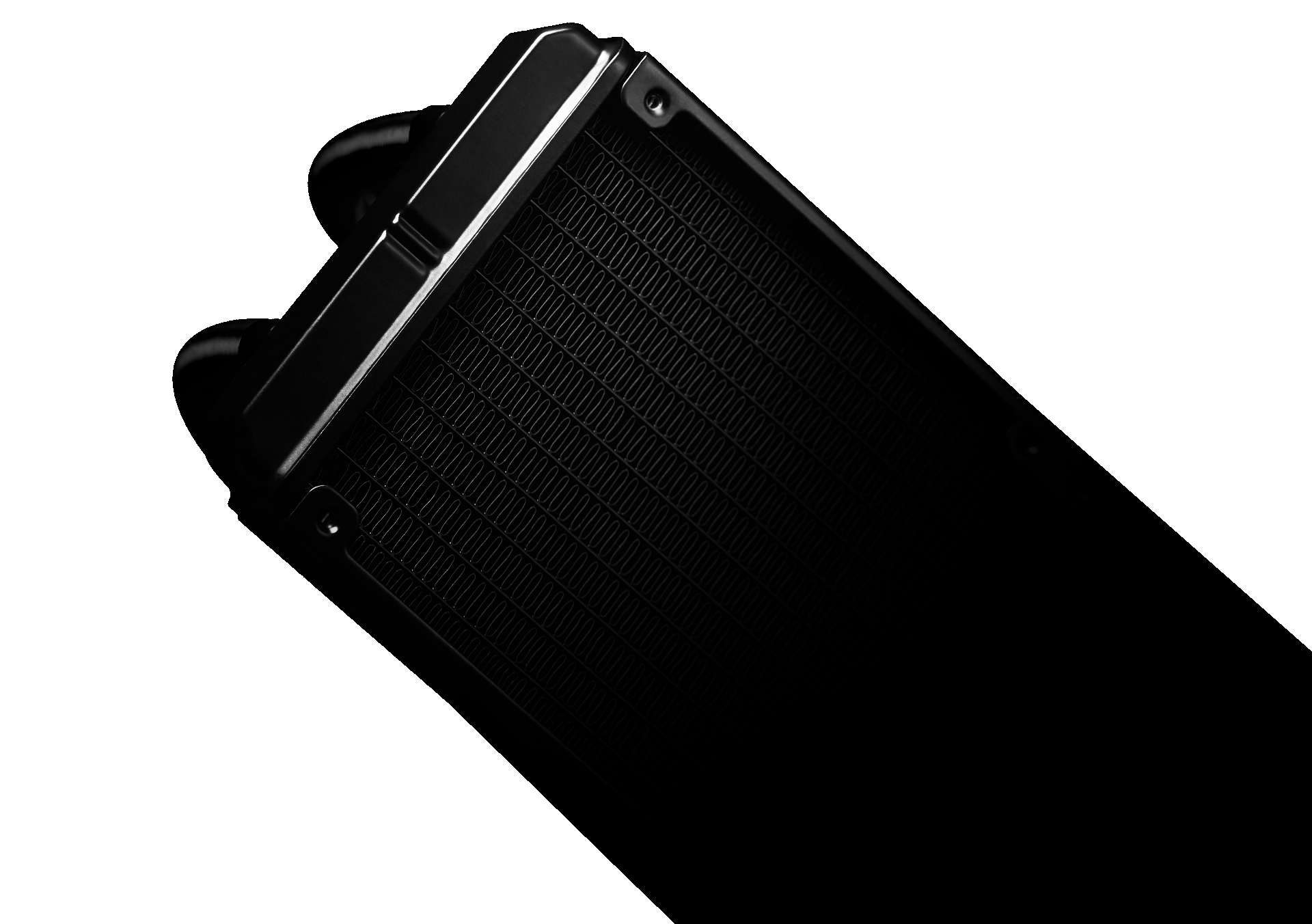

High-Density Aluminum Fins
Optimized 360 mm aluminum fins array allows lower fan speeds and reduced noise. Provided with built-in standard mounting holes for easy switching to the new 120 mm fan.
Latest Technologies and Definitive Choice

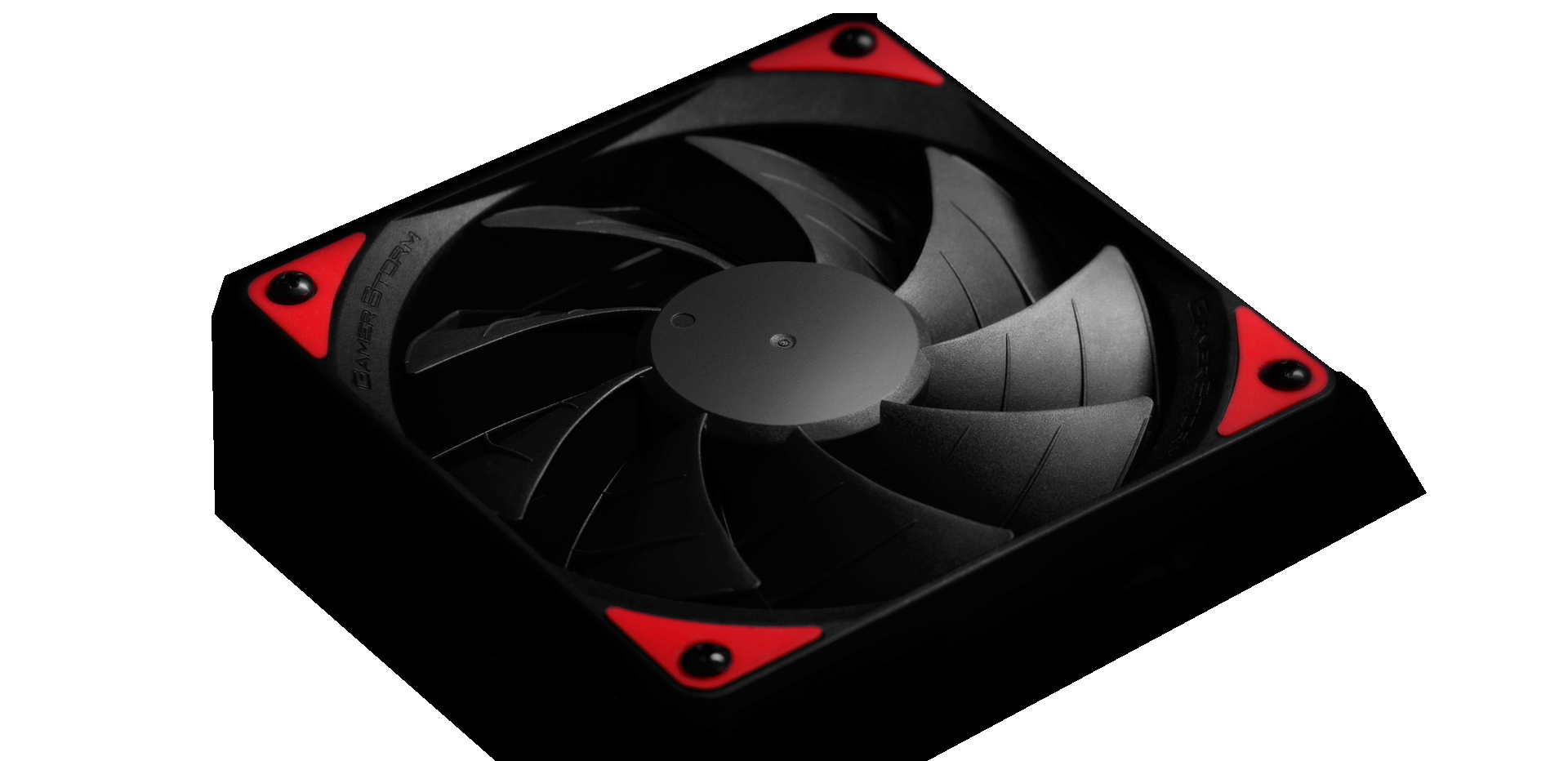

Unique TF 120 double-blade fan to offer a higher air pressure to the radiator and achieve more efficient heat dissipation.
Multiple-Clip Support
Intel:LGA20XX/LGA1366/LGA115X
AMD: AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Enhanced high-density water micro-channels with powerful autonomous circulation system provides 10% more efficient heat dissipation.

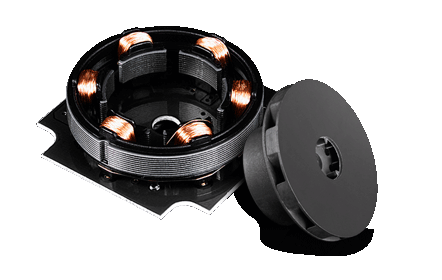

Closed impellers driven by powerful three-phase induction motors deliver stronger liquid flow and pressure.

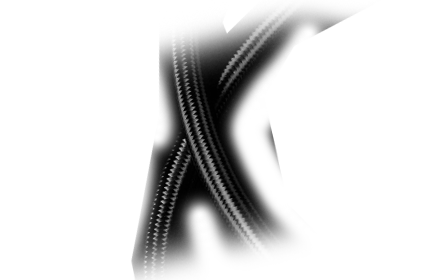

Upgraded anti-explosion rubber tube manufactured using an anti-corrosion, crush resistant and thermostable material.
Dimension
Application For
LGA20XX/LGA1366/LGA115X
High End Desktop i7
Core i7 Extreme/i7/i5/i3
Pentium G
Celeron G
AM4 (with "AM4 Ready" Sticker)
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Note: AM4 Kit availability may differ by region, please check with your local retailer for more information.
Technical Spec
| Fan Dimensions | 120×120×25mm(3PCS) |
| Net Weight | 1693±10g |
| Fan Speed | 500±200-1800±10%RPM |
| Fan Air Flow | 229.56CFM（MAX） |
| Fan Air Pressure | 3.31mmH2O(MAX) |
| Fan Life Expectancy | 50000 hours |
| Fan Noise Level | 17.6~31.3dB(A) |
| Fan Bearing Type | Hydro Bearing |
| Fan Connector | 4Pin |
| Fan Rated Voltage | 12VDC |
| Fan Rated Current | 0.12±10%A(MAX) |
| Fan Power Consumption | 1.44W |
| Main system Dimensions | 92.5×93×85mm |
| Radiator Dimensions | 395×120×27mm |
| Radiator Material | Aluminum |
| Pump Life Expectancy | 120000 hours |
| Pump Connector | 3Pin |
| Pump Operating Voltage | 6~13.8VDC |
| Pump Rated Voltage | 12VDC |
| Pump Speed | 2300±10%RPM |
| Pump Current | 0.2A（Max） |
| Pump Power Consumption | 2.4W |
| Tubing Length | 465mm |
| EAN (AM4) | 6933412726036 |
| P/N (AM4) | DP-GS-H12L-CT360A4 |
| EAN | 6933412725831 |
| P/N | DP-GS-H12L-CT360EX |

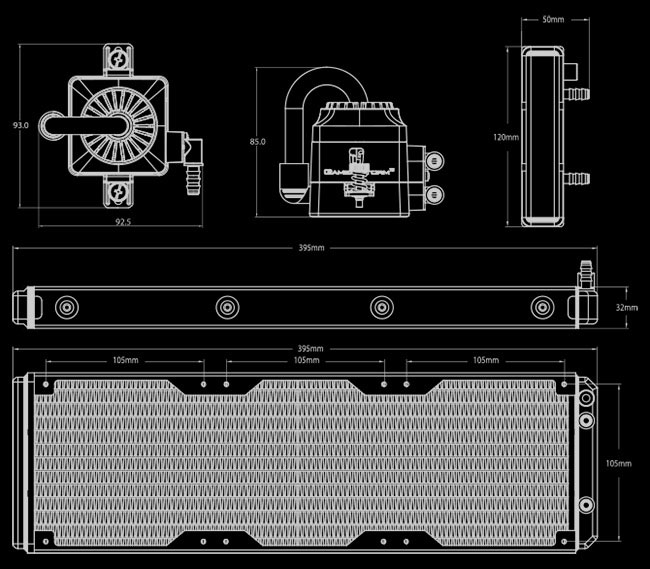

Product Dimension
