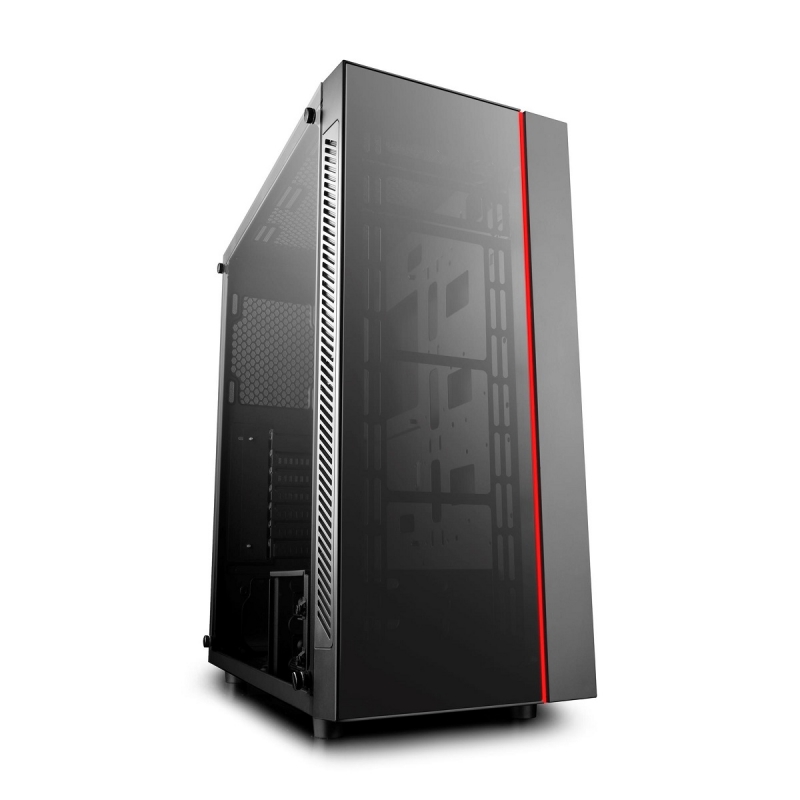

Deepcool Matrexx 55 Atx Minimalist Tempered Glass Case - Fits E-atx Mb Dp-atx-matrexx55
No Longer Available
A compact ATX computer case supports motherboards up to E-ATX;
Full sized 4mm thickness, tempered glass side panel and the front panel give the case a unique look and perfectly show off your inner structure;
The RGB lighting strip in the front, is easily controlled by manual button or via motherboard; extra connectors are ready for motherboard SYNC control with any combination with other DEEPCOOL/GAMER STORM brand 12V RGB devices;
Supports installation of 120/240/360mm radiator liquid cooling system in the front, 120/140/240/280mm radiator liquid cooling system on top and 120mm radiator liquid cooling system in the back;
Supports 370mm (MAX) long Graphic Card installation;
Optimized airflow is guaranteed with large air intakes on two sides of the front panel, keeping your components cool;
The 210mm wide tower compartment with 23mm clearance is perfect for cable management;
A magnetic dustproof net on top and dust-filter in the front and bottom.
Technical Spec
| System Board | E-ATX/ATX/Micro ATX/Mini-ITX |
| Case Type | Middle Tower |
| Materials | ABS+SPCC (Steel panel thickness: 0.6mm) Tempered Glass side panel, front panel (thickness: 4mm） |
| Product Dimensions (L×W×H) | 440×210×480mm |
| Net Weight | 6.97 kg |
| Gross Weight | 8.01 kg |
| 5.25" Drive Bays | 0 |
| 3.5"/2.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+2 |
| I/O Ports | 1×USB3.0/2×USB2.0/1×Audio(HD)/1×Mic,1×RGB Button |
| Expansion Slots | 7 (slot covers fixed by screw for reuse) |
| Power Supply Type | ATX PS2 (Length less than 170mm) |
| Cable Management | 23mm Clearance |
| CPU Cooler Height Limit | 168mm |
| VGA Length Limit | 370mm |
| Cooling Fans Support | Pre-installed: None. Optional: Rear: 1×120mm; Front: 3×120mm; Top: 2×120/ 2×140mm |
| Liquid Cooler Support | Front: 120/240/360mm radiator; Top: 120/140/240/280mm radiator; Rear: 120mm radiator |
| Carton Dimension (L×W×H) | 523×277×514mm |
| EAN | 6933412713616 |
| P/N | DP-ATX-MATREXX55 |
Product Dimension
Details:
MATREXX 55 is Deepcool’s latest addition to its hugely successful range of computer cases; it is a compact ATX case in size but still supports the installation of an E-ATX motherboard thanks to its creative internal structural design. The MATREXX 55 has a full-sized 4mm thick tempered glass side-panel and a stylish front panel that is 75% glass, helps to show off your rig’s innards perfectly. With its own custom-made RGB strip equipped on its front panel, its well-designed air flow, its strong liquid cooler support and an outstanding price to performance ratio, get ready for the MATREXX REVOLUTION.
Tempered Glass
With a full-size 4mm thick tempered glass side-panel and a 75% glass front panel, showing off your rig’s hardware has never been easier.
Air-Intake and Exhaust
MATREXX 55 enjoys extreme cooling performance thanks to its enlarged air-intake areas on both sides of the front panel and perfectly designed air-exhaust at its rear and top panels.
RGB Lighting
The RGB lighting strip installed at the front is easily controlled by a manual button or through the motherboard; extra connectors are available for motherboard synchronisation with any combination of other DEEPCOOL/GAMER STORM branded 12V RGB devices such as coolers or fans.
Cooler Support
Supports the installation of a 120/140/240/280/360mm radiator liquid cooling system at the front, a 120/140/240/280mm radiator liquid cooling system at the top and a 120mm radiator liquid cooling system at the rear.
Supports the installation of 1*120mm fan at rear; 3*120mm or 3*140mm fan at front; 2*120/ 2*140mm fan at top.
E-ATX/ATX/Micro ATX/Mini-ITX M/B Installation.
Power Supply: ATX PS2 (length less than 170mm).
210mm wide tower compartment with 23mm clearance for cable management.
1 * USB 3.0 / 2 * USB2.0 /Audio (HD) / Mic / Reset / RGB Button / Power
Specifications:
- Motherboards: E-ATX/ATX/Micro ATX/Mini-ITX
- Case Type: Mid-tower
- Materials:
- ABS+SPCC (Steel panel thickness: 0.6mm)
- Tempered Glass side panel, front panel (thickness: 4mm
- Product Dimensions (LxWxH): 440×210×480mm
- Net Weight: 6.80 Kg
- Gross Weight: 7.85 kg
- 5.25" Drive Bays: 0
- 3.5" Drive Bays: 2
- 2.5" Drive Bays: 2+2
- I/O Panel: 1×USB3.0/2×USB2.0/1xAudio(HD)/1xMic, 1×RGB Button
- Expansion Slots: 7
- Cable Management: 23mm clearance
- Cooling Fan Support:
- Pre-installed: None. Optional: Rear: 1×120mm;
- Front: 3×120mm or 3×140mm; Top: 2×120/ 2×140mm"
- Liquid Cooler Support:
- Front: 120/140/240/280/360mm radiator
- Top: 120/140/240/280mm radiator; Rear: 120mm radiator
- Power Supply Type: ATX PS2 (Length less than 170mm)
- CPU Cooler Height Limit: 168mm
- VGA Length Limit: 370mm
- Carton Dimension (LxWxH): 523×277×514mm
- EAN: 6933412713616
- P/N: DP-ATX-MATREXX55
