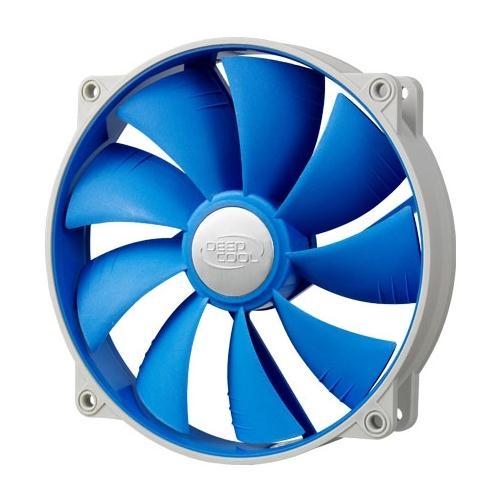

Deepcool Ultra Silent 140mm X 25mm Ball Bearing Fan With Anti-vibration Frame Sf-uf140
SKU
268969
Brand
Warranty
1 Year Manufacturer's return to base
No Longer Available
$21.00
Buy Now And Earn 21 Reward Points!
Design
You may consider several aspects when choosing a case fan, UF 140 is one which has more features than you expect. The special fan blade design with AACC Technology (Airflow Auto-Control Channel) causes the airflow to be uniform; dual ball bearings ensure the fan has a smooth rotation and long lifespan.
Silent Operation
The main structure is made of durable plastic to maintain strength. The outside is covered with soft and elastic TPE material, which can absorb maximum operating vibration. These features, together with dual ball bearings, keep the fan operating quietly.
High Performance
This fan can push up to 71.8 CFM, which is sufficient to cool down even high-end rigs.
PWM Control
The fan speed is auto-controlled by a PWM Control System which reduces power consumption and noise level.
Features
- Strong plastic frame with soft elastic TPE cover absorbs operating vibrations
- Special fan blade design offers a unique visual effect when operating
- Dual ball bearings offer smooth rotation and long lifespan
- Super silent with generous airflow
Specifications
Applications:Computer case cooling
Power supply cooling
Technical Specs:
| Overall Dimensions | Net Weight | Bearing Type | Rated Voltage |
| 140mm Diameter x 26mm Width | 5.8oz (167g) | Ball Bearing | 12VDC |
| Operating Voltage | Started Voltage | Rated Current | Power Input |
| 10.8 - 13.2VDC | 7VDC | 0.13A ± 10% (Max.) | 1.56W |
| Fan Speed | Max. Air Flow | Noise | |
| 700RPM ± 200 - 1200RPM ± 10% | 71.8CFM | 17.6 - 26.7dB(A) | |
