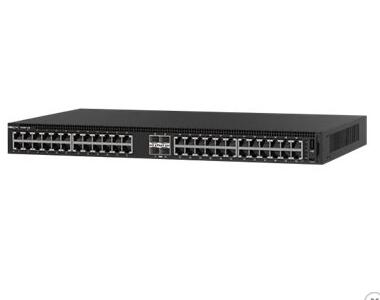

Dell N1148P-On L2 Managed Switch Gbe(48) Poe(24) 10Gbe Sfp+(4) Stack(4) 3Y Pro+ 210-Ajiv

Rated /5 based on customer reviews

SKU: 275760

Brand: Dell

Manufacturer Link

MPN: 210-AJIV

Warranty: 1 Year Manufacturer's return to base

Availability: Preorder 2-3 weeks

Freight Estimate:

$1,866.00
Buy Now And Earn Reward Points!
Qty:
Modernize with open networking All N-Series switches include Dell EMC Networking OS 6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators. In addition to supporting the Open Network Install Environment (ONIE) allowing for installation of alternate network operating systems, the N1100 switch series simplifies deployment, configuration and management by:
  • Offering a more flexible choice for your network by uniting products with the latest open standard protocols
  • Utilizing one common command line interface (CLI) and graphic user interface (GUI) using a well-known command language
  • Promoting greater interoperability through interfaces with Cisco's Rapid Per VLAN Spanning Tree (RPVST+) and devices using Cisco Discovery Protocol (CDP)
  • Integrating with industry-leading management tools for a cohesive wired and wireless network
Designed for efficiency Built to help keep operating costs down, the N1100 Series can operate at temperatures up to 113°F (45°C) to help reduce cooling costs. Improve your overall efficiency with these great features:
  • Fanless operation in 8-, 24-, and 48-port models (N1108T-ON, N1124T-ON, and N1148T-ON)
  • Variable speed fan control available on 48-port PoE model (N1148P-ON)
  • Energy-efficient Ethernet and low-power PHYs to help reduce power to inactive ports and idle links
Deploy with confidence With high throughput and capacity to handle unexpected workloads, the N1100 Series switches are ideal solutions for fast-growing GbE networks that require high-density aggregation with seamless redundancy and availability. Take advantage of the following features:
  • Data rates up to 176Gbps (full duplex) and a forwarding rate of up to 164Mpps
  • Four 10GbE SFP+ ports for high-speed uplinks and a stacking architecture up to four units at 40Gbps
  • Switch stacks up to 196 1GbE ports that can be managed from a single screen or IP address
Basic
Brand Name: Dell EMC
Ethernet Technology: 10 Gigabit Ethernet
  Gigabit Ethernet
Expansion Slot Type: SFP+
Form Factor: Rack-mountable
Layer Supported: 2
Manageable: Yes
Media Type Supported: Optical Fiber
Network Technology: 10/100/1000Base-T
  10GBase-X
Number of Total Expansion Slots: 4
Port/Expansion Slot Details: Gigabit Ethernet
Power Source: PoE+
Product Family: N1100
Product Type: Ethernet Switch
Redundant Power Supply Supported: No
Stack Port: Yes
Total Number of Network Ports: 48
General Information
Brand Name: Dell EMC
Manufacturer Part Number: 210-AJIV
Manufacturer Website Address: http://www.dell.com.au
Manufacturer: Dell Technologies
Product Model: N1148P-ON
Product Name: Networking N1148P-ON Switch
Product Series: N1100
Product Type: Ethernet Switch
I/O Expansions
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Number of Total Expansion Slots: 4
Shared SFP Slot: No
Interfaces/Ports
Modular: Yes
Port/Expansion Slot Details: 10 Gigabit Ethernet
  Gigabit Ethernet
Stack Port: Yes
Total Number of Network Ports: 48
Uplink Port: Yes
Management & Protocols
Manageable: Yes
Media & Performance
Ethernet Technology: 10 Gigabit Ethernet
  Gigabit Ethernet
Media Type Supported: Optical Fiber
  Twisted Pair
Network Technology: 10/100/1000Base-T
  10GBase-X
Miscellaneous
Environmentally Friendly: Yes
Network & Communication
Layer Supported: 2
Physical Characteristics
Compatible Rack Unit: 1U
Depth: 254 mm
Form Factor: Rack-mountable
Height: 44.5 mm
Weight (Approximate): 4.17 kg
Width: 431.8 mm
Power Description
Power Source: PoE+
Redundant Power Supply Supported: No
