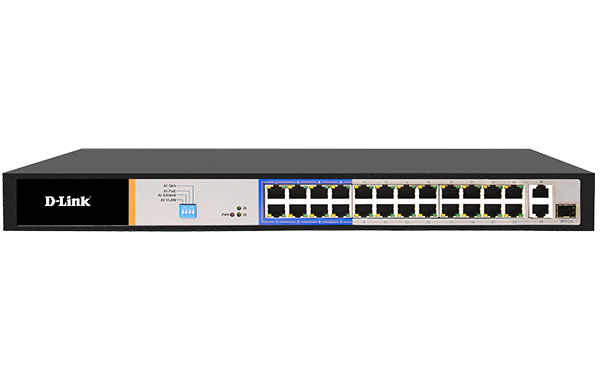

D-Link (DES-F1026P-E) 26-Port PoE Switch with 24 10/100Mbps Long Reach PoE+ Ports

SKU
368517
Brand
MPN
DES-F1026P-E
Warranty
Standard Manufacturer's Warranty
Availability
Preorder 3-4 weeks
Freight Estimate
$362.00
Buy Now And Earn 362 Reward Points!

QUICK OVERVIEW

and 2 Gigabit Uplinks with Combo SFP. PoE budget 250W.

General Information

Manufacturer
D-Link Systems, Inc
Manufacturer Website Address
http://www.dlink.com.au
Brand Name
D-Link
Product Model
DES-F1026P-E
Product Name
250M 24-Port Fast Ethernet PoE Switch with 1 Gigabit Combo Uplink Port
Marketing Information

Built for your Need

Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, AP etc

Up to 250m PoE and Data Transmission

Equipped with PoE extend technology, DES-F1026P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution

6KV Surge Protection

D-Link 250M is enhanced with 6KV surge protection effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position

Enhanced with VLAN Function

With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance

Enhanced with Video QoS

Improve the Video Packet Priority

Create high priority for video streaming, perfect solution for IP camera/CCTV

Intelligent Detection

Automatically Detect unresponsive PoE device and reboot the device for recovery

Product Type
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports
24
Uplink Port
Yes
Modular
Yes
Port/Expansion Slot Details
24 x Fast Ethernet PoE+
Port/Expansion Slot Details
2 x Gigabit Ethernet TP/SFP Combo

Media & Performance

Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Ethernet Technology
Fast Ethernet
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100Base-T
Network Technology
10/100/1000Base-T
Network Technology
1000Base-X

I/O Expansions

Number of Total Expansion Slots
1
Expansion Slot Type
SFP (mini-GBIC)
Shared SFP Slot
Yes
Number of SFP Slots
1

Network & Communication

Layer Supported
2

Power Description

PoE (RJ-45) Port
Yes
PoE Budget
250 W
Power Source
AC Adapter

Physical Characteristics

Form Factor
Desktop
Height
44 mm
Width
440 mm
Depth
180 mm
Weight (Approximate)
2.80 kg
