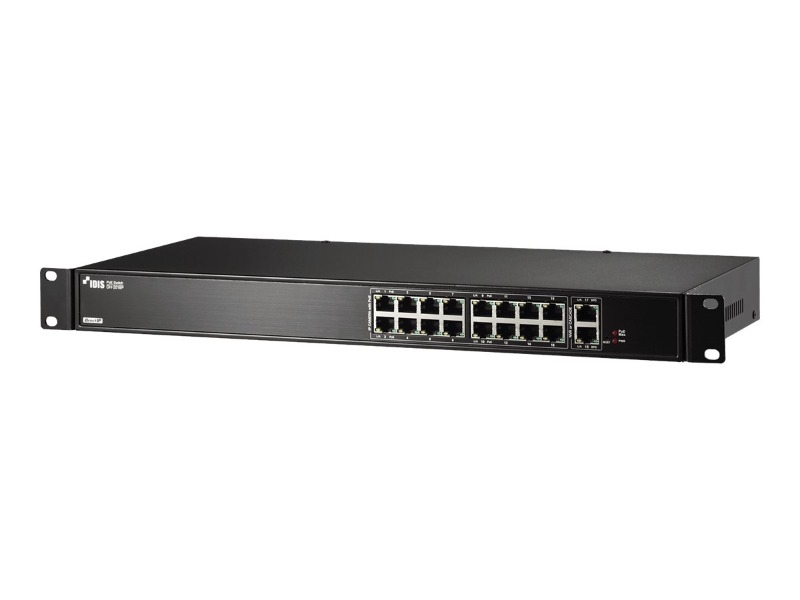

IDIS 16PORT UNMANAGED POE SWITCH, 3YR DH-2018P
SKU
403350
Brand
MPN
DH-2018P
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$819.00
Buy Now And Earn 819 Reward Points!
DirectIP® PoE Switch
- Individual port data transmission to DirectIP® NVR
- PoE (IEEE 802.3af, IEEE 802.3at) compliant
- Maximum per-device PoE delivery of 140W available for 1~16 RJ45 ports
- Central power control for greater network utility
- Supports 16 RJ45 ports
| Network | |
| Service Port | 16 RJ45 Connectors (10/100BASE-T) |
| Uplink Port | 2 RJ45 Connectors (10/100/1000BASE-T) |
| Supported Standards | IEEE 802.3af-2003 / IEEE 802.3at-2009 |
| PD Connection | Up to 8 IEEE 802.3af PDs or up to 2 IEEE 802.3at PDs |
| PSE Power | 140W |
| General | |
| Switching Capacity | 7.2Gbps |
| Memory | 256MB SDRAM, 32MB Flash |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Electrical | |
| Power Input | 100-240V~, 50/60Hz, 2.0-1.0A, 160W |
| Power Consumption | 160W |
| Approval | FCC, CE, KC, UL, CB |
| Mechanical | |
| Dimensions (W x H x D) | 430mm x 44mm x 180mm (17.0" x 1.7" x 7.1") |
| Weight | 2.05Kg (4.52lb) |
