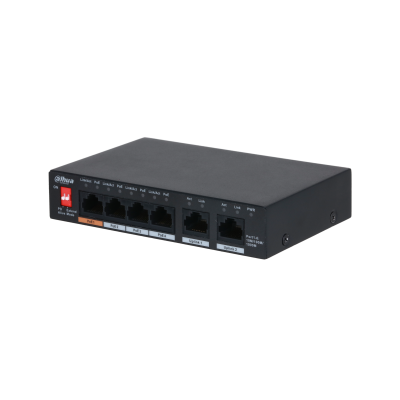

DAHUA 6-PORT UNMANAGED GIGABIT DESKTOP SWITCH WITH 4-PORT POE, 2 UPLINK GIGABIT PORTS,60W, - DH-PFS3006-4GT-60-V2
SKU
380252
Brand
MPN
DH-PFS3006-4GT-60-V2
Warranty
Standard Manufacturer's Warranty
$123.00
Buy Now And Earn 123 Reward Points!
6-Port Unmanaged Desktop Switch with 4-Port PoE
* The parameters and datasheets below can only be applied to V2.0 (version 2.0)
> Intelligent PoE
> Hi-PoE 60W (orange port)
> Long distance PoE
> PoE watchdog
> All-giga ports
> Wide working temperature
| Ethernet Port | Port1-4: 4 × RJ-45 10/100/1000M (PoE)Port5-6: 2 × RJ-45 10/100/1000M (uplink) |
| PoE Power Consumption | Port1≤ 60 W (Hi-PoE)Port2-4 ≤30 WTotal≤60 W |
| Power Consumption | Idling: 0.96 WFull load: 60 W |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
| PoE Protocol | IEEE802.3af/ IEEE802.3at/ Hi-PoE |
| Power Supply Pin | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance | 250 m long distance PoE transmission |
| PoE Power Management | Yes |
| PoE Watchdog | Yes |
| Switching Capacity | 14 Gbps |
| Packet Forwarding Rate | 8.928 Mbps |
| Packet Buffer Memory | 1 Mbit |
| MAC Address Table | 2 K |
| Flow Control | Enable by default |
| Working Temperature | –10 °C to 55 °C (+14°F to +131°F) |
| Application Humidity | 5%–95% (RH) |
| Power Input | 48 V - 57 V DC |
| Lighting Protection | Common mode: 4 kVDifferential mode: 2 kV |
| ESD Protection | Air discharge: 8 kVContact discharge: 6 kV |
| Wall-mount Installation | Yes |
| Anti-theft Lock Hole | Yes |
| Weight | 0.30 kg (0.64 lb) |
| Dimension | 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02") |
