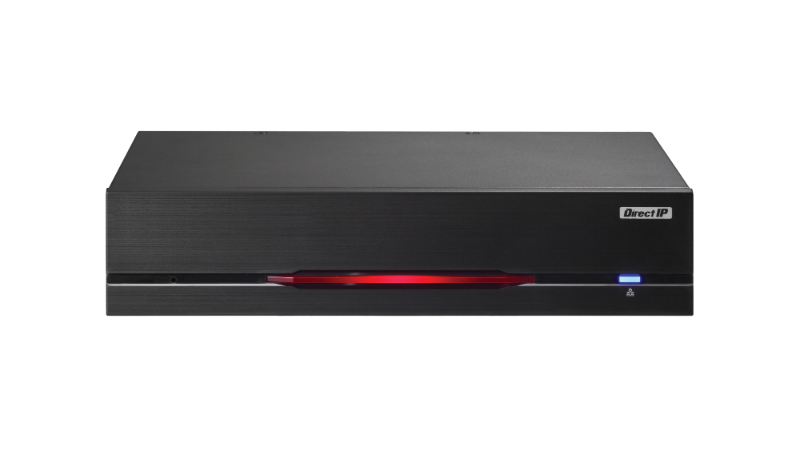

IDIS HDMI/VGA 4K VIDEO ENCODER DP-HE1201
SKU
407228
Brand
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$475.00
Buy Now And Earn 475 Reward Points!
- Ease integration with 3rd party system
- Supports HDMI and VGA input ports
- Remote Mouse and Keyboard Control through USB interface
- Quadruple Streaming
- Supports 3840 x 2160 resolutions
| Video | |
| Video Inputs | 1 HDMI, 1 VGA |
| Max. Resolution | 3840 x 2160 |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Max. Frame Rate | 30ips : 3840 x 2160 |
| Supported Resolution | 3840x2160, 1920x1080, 1280x720, 704x480, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Ethernet | RJ45 (10/100BASE-T) |
| Edge Storage | - |
| Alarm and Event | |
| Trigger Event | Motion Detection, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Interface | |
| Audio In / Out | 1 / 1 |
| USB | 1 USB type B (Remote mouse and keyboard control) |
| Environmental | |
| Operating Temperature | 0°C ~ +40°C (32°F ~ +104°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE (IEEE 802.3af Class 3) |
| Power Consumption | 12V= 0.95A, 11.4W PoE, IEEE 802.3af(Class 3) |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 200mm x 44mm x 152.3mm (7.9" x 1.7" x 6.0") |
| Weight | 0.8kg (1.76lb) |
