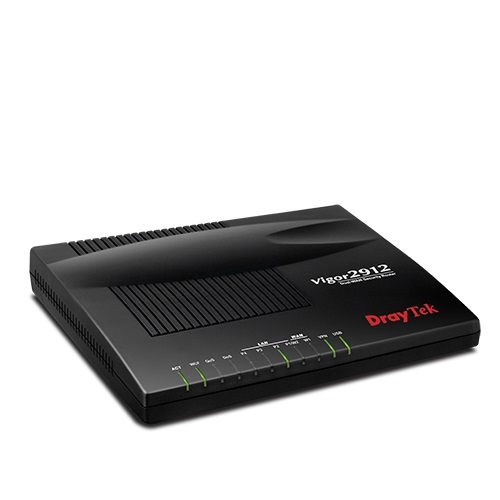

Vigor2912 SeriesDual WAN

Flexibility to choose different Internet feeds and load-balance and redundancy

• Dual WAN load-balance and redundancy (broadband)
• USB 2.0 port as WAN 3 (3G/4G USB mobile broadband)
• Object-based firewall with Web Content Filtering
• Bandwidth management with intelligent VoIP Qos
• 16 VPN tunnels with VPN failover (backup)
• TR-069 Central Management via the VigorACS SI
• Support IPv6 and IPv4 networks
• Smart Monitor Traffic Analyzer (Up to 30 nodes)
• 802.11n wireless LAN

About

The Vigor2912 Series designed for the small office applications helps your businesses achieve the goals of business growth, innovation and responsiveness.

This ideal VPN/firewall router replaces the simple Wi-Fi router offered by ISPs. The dual WAN load-balance and redundancy ensures your office to stay connected. The network security is realized by robust firewall and Web Content Filtering. All your subscribed bandwidth can be smoothly allocated to the essential applications (e.g. VoIP) by the advanced QoS.

The VPN tunnels cover the needs of the inter-office / remote access via multiple protocols. The secure Wi-Fi network enables the office environment ready for the trend of BYOD (Bring Your Own Device) to enhance the productivity. At last but not least, the Vigor2912 Series supports the IPv6 for the seamless migration.

WAN Feature

• Ethernet
  • IPv4-  DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1p/q Multi-VLAN Tagging
  • IPv6- Tunnel Mode: PPP, TSPC, AICCU, 6in4, 6rd
               Dual Stack:DHCPv6 Client, Static IPv6, DSLite*
  • USB WAN
    　
    • PPP
  • Outbound Policy-based Load-balance
  • WAN Connection Failover
  • 30,000 NAT Sessions

Firewall

• Multi-NAT, DMZ Host, Port-Redirection and Open Port
• Object-based Firewall
• MAC Address Filter
• SPI (Stateful Packet Inspection) (Flow Track)
• DoS Prevention
• IP Address Anti-spoofing
• E-mail Alert and Logging via Syslog
• Bind IP to MAC Address
• Time Schedule Control
• IPv6 Firewall
• User Management

VPN

• Up to 16 VPN Tunnels
• Protocol : PPTP, IPSec, L2TP, L2TP over IPSec
• Encryption : MPPE and Hardware-based AES/DES/3DES
• Authentication : MD5, SHA-1
• IKE Authentication : Pre-shared key and Digital Signature (X.509)
• LAN-to-LAN, Host-to-LAN
• IPsec NAT-traversal (NAT-T)
• Dead Peer Detection (DPD)
• VPN Backup Mode
• DHCP over IPSec
• VPN Pass-through
• VPN Wizard
• mOTP

USB

• Printer Sharing
• File Sharing:
  • Support FAT32 File System
  • Support FTP Function for File Sharing
  • Support Samba for File Sharing
• 3.5G (HSDPA)/4G (LTE)* as WAN3

Bandwidth Management

• QoS :
  • Guarantee Bandwidth for VoIP (VoIP Qos)
  • Class-based Bandwidth Guarantee by User-defined Traffic Categories
  • DiffServ Code Point Classifying
  • 4-level Priority for Each Direction (Inbound/Outbound)
  • Bandwidth Borrowed
• Bandwidth/Session Limitation
• Layer-3 (TOS/DSCP) QoS Mapping

• Smart Bandwidth Limitation (Triggered by Traffic/Session)

Network Management

• Web-based User Interface (HTTP/HTTPS)
• Quick Start Wizard
• CLI (Command Line Interface, Telnet/SSH)
• Administration Access Control
• Configuration Backup/Restore
• Built-in Diagnostic Function
• Firmware Upgrade via TFTP/FTP/HTTP/TR-069
• Logging via Syslog
• SNMP V2/V3
• Management Session Time Out
• Two-level Management (Admin/User Mode)
• External Device
• TR-069
• Support Smart Monitor (Up to 30 PCs)

Content Security Management

• IM/P2P Application
• URL Content Filter :
  • URL Keyword Blocking (White List and Black List)
  • Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
  • Excepting Subnets
• GlobalView Web Content Filter (Powered by )

Network Features

• DHCP Client/Relay/Server
• RADVD for IPv6
• DHCPv6 Server
• Static IPv6 Address Configuration
• IGMP Proxy V2/V3
• IGMP Snooping
• Dynamic DNS
• NTP Client
• RADIUS Client
• DNS Cache/Proxy
• UPnP 30 Sessions
• Routing Protocol:
  • Static Routing
  • RIP V2
• VLAN Tagging(802.1q) on LAN*

System Maintenance

• Support Config Converter from Vigor2910 v3.2.5.3

Wireless AP ( Vigor2912n Only )

• IEEE802.11n Compliant (2.4GHz)
• Wireless Client List
• Wireless Isolation
• Wireless Security
  • WEP 64/128 bit
  • WPA-TKIP/WPA2-AES/Mixed(WPA+WPA2)
  • 802.1x Authentication
• Hidden SSID
• Multiple SSID
• Wireless MAC Address Filter
• Access Point Discovery
• WDS (Wireless Distribution System)
• SSID VLAN Grouping with LAN Port
• Wireless Rate-control
• WMM
• WPS
