Draytek Vigor 3220n Quad Gigabit Broadband Firewall Qos Ipv6 Router With 1 X Giga Lan 100 X Vpns 50 X
No Longer Available
QUICK OVERVIEW
Vigor 3220n
GbE. WAN
X
GbE. LAN
X
USB
1xUSB 2.0 & 1xUSB 3.0
VPN
100 Tunnels
SSL VPN
50 Tunnels
Console Port
X
Wireless
802.11n (2.4 GHz)
- Supports two Gigabit Ethernet WAN Ports with selectable SFP Socket for WAN1
- USB 3G/4G/LTE USB modem can also be added
- Wireless Management of up to 30 DrayTek Aps
- IPv6/IPv4 Dual-Stack
- DrayOS Operating System
- High performance - up to 500Mb/s firewall throughput
- DrayTek Firewall with huge flexibility
- High Availability (Hardware failover)
- Hardware DMZ (LAN) RJ-45 Port
- Conditional User Management
- Multiple Private LAN Subnets
- SMS (Text Message) Alert
- VLANs (802.1q tag-based)
- IGMP v3 MultiCast
- Content Filtering (by keyword, data type or category)
- LDAP Integration for VPN and user access
- QoS (Layer 2&3, 802.1p & TOS/DCSP)
- Up to 100 VPN tunnels for LAN-to-LAN or teleworkers
- VPN Trunk/Backup to remote sites
- SSL VPN - Tunnel or Proxy (50 users)
Quad-WAN: 4 x Gigabit Ethernet WAN ports
2 x USB ports (1 x USB 2.0, 1 x USB 3.0)

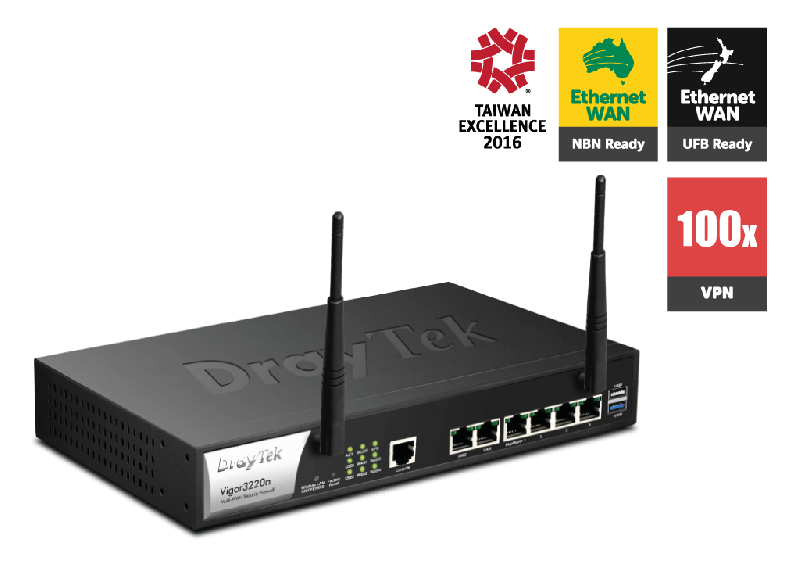

The Vigor3220n Quad-WAN security Firewall router is an enterprise level router suitable for any medium-sized business (SMB) that need to provide up to 100 VPN tunnels.
The Vigor3220n router supports 4 x Gigabit Ethernet WAN interfaces and 2 x USB ports for 3G/4G mobile dongles.
The Vigor3220n can connect to the Internet through any of these interfaces, or with a combination of interfaces for Load Balance and/or Failover functions. It supports business features including an object-oriented SPI (Stateful Packet Inspection) firewall, IPv6, 100 VPN tunnels, 50 SSL VPN tunnels, tag-based VLAN, multiple subnets, etc.
The dedicated DMZ port can be used to connect servers or computers that need to be exposed to the Internet without compromising internal LAN security.
The Centralised network management features provide a convenient console for the network administrator. These features include Central VPN Management, Central Switch Management, and Central AP Management.
The Vigor3220n series router can be rack mounted, using the supplied mounting brackets, into a standard 19” rack or cabinet.
Ethernet WAN
IPv4
DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1q Multi-VLAN Tagging
IPv6
Tunnel Mode: TSPC, AICCU, 6rd, Static 6in4
Dual Stack: PPP, DHCPv6 Client, Static IPv6
WAN Connection Failover
WAN Budget
Load Balance/Route Policy
Ethernet LAN
IPv4/IPv6 DHCP Server
Static Routing/RIP
Multiple Subnets
Port/Tag-based VLAN
USB
3.5G/4G LTE(PPP, DHCP) as WAN5/ WAN6
Printer Server/File Sharing
System Maintenance
HTTP/HTTPS with 2-level Management (Admin/User)
Logging via Syslog
SNMP Management MIB-II (v2/v3)
CLI (Command Line Interface, Telnet/SSH)
Administration Access Control
Web-based Diagnostic Functionality
Firmware Upgrade via TFTP/FTP/HTTP/TR-069
CWMP Support (TR-069/TR-104)
LAN Port Monitoring
Network Management
Bandwidth Management by Session/Ban
2 x USB ports (1 x USB 2.0, 1 x USB 3.0)
