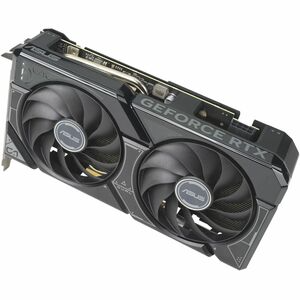

Asus NVIDIA GeForce RTX 4060 Ti Graphic Card - 8 GB GDDR6 - 7680 x 4320 - 2.60 GHz Boost Clock - 128 bit Bus Width - PCI Express 4.0 - DisplayPort - 3 x DisplayPort - HDMI DUAL-RTX4060TI-O8G-SSD
No Longer Available
Asus NVIDIA GeForce RTX 4060 Ti Graphic Card - 8 GB GDDR6 - 7680 x 4320 - 2.60 GHz Boost Clock - 128 bit Bus Width - PCI Express 4.0 - DisplayPort - 3 x DisplayPort - HDMI
ASUS Dual GeForce RTX™ 4060 Ti SSD OC Edition 8GB GDDR6 is designed for broad compatibility, with an M.2 SSD slot, 2.5-slot design, Axial-tech fan design, 0dB technology, and more
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- OC edition: Boost Clock 2595 MHz (OC Mode)/ 2565 MHz (Default Mode)
- The built-in M.2 slot boasts PCIe Gen 5 speeds and effectively dissipates heat to the card's heatsink for cooler temperatures.
- M.2 Q-latch design enables tool-free installation and removal of M.2 SSDs.
- Axial-tech fan design features a smaller fan hub to increase airflow through the cooling array
- A2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- 0dB technology lets you enjoy light gaming in relative silence
- Protective backplate adds structural rigidity and vents to increase heat reliability
Compact, cooler, faster | Powerful Graphics and Storage, All in One
The ASUS Dual GeForce RTX™ 4060 Ti SSD graphics card takes compact gaming power and combines it with an all-new feature: a PCIe 4.0 M.2 slot integrated into the backside of the card, offering massive bandwidth for high-performance NVMe storage.
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
New Streaming Multiprocessors
- Up to 2x performance and power efficiency
Fourth-Gen Tensor Cores
- Up to 4x performance with DLSS 3 vs. brute-force rendering
Third-Gen RT Cores
- Up to 2x ray tracing performance
Built-in M.2 Slot
The backside of this graphics card integrates an M.2 slot capable of PCIe 5.0 speeds, for high-performance NVMe storage devices up to 80 mm long-and the SSD transfers heat directly to the card's own heatsink using a thermal pad, resulting in a highly compact and tidy solution.
Axial-tech Fan Design | Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure, while the right fan operates at higher speeds to guarantee SSD heat dissipation
Auto-Extreme Technology | Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU TWEAK III | Monitor, tweak, and tuneThe ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
- Cost-efficient NVIDIA GeForce provides effective Blu-ray playback acceleration and great gaming experience
- Loaded with a power-efficient fan to dissipate heat and as a result, you get enduring usability
- 8 GB GDDR6 VRAM to hold highly-textured images and perform the rendering at super-fast speed
Platform Supported | PC |
Environmentally Friendly | Yes |
Power Supply Wattage | 650 W |
Power Connector | 1x 8-pin |
Standard Memory | 8 GB |
Memory Technology | GDDR6 |
Bus Width | 128 bit |
Host Interface | PCI Express 4.0 |
HDMI | Yes |
DisplayPort | Yes |
Number of DisplayPort Outputs | 3 |
Number of HDMI Outputs | 1 |
Form Factor | Plug-in Card |
Length | 227.2 mm |
Cooler Type | Fan Cooler |
Height | 49.6 mm |
Width | 123.2 mm |
Slot Space Required | Triple |
Chipset Manufacturer | NVIDIA |
Chipset Model | RTX 4060 Ti |
Chipset Line | GeForce |
Chipset Series | RTX |
GPU Boost Clock | 2.60 GHz |
API Supported | OpenGL 4.6 |
Features | Dual-fan Cooler |
Number of Monitors Supported | 4 |
Maximum Digital Display Resolution | 7680 x 4320 |
CUDA Cores | 4352 |
Product Type | Graphic Card |
Manufacturer Part Number | DUAL-RTX4060TI-O8G-SSD |
Manufacturer Website Address | http://www.asus.com/au |
Manufacturer | ASUS Computer International |
Product Model | DUAL-RTX4060TI-O8G-SSD |
Product Name | Dual GeForce RTX 4060 Ti SSD OC Edition 8GB GDDR6 Graphic Card |
Product Line | Dual |
Brand Name | Asus |
