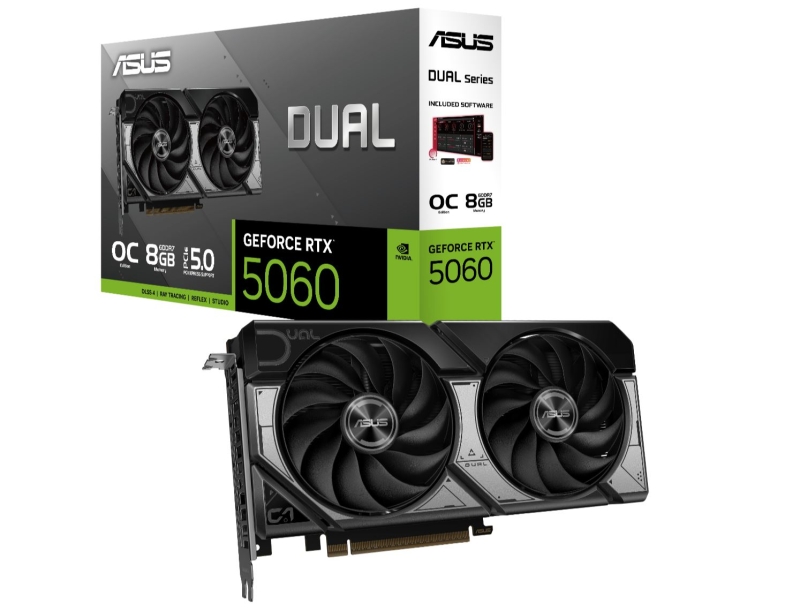

ASUS NVIDIA GeForce DUAL RTX™ 5060 8GB GDDR7 OC Edition

SPECIFICATION
Model
DUAL-RTX5060-O8G

Graphic Engine
NVIDIA® GeForce RTX™ 5060

AI Performance
614 TOPs

Bus Standard
PCI Express 5.0

OpenGL
OpenGL®4.6

Video Memory
8GB GDDR7

Engine Clock
OC mode: 2565MHz
Default mode: 2535MHz (Boost Clock)

CUDA Core
3840

Memory Speed
28 Gbps

Memory Interface
128-bit

Resolution
Digital Max Resolution 7680 x 4320

Interface
Yes x 1 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3)

Maximum Display Support
4

NVlink/ Crossfire Support
No

Accessories
1 x Speedsetup Manual
1 x Thank You Card

Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions
228 x 123 x 50 mm
8.98 x 4.84 x 1.97 inches

Recommended PSU
550W

Power Connectors
1 x 8-pin

Slot
2.5 Slot

Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All
