SECOR RESETTABLE EMERGENCY DOOR RELEASE GREEN WITH COVER 1YR DWS200GN-A
SKU
432726
Brand
MPN
DWS200GN-A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$40.00
Buy Now And Earn 40 Reward Points!

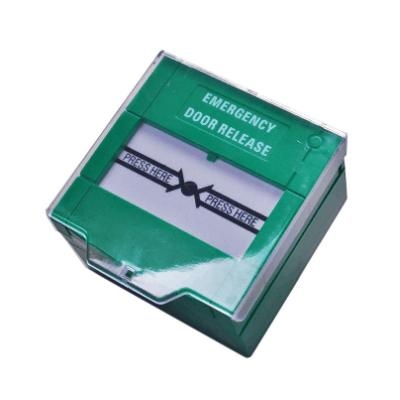

Resettable Emergency Door Release Switch with cover DWS200GN-A
- Glassless and resettable
- Detachable terminal - easy to wire
- Two separate SPDTs
- Plastic protecting cover available
- Available in White or green
| Contacts | 2 x NO and 2 x NC (all isolated) |
| Voltage (max) | 30VDC |
| Current (max) | 2A |
| Contact resistance | 50mΩ |
| Dimensions | 86mm(W) x 89mm(H) x 56mm(D) |
SECOR RESETTABLE EMERGENCY DOOR RELEASE GREEN WITH COVER 1YR
