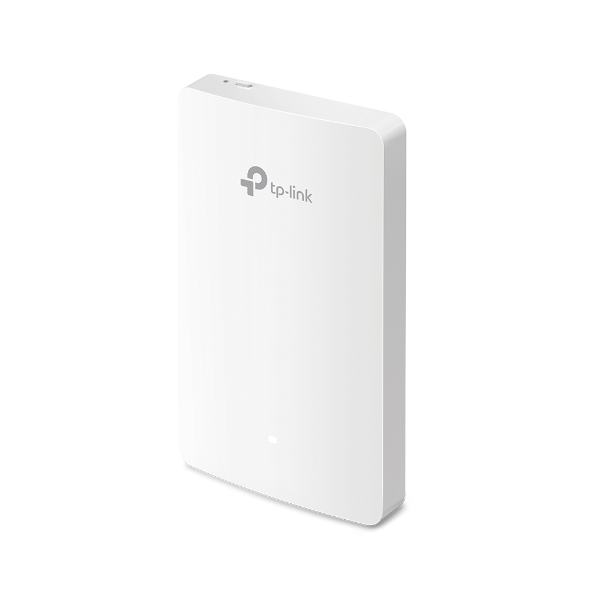

TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point (EAP235-Wall)

SKU
303138
Brand
Tp-link
Manufacturer Link
MPN
EAP235-Wall
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$105.00
Buy Now And Earn 105 Reward Points!
Add to Compare
HARDWARE FEATURES
Interface Uplink: 10/100/1000 Mbps Ethernet Port*1
Downlink: 10/100/1000 Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)

Physical Security Lock Yes
Button Reset
Power Supply 802.3af/802.3at PoE
Power Consumption 9.8 watts /24.4 watts (PoE Out Included)
Dimensions 143 × 86 × 20mm (5.6 × 3.4 × 0.8 in)
Antenna 2 Dual-Band Antennas
2.4GHz: 2*4dBi
5GHz: 2*4dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Wireless Functions 16 SSIDs（Up to 8 SSIDs on each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Band Steering
Beamforming
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power • CE:
≤20 dBm (2.4 GHz, EIRP)
≤23 dBm (5 GHz, EIRP)

• FCC:
≤21 dBm (2.4 GHz)
≤21 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
