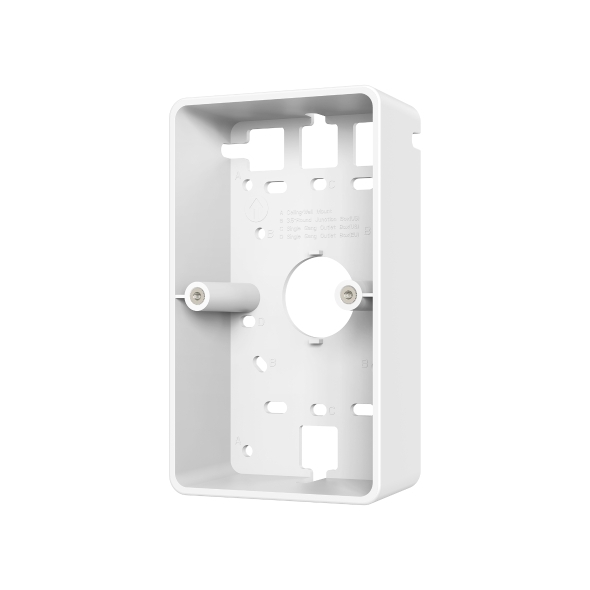

TP-Link Ojb-100 Omada Wall Plate Access Point Junction Box *Compatible Ap Models: EAP775-Wall, EAP725-Wall, Festa F65-Wall, EAP655-Wall, EAP615-Wall
• Enables related Omada and Festa wall plate APs to be installed directly on bare walls, bringing lower pre-deployment costs and complexity*
• Ideal for installations without a reserved junction box, incompatible box sizes, or where network cables are not pre-installed in the wall
• Dimensions: 5.6 × 3.3 × 1.6 in (143 × 84.3 × 40mm)
*Compatible AP Models: EAP775-Wall, EAP725-Wall, Festa F65-Wall, EAP655-Wall, and EAP615-Wall
Warranty Period: 3-Year

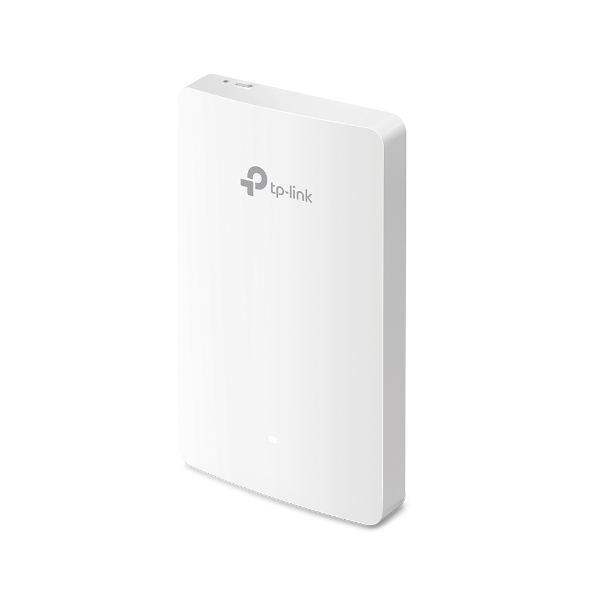

HARDWARE FEATURES
Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The
PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE
pass-through is 13 W (EU version) or 12 W (US version), based on laboratory
testing.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE
Power Consumption EU: 10W (802.3at PoE, PoE Out off)
US: 11.5W (802.3at PoE, PoE Out off)
Dimensions 143 × 86 × 20 mm
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
