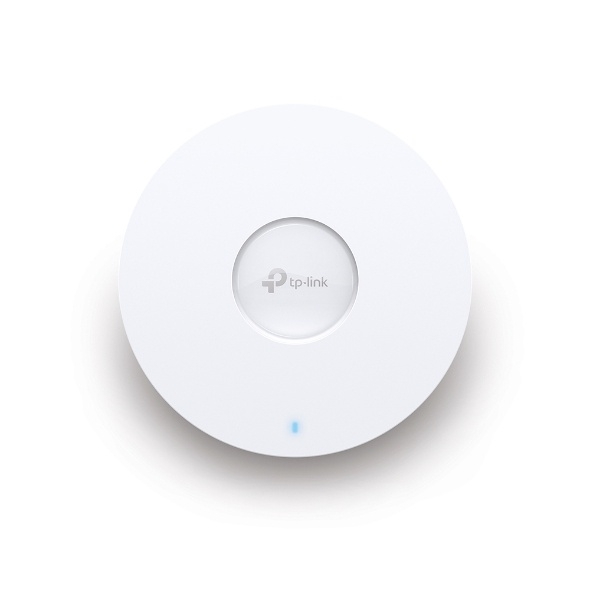

Tp-Link Omada AX3000 Wi-Fi 6 Dual-Band Ceiling Access Point, Poe+, 3YR EAP653

Name: Tp-Link Omada AX3000 Wi-Fi 6 Dual-Band Ceiling Access Point, Poe+, 3YR EAP653
Brand: Tplink
SKU: 390490
Price: 186 AUD
Availability: InStock

SKU

390490

Brand

Tplink

Manufacturer Link

MPN

EAP653

Manufacturer Product Link

Warranty

Standard Manufacturer's Warranty

Availability

In stock

Freight Estimate

$186.00

Buy Now And Earn 186 Reward Points!

Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.

High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.

160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.

Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.

Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.

PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.

Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.

HARDWARE FEATURES
Interface	1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button	Reset
Power Supply	EU: 48V Passive PoE or 802.3at PoE or 12V/1A DC US: 48V Passive PoE or 802.3at PoE or 12V/1.5A DC
Power Consumption	• EU: 13.07 W • US: 13.98 W
Dimensions ( W x D x H )	6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type	Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Mounting	• Ceiling /Wall Mounting (Kits included) • Junction Box Mounting

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 2402 Mbps^† • 2.4 GHz: Up to 574 Mbps^†
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)^‡ • Seamless Roaming ^§ • Omada Mesh^§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <27 dBm(5 GHz, Band3, EIRP) • FCC: <22 dBm (2.4 GHz) <22 dBm (5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• EAP653 • Ceiling/Wall Mounting Kits • Installation Guide Note: DC adapter is not included in the package, and is sold separately.
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
