MPN	9SXEBM36T
SKU	9SXEBM36T
UPC	743172091154
Type	Extended battery module
Brand	Eaton
Color	Black
Model	9SXEBM36T
Weight	19 kg
Category	Power and Rack Equipment
Warranty	2 year (manufacturer)
Dimensions	Depth: 387 mm Width: 160 mm Height: 252 mm

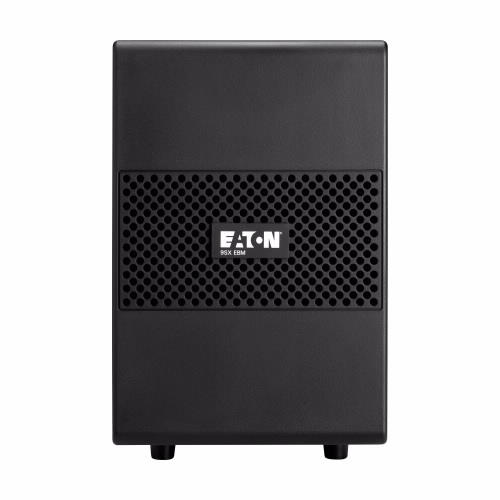

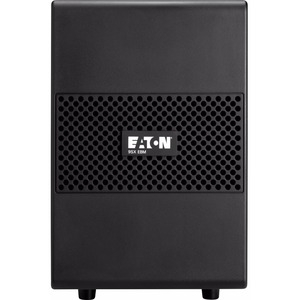

Description	The Eaton 9SX Extended Battery Module (EBM) 36V (model 9SXEBM36T) is a tower-format external battery pack that expands runtime for Eaton 9SX 1000VA UPS systems. The module contains six sealed lead-acid batteries (12 V / 9 Ah each) delivering a 36 V pack and supports hot-swappable, scalable runtime by connecting up to four EBMs in parallel. Designed as a free-standing tower unit in black, it includes the EBM power cable, EBM detection cable and a Quickstart guide. Certified to relevant safety and EMC standards and backed by a 2-year manufacturer warranty.
Form Factor	Tower / Free-standing
Battery Type	Sealed lead-acid (VRLA)
Sub-Category	Power Equipment
Compatibility	Eaton 9SX1000I Eaton 9SX1000IM Eaton 9SX1000B Eaton 9SX1000IB General: Eaton 9SX 1000 VA UPS
Product Title	Eaton 9SX Extended Battery Module 36V (9SXEBM36T) - Tower
Battery Voltage	36 V (nominal pack)
Battery Quantity	6
Construction Type	Free standing / Tower
Rack Mounting Kit	No
Units per Package	1
Included Accessories	EBM power cable EBM detection cable Quickstart guide
Alternate Part Numbers	9000-00352 FE9SXEBM36T
Battery Rating (per cell)	12 V / 9 Ah
Certifications and Compliances	IEC/EN 62040-1 IEC/EN 62040-2 UL 1778 CE cULus Listed EAC TUV CSA 22.2 FCC part 15 Class B CISPR22 Class B
Maximum External Modules Connectable	4
Additional Runtimes (reported examples)	At 500 W: approx. +40 minutes At 800 W: approx. +25 minutes

Eaton Eaton 9SX Tower EBM 36V (1kVA) is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: PW86366. Order online for Australia-wide delivery with local support.
