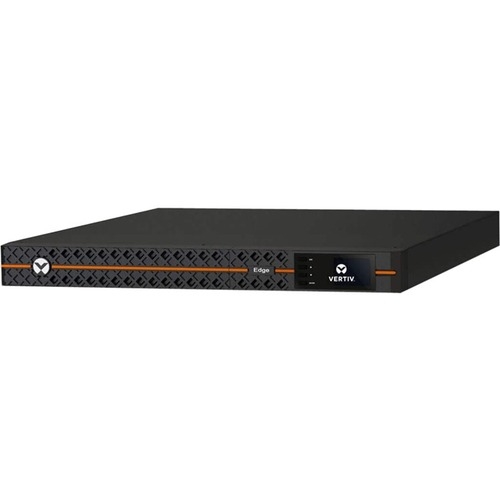

Vertiv Edge UPS - 1000VA 900W 230V 1U Line Interactive AVR Rack Mount | 0.9 PF - 1U Rack-mountable - EDGE-1000IRM1U
SKU
372507
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
QUICK OVERVIEW
AVR - 3 Hour Recharge - 5 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 6 x IEC 60320 C13
Reliable UPS Protection At The All-Important Network Edge
The network edge is becoming increasingly important as companies seek to take advantage of Internet of Things, cloud computing and other applications that require localized compute power, networking services and data storage - all with low latency. Distributed and edge data centers are now no less important to business success than large centralized data centers, so must be afforded similar power protection.
The Vertiv™ EDGE line interactive UPS family is intended for distributed IT and edge applications that require reliable, efficient power protection for server and networking equipment. It comes in mini-tower, rack tower and rack-mount form factors, with capacities ranging from 500VA to 3000VA. Each model has a 0.9 output power factor (PF), enabling them to protect larger loads than competing models of the same capacity.
Vertiv EDGE UPSs support up to 6 extended-run battery cabinets (EBCs), providing more runtime at full load than comparable competing UPSs. Auto-detect features make the EBCs easy to add and configure.
Vertiv EDGE UPSs are also highly manageable, with a colorful, graphical LCD screen for easy, intuitive on-site management, as well as optional SNMP support. Vertiv EDGE is compatible with the free Vertiv Power Assist software for local UPS status and shutdown of IT loads connected locally.
A standard 2-year warranty for both electronics and batteries protects your UPS investment.
The network edge is becoming increasingly important as companies seek to take advantage of Internet of Things, cloud computing and other applications that require localized compute power, networking services and data storage - all with low latency. Distributed and edge data centers are now no less important to business success than large centralized data centers, so must be afforded similar power protection.
The Vertiv™ EDGE line interactive UPS family is intended for distributed IT and edge applications that require reliable, efficient power protection for server and networking equipment. It comes in mini-tower, rack tower and rack-mount form factors, with capacities ranging from 500VA to 3000VA. Each model has a 0.9 output power factor (PF), enabling them to protect larger loads than competing models of the same capacity.
Vertiv EDGE UPSs support up to 6 extended-run battery cabinets (EBCs), providing more runtime at full load than comparable competing UPSs. Auto-detect features make the EBCs easy to add and configure.
Vertiv EDGE UPSs are also highly manageable, with a colorful, graphical LCD screen for easy, intuitive on-site management, as well as optional SNMP support. Vertiv EDGE is compatible with the free Vertiv Power Assist software for local UPS status and shutdown of IT loads connected locally.
A standard 2-year warranty for both electronics and batteries protects your UPS investment.
Guides & Documents
Controls/Indicators
Status Indicators |
LCD Display |
Management
Network Management | SNMP/Webcard |
Alarm | Yes |
Environmental Conditions
Sound Emission | 45 dB |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3 km |
Storage Temperature | -25°C - 55°C |
Miscellaneous
Software Included | Power Assist |
Country of Origin | China |
Environmentally Friendly | Yes |
TAA Compliant | No |
Energy Star | No |
Interfaces/Ports
USB | Yes |
VGA | No |
Network (RJ-45) | No |
Modem (RJ-11) | Yes |
Serial Port | No |
EPO Port | Yes |
USB (HID Compliant) Port | Yes |
Physical Characteristics
Weight (Approximate) | 17 kg |
Colour | Black |
Form Factor | Rack-mountable |
Rack Height | 1U |
Height | 44 mm |
Width | 438 mm |
Depth | 480 mm |
Power Description
Circuit Breaker | Yes |
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
240 V AC | |
208 V AC | |
220 V AC | |
200 V AC | |
Load Capacity | 1 kVA/900 W |
Surge Energy Rating | 624 J |
Waveform Type | Pure Sine Wave |
Input Frequency | 65 Hz |
General Information
Product Type | Line-interactive UPS |
Manufacturer Part Number | EDGE-1000IRM1U |
Manufacturer Website Address | http://www.vertiv.com/ |
Manufacturer | Vertiv |
Product Model | EDGE-1000IRM1U |
Product Name | EDGE-1000IRM1U 1kVA Rack-mountable UPS |
Product Line | EDGE |
Brand Name | VERTIV |
Battery Information
Battery Life | 5 Year |
Battery Chemistry | Lead Acid |
Hot Swappable | Yes |
Battery Size | 6V |
Battery Capacity | 9000 mAh |
Number of Batteries | 4 |
Backup/Run Time (Half Load) | 15 Minute |
Backup/Run Time (Full Load) | 5 Minute |
Battery Characteristics | Valve-regulated, Non-spillable |
DC System Voltage | 24 V DC |
Typical Battery Recharge Time | 3 Hour |
Number of External Battery Cabinets | 6 |
Technical Information
Application/Usage | Network |
Critical System | |
Data Storage | |
Business | |
Edge Computing | |
Server | |
IOT Device | |
Data Center | |
Plug/Connector Type | IEC 60320 C14 |
Cord Length | 3 m |
Phase | Single Phase |
Receptacle Type | IEC 60320 C13 |
AVR | Yes |
Transfer Time | 4 ms |
Receptacle Detail | 6 x IEC 60320 C13 |
