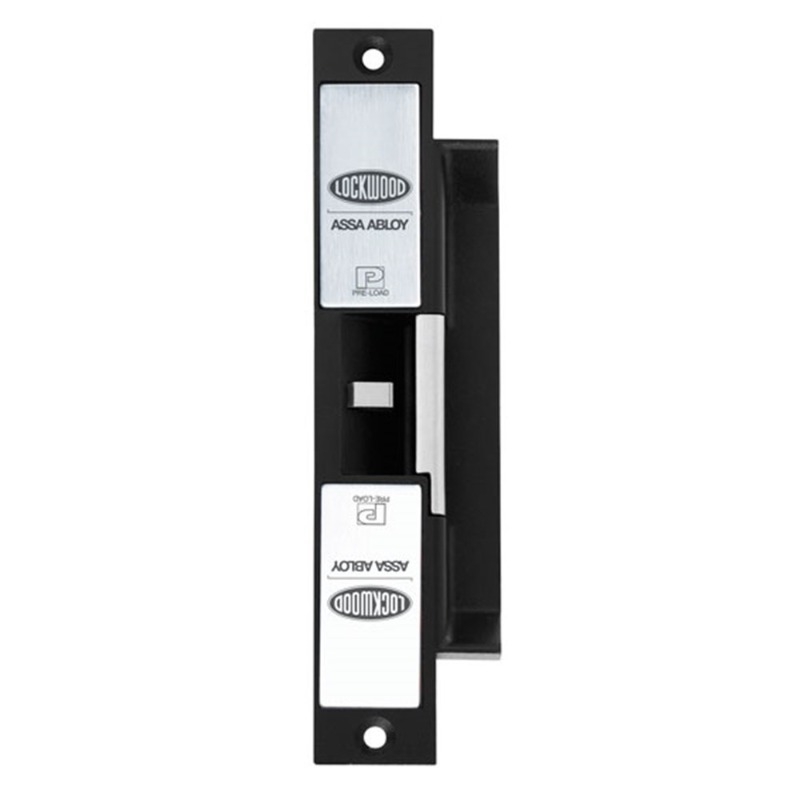

LOCKWOOD ES9000-060 ELECTRIC STRIKE 10-30VDC M/FUNCTION PRELOAD MON LIP HOLES IP54 5YR ES9000-060
The ES9000 has been designed to suit the harshest commercial environments, and has the unique feature of the ability to operate with up to 25kg of pre-load pressure on the keeper. Pre-load is a common condition that is caused by pulling on a door before it unlocks, the weight of warped or drooping doors, seals on fire doors, or by differential air pressure created when heating and cooling systems are in use.
Standard features include multi voltage 10 - 30Vdc and field changeable settings from fail safe to fail secure.
Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.
The ES9000-060 comes pre-drilled with lip holes so extension lips can be fitted where required.
| VOLTAGE | 10-30Vdc |
| CURRENT | 250mA @12Vdc - 130mA @24Vdc |
| SOLENOIDS | Solenoid rated for continuous use |
| ELECTRICAL PROTECTION | Polarity and back EMF protected |
| MONITORING | Solenoid Monitor - 1 amp NO/NC microswitch Door / Latch Monitor - 1 amp NO/NC microswitch |
| HOLDING FORCE | 1300kg static strength rating |
| ENDURANCE | 1,200,000 cycles endurance rating @ 25kg pre-load 2,500,000 cycles general durability without pre-load conditions |
| LATCHING | Suitable for 15mm latch with 3mm door gap |
| ENVIRONMENT | Operational temperature range - 20C to +60C |
| BODY | Solid Stainless Steel Construction |
| KEEPER | Stainless Steel |
| WARRANTY | TRICARE® 5 Year Warranty |
