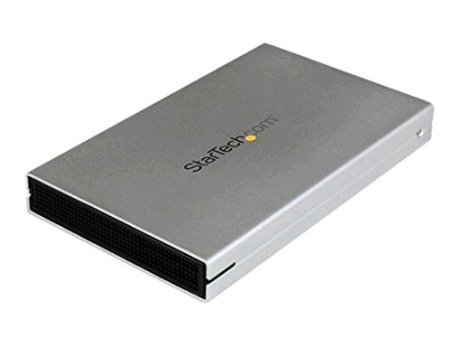

Startech Esatap/ Esatap Or Usb 3.0 External 2.5in Sata 3 Gbps Hard Drive/ Solid State Drive Enclosure

SKU
213576
Brand
Warranty
Standard Manufacturer's Warranty

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

QUICK OVERVIEW

WITH UASP/ TURNS A 2.5IN SATA HDD/ SDD INTO A eSATAp/ USB 3.0 PORTABLE DRIVE S251SMU33EP

Turn a 2.5" SATA III HDD / SSD into an external hard drive that can connect to your computer through either eSATAp at 6 Gbps, or USB 3.0 with UASP at 5 Gbps. The S251SMU33EP USB 3.0 / eSATAp drive enclosure turns a 2.5in SATA hard drive (HDD) or solid state drive (SSD) into an external portable hard drive that can connect to any USB or eSATA-enabled computer system.

For fast performance and efficient data transfers when connected through eSATA, the enclosure supports full SATA III transfer speeds -- up to 6 Gbps. For universal compatibility, the S251SMU33EP can be connected through USB 3.0 with transfer speeds up 5 Gbps plus support for UASP, which delivers performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.

Designed for maximum portability, the S251SMU33EP doesn't require an external power adapter when connected to an eSATAp (USB + eSATA combo) host port.

The 2.5in enclosure supports the fastest drive technologies including SATA III (6 Gbps), hybrid drives and solid state drives (SSD), saving you time by ensuring you're getting the most out of your drive performance.

To ensure compatibility with your computer system, the S251SMU33EP supports all of the leading operating systems, including: Microsoft Windows®, Apple® OSX, Linux, and Google Chrome OS™.

The S251SMU33EP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

Brand
StarTech
Model
S251SMU33EP

Details

Color
Silver
Type
others
Material
Aluminum
Internal Interface
SATA I/II/III
External Interface
eSATAp

Features

Features
Turn a 2.5” SATA III HDD / SSD into an external hard drive that can connect to your computer through either eSATAp at 6 Gbps, or USB 3.0 with UASP at 5 Gbps

Compatible with USB 3.0 & eSATA/eSATAp computer systems, and 2.5in hard drives (HDD) and solid state drives (SSD)

USB 3.0 Hard Drive Enclosure / USB 3.0 External Hard Drive Enclosure / eSATA Hard Drive Enclosure / USB 3.0 SATA Enclosure -Take advantage of laptops and desktops that feature eSATA connectivity

Dimensions & Weight

Dimensions
Height:0.6" x Width:3" x Depth:4.9"
Weight
3.39 oz

Package Contents

Package Contents
USB 3.0/eSATAp 2.5" SATA Hard Drive Enclosure
1 x USB 3.0 Cable
1 x eSATA Cable
1 x Installation Screws (with Screw Driver)
1 x Phillips Head Screw Driver
1 x USB to DC power Adapter
1 x Instruction Manual

Plug Standards

Electrical Outlet Plug Type
Plug Type “A” (USA, Canada, Mexico, Japan)
Connector(s)
Drive ConnectorsSATA Data & Power Combo (7+15 pin) Receptacle
Host ConnectorsPower eSATA (11 pin, eSATA/USB, 5V) Receptacle
USB 3.0 Micro-B (10 pin, SuperSpeed) Female
Environmental
HumidityOperation Humidity: 10% ~ 90% RH
Storage Humidity: 5% ~ 95% RH
Operating Temperature0?C to 40?C (32?F to 104?F)
Storage Temperature-10?C to 65?C (14?F to 149?F)
Hardware
Bus TypeUSB 3.0 & eSATA
Chipset IDASMedia - ASM1153E
ASMedia - ASM1456
Compatible Drive TypesSATA
Drive InstallationFixed
Drive Size2.5in
Fan(s)No
InterfaceeSATA
USB 3.0
USB 3.0 & eSATA
Number of 2.5 inch bays1
Number of Drives1
Indicators
LED IndicatorsPower/Activity
Packaging Information
Shipping (Package) Weight0.3 kg [0.6 lb]
Performance
4Kn SupportYes
Max Drive CapacityCurrently tested with up to 2TB 7200 RPM hard drives
Maximum Data Transfer Rate6 Gbps - eSATA
5 Gbps - USB 3.0
TRIM SupportYes
Type and RateeSATA (6 Gbps)
USB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
ColorSilver
Enclosure TypeAluminum and Plastic
Max Drive Height9.5 mm [0.4 in]
Product Height16 mm [0.6 in]
Product Length125 mm [4.9 in]
Product Weight96 g [3.4 oz]
Product Width77 mm [3 in]
Power
Plug TypeH
Power SourceUSB-Powered
Software
OS CompatibilityOS independent; No software or drivers required
What's in the Box
Included in PackageeSATA cable
Installation screws (with screw driver)
Instruction manual
Phillips head screw driver
USB 3.0 Cable
USB 3.0/eSATAp 2.5" SATA Hard Drive Enclosure
USB to DC power adapter

The S251SMU33EP USB 3.0 / eSATAp drive enclosure turns a 2.5in SATA hard drive (HDD) or solid state drive (SSD) into an external portable hard drive that can connect to any USB or eSATA-enabled computer system.

For fast performance and efficient data transfers when connected through eSATA, the enclosure supports full SATA III transfer speeds -- up to 6 Gbps. For universal compatibility, the S251SMU33EP can be connected through USB 3.0 with transfer speeds up 5 Gbps plus support for UASP, which delivers performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.

Designed for maximum portability, the S251SMU33EP doesn't require an external power adapter when connected to an eSATAp (USB + eSATA combo) host port.

The 2.5in enclosure supports the fastest drive technologies including SATA III (6 Gbps), hybrid drives and solid state drives (SSD), saving you time by ensuring you're getting the most out of your drive performance.

To ensure compatibility with your computer system, the S251SMU33EP supports all of the leading operating systems, including: Microsoft Windows®, Apple® OSX, Linux, and Google Chrome OS™.

The S251SMU33EP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
