OPTEX DEAL FLIPX PROF PIR 15M 85 DEG / 24M 5 DEG GRADE II -5YRS QTY=12
SKU
428712
Brand
MPN
FLX-P-ST
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $485.00 Regular Price $558.00
Buy Now And Earn 485 Reward Points!
BUNDLED COMPONENTS INFO
| QTY | SKU | DESCRIPTION |
|---|---|---|

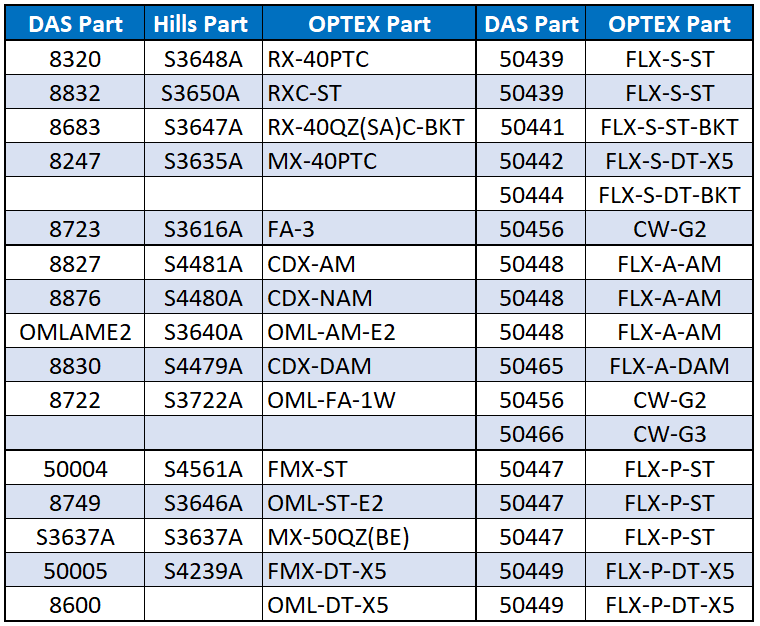

| 12 | FLX-P-ST | OPTEX FLIPX PRO PIR 15M 90 DEG GRADE II -5YRS REPLACES FMX-ST (S4561A) |
12 x Deal! FLX-P-ST 15m 85 degrees Wide or 18m 5 degrees Narrow PIR for everyday intrusion detection. Excludes optional wall/ceiling bracket CW-G2 (50456) Replaces FMX - ST (50004) FlipX is the indoor motion detector not only with a lot of highly evaluated features for existing indoor motion detectors but also with know-how obtained from our experiences of outdoor motion detector development. Features - Flip Lens - Pet Tolerance - Human-Catch Element - Easily viewable LED - Compliant to EN-Grade II
| Part Name | FLX-P-ST |
| Model | Professional |
| Mounting height | 2.0 to 3.0 m |
| Detection method | Passive infrared |
| PIR coverage | Wide: 15m 85°/ Narrow: 24m 5° |
| Alarm period | 2.0 ± 0.5 s |
| Warm up period | Approx. 60 s (LED blinks) |
| Power input | 9.5 to 16 VDC |
| Current draw | 8 mA (normal) 11 mA (max.) at 12 VDC |
| Trouble output | - |
| Alarm output | N.C. 24 V DC 0.1 A max. (Resistive load) |
| Tamper output | N.C. 24 V DC 0.1 A max. (Resistive load) (Open when the cover is removed) |
| Remote LED | - |
| Operating temperature | -20°C to +50°C |
| Temperature compensation | Digital (SMDA) |
| Environmental humidity | 95% RH max. |
| Mounting | Wall, Corner (Indoor) |
| Weight | 95g |
