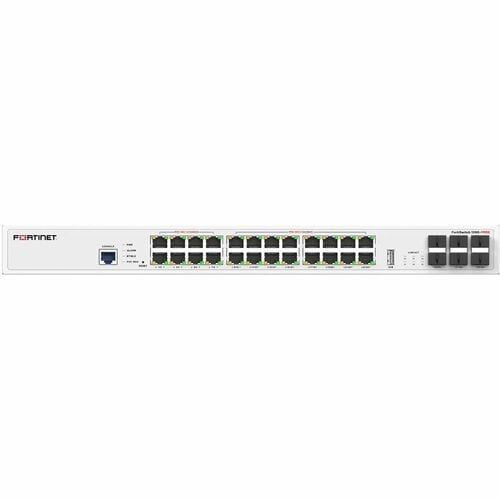

Fortinet FortiSwitch 124G-FPOE Layer 2 FortiGate switch controller compatible PoE switch with 24x 2.5G/1G/100M RJ45 ports - 8x 802.3bt (90W) PoE and 16x 802.3af/at (30W) PoE - and 6x 10G/1G SFP+/SFP ports, and 1x RJ45 console port. Max 780W PoE output li
Security, Ease of Use, and Scalability
The FortiSwitch Access Family is tailored to meet the unique demands of enterprise branch offices and small businesses. An unparalleled combination of security, ease of use, and scalability makes FortiSwitch the ideal choice for Ethernet infrastructure.
Managing a remote enterprise branch or small business network can be a challenging task due to various factors including a lack of visibility of connected devices, limited time and tools for LAN management, and a shortage of skilled personnel. The FortiSwitch Secure Access family seamlessly integrates Ethernet networking with advanced security features, effectively eliminating the silos that hinder day-to-day management. Feature-rich and easy to manage with a low total cost of ownership, FortiSwitch emerges as the optimal choice for remote enterprise-branch and small-businesses Ethernet networks.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| SFP+ | |
| Number of SFP+ Slots | 6 |
| Total Number of Expansion Slots | 6 |
| Technical Information | |
| Features | DHCP Snooping |
| Dynamic ARP Inspection | |
| Energy Efficient | |
| IP20 | |
| High Availability Supported | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 1 x RJ45 Console Port |
| 24 x 1/2.5 Gigabit Ethernet PoE RJ-45 Network Port | |
| 6 x 1/10 Gigabit Ethernet SFP Expansion Slot | |
| Miscellaneous | |
| Application/Usage | Infrastructure |
| Network | |
| Business | |
| Small Business | |
| Security | |
| Enterprise | |
| Physical Characteristics | |
| Weight (Approximate) | 4.86 kg |
| Form Factor | Rack-mountable |
| Height | 43.4 mm |
| Width | 439.4 mm |
| Depth | 309.9 mm |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | FS-124G-FPOE |
| Manufacturer Website Address | http://www.fortinet.com |
| Manufacturer | Fortinet, Inc |
| Product Model | FS-124G-FPOE |
| Product Name | FortiSwitch FS-124G-FPOE Ethernet Switch |
| Product Line | FortiSwitch |
| Brand Name | Fortinet |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| AC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 880 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 780 W |
| Media & Performance | |
| Network Technology | 2.5GBase-T |
| 1000Base-T | |
| 1000Base-X | |
| 10GBase-X | |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Ethernet Technology | Gigabit Ethernet |
| 2.5 Gigabit Ethernet | |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1Q |
| IEEE 802.1Qbb | |
| IEEE 802.1s | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.1p | |
| IEEE 802.1D | |
| IEEE 802.1AX | |
| IEEE 802.1ae | |
| IEEE 802.1ad | |
| IEEE 802.1ab | |
| IEEE 802.3z | |
| IEEE 802.3x | |
| IEEE 802.3bz | |
| IEEE 802.3bm | |
| IEEE 802.3bj | |
| IEEE 802.3ba | |
| IEEE 802.3az | |
| IEEE 802.3at | |
| IEEE 802.3af | |
| IEEE 802.3ae | |
| IEEE 802.3ad | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
