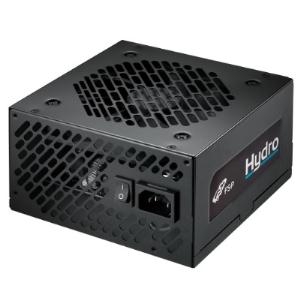

FSP HYDRO 500W OEM 80+ BRONZE PSU HD500OEM
SKU
221621
Brand
Warranty
1 Year Manufacturer's return to base
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
Wide input AC range
Input AC range from 160Vac to 280Vac, a reliable design for any unstable voltage condition.
Intelligent fan control
An advanced fan control design to detect heat and adjust fan speed for optimal cooling performance.
Low noise
120mm fan and special vent hole design to spin quietly and keep cooling under maximum operation.
Sophisticated design
Ribbon cables (exclude MB 20+4 Pin) give any systems a neat and polished look.
Easy Installation
20+4 pin comes with length of 450mm to connect MB easily, and ribbon cables give you a hand to face mess cables in rear panel.
Low power consumption, high energy efficiency
Special design to place the bridge diodes among two EMI filters for low energy loss in Standby mode.
Performance
AC/DC
| AC Input | 200-240Vac~ 4A 50-60Hz | ||||
| DC Output | +3.3 | +5 | 12V | -12 | +5Vsb |
| Max Output Current | 20A | 20A | 38A | 0.5A | 2.5A |
| Max Combined Power | 110W | 456W | 6W | 12.5W | |
| Total Power | 500W | ||||
FSP HYDRO 500W OEM 80+ 230V EU BRONZE POWER SUPPLY UNIT 88% EFFICIENCY ATX 1 YEARS WARRANTY
by Fsp
Specifications
| Model | HD500 |
| Rated Output Power | 500W |
| Form Factor | ATX |
| 80 PLUS Certification | 230V Bronze |
| Input Voltage | 200-240Vac |
| Input Current | 4A |
| Input Frequency | 50-60 Hz |
| PFC | Active PFC (>0.9 typical) |
| Efficiency | 88% |
| Fan Type | 120mm Intelligent Silent Fan |
| Dimensions(L x W x H) | 150 × 150 × 86 mm |
| Weight | 1700g |
| Operation Temp. | 0~40°C |
| Protection | OCP/OVP/SCP/OPP |
| Marketing Text | FSP Hydro series is designed for the need of general gamers who need good performance at affordable prices. By 230V 80Plus bronze certification, its efficiency can be reached up to 88% at typical loading. |
| PI Date | Jun 2016 |
| Brand Name | FSP |
| Manufacturer Web Site | http://www.fsplifestyle.com |
| Product Type | Power Supply |
| Product Model | HD500 |
| Form Factor | ATX |
| Input Current | 4A |
| Input Frequency Range | 50 - 60Hz |
| Input Voltage | 200 - 240Volt |
| Output Power | 500Watt |
| Fan Size (mm) | 120mm |
| Other Features | * Fan Type: 120mm Intelligent Silent Fan |
| Depth (mm) | 150.0 |
| Height (mm) | 86.0 |
| Width (mm) | 150.0 |
| Weight (Kg) | 1.7 |
