Fujitsu Quad Port Gigabit Ethernet Server Adapter - Intel I350-t4 S26361-f4610-l504
SKU
246387
Brand
MPN
S26361-F4610-L504
Warranty
Standard Manufacturer's Warranty
$606.00
Buy Now And Earn 606 Reward Points!
DESCRIPTION

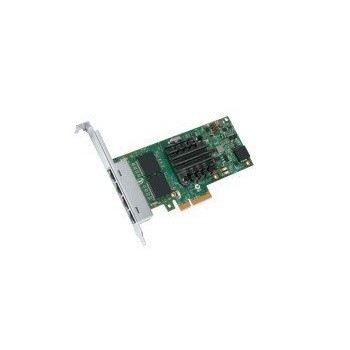

FUJITSU QUAD PORT GIGABIT ETHERNET SERVER ADAPTER - INTEL I350-T4
| SKU S26361-F4610-L504 | BRAND FUJITSU |
FUJITSU PLAN CP Intel I350-T4 - Network adapter - PCIe 2.1 x4 low profile - Gigabit Ethernet x 4 - for PRIMERGY CX2550 M1, RX2510 M2, RX2530 M2, RX2540 M2, RX4770 M3, TX1330 M2, TX2560 M2
| GENERAL | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 x4 |
| PCI Specification Revision | PCIe 2.1 |
| PROCESSOR / MEMORY | |
| Processor | 1 x I350-AM4 - Intel |
| EXPANSION / CONNECTIVITY | |
| Interfaces | 4 x 1000Base-T - RJ-45 |
| MISCELLANEOUS | |
| Included Accessories | Low-profile bracket, full-height bracket |
| POWER | |
| Power Consumption Operational | 5 Watt |
| ENVIRONMENTAL PARAMETERS | |
| Min Operating Temperature | 0 C |
| Max Operating Temperature | 55 C |
| COMPATIBILITY INFORMATION | |
| Designed For | Fujitsu PRIMERGY CX122 S1, CX250 S1, CX250 S2, CX2550 M1, CX2550 M1 Liquid Cooling, CX270 S1, CX270 S2, CX272 S1, RX100 S6, RX100 S7, RX100 S7p, RX100 S8, RX1330 M1, RX1330 M2, RX1330 M3, RX200 S6, RX200 S7, RX200 S8, RX2510 M2, RX2520 M1, RX2530 M1, RX2530 M1-L, RX2530 M2, RX2540 M1, RX2540 M1-L, RX2540 M2, RX2540 M2 Storage Spaces, RX2560 M1, RX300 S6, RX300 S7, RX300 S8, RX350 S7, RX350 S8, RX4770 M1, RX4770 M2, RX4770 M3, RX500 S7, RX600 S5, RX600 S6, RX900 S1, RX900 S2, SX150 S8 Universal Storage Server, SX350 S8 Universal Storage Server, TX120 S3, TX120 S3p, TX1320 M1, TX1320 M2, TX1320 M3, TX1330 M1, TX1330 M2, TX1330 M3, TX140 S1, TX140 S1p, TX140 S2, TX150 S7, TX150 S8, TX150 S8r, TX200 S6, TX200 S7, TX2540 M1, TX2560 M1, TX2560 M2, TX300 S6, TX300 S7, TX300 S8 |
| NETWORKING | |
| Ports | Gigabit Ethernet x 4 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Status Indicators | Port transmission speed, link/activity |
| Features | Flow control, auto-negotiation, VLAN support, wake on LAN (WOL), IPv6 support, Jumbo Frames support, Virtual Machine Device Queues (VMDq), IPv4 support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Link Aggregation Control Protocol (LACP), TCP Segmentation Offload (TSO), PXE 2.0 support, Extended Message-Signaled Interrupts (MSI-X), Precision Time Protocol (PTP) |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az |
